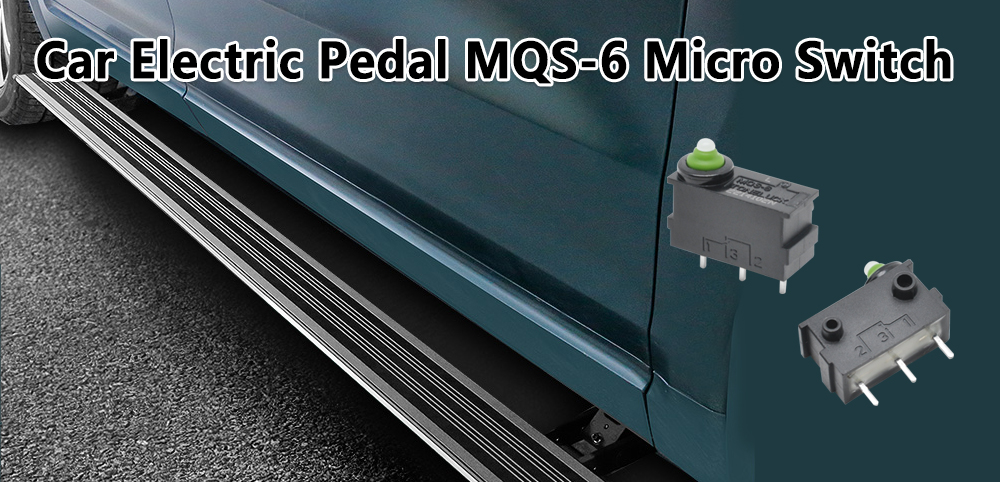

MQS-6 micro switch device for automotive electric pedals
The MQS-6 microswitch on a car’s electric pedal is a common sensor device used to detect the movement and position of the electric pedal. MQS-6 micro switch plays an important role in automotive electronic systems and is mainly used in throttle control systems. The MQS-6 micro switch is designed to be installed on the mechanical structure of the electric pedal to sense the motion status of the pedal. When the driver depresses or releases the electric pedal, the state of the micro switch changes accordingly.
MQS-6 micro switch has switch status, which is divided into open and closed. When the electric pedal is released, the MQS-6 micro switch may be closed; while when the electric pedal is depressed, the MQS-6 micro switch may be open. This status change can be used as an indication of throttle position.
The sensitivity design of the MQS-6 micro switch may affect the response speed of the electric pedal. By adjusting the sensitivity of the micro switch, the operation of the electric pedal can be made more flexible or smooth. Since the automotive environment may face harsh working conditions, such as humidity, temperature changes, etc., the MQS-6 microswitch on the automotive electric pedal usually needs to have a high degree of reliability and durability to ensure reliable operation for a long time.
The MQS-6 micro switch on the car’s electric pedal provides accurate feedback to the driver’s operation by providing the throttle position information required by the electronic system, which is crucial to ensuring vehicle safety, smooth driving and fuel efficiency.
MQS-6 micro switch to adjust electric pedal
The design of the MQS-6 micro switch can affect the sensitivity of the electric pedal. Different switch settings may result in changes in throttle response speed to meet the driver’s different needs for acceleration. The use of MQS-6 micro switches in electric pedal systems usually involves position sensing and control of electric pedals. The MQS-6 micro switch can be configured on the electric pedal to connect with the movement of the pedal. When the driver presses or releases the electric pedal, the state of the MQS-6 microswitch changes.
The MQS-6 micro switch is a mechanical switch whose state is usually open or closed. When the electric pedal is released, the MQS-6 micro switch may be closed; when the electric pedal is depressed, the MQS-6 micro switch may be open. This state change can be reflected in the output electrical signal of the micro switch.
The electrical signal generated by the MQS-6 microswitch is usually transmitted to the vehicle’s electronic control unit via wires or cables. This signal reflects the current status of the electric pedal, that is, the position of the pedal. After the vehicle’s ECU receives the signal from the MQS-6 micro switch, it will control the engine’s throttle opening based on this information. By adjusting the opening of the throttle, the vehicle’s power output can be adjusted, thereby affecting acceleration and speed.
The location and design of the MQS-6 microswitch can affect the sensitivity of the electric pedal. Adjusting the sensitivity of the micro switch can change the response speed of the pedal, making the driver feel more flexible or smooth when pressing or releasing the pedal.
The MQS-6 micro switch provides feedback signals for driver operations to the vehicle’s powertrain by providing position sensing and switch status in the electric pedal system. Through the coordinated work of micro switches, the vehicle system can adjust the engine’s power output to achieve accurate response to the driver’s operation.
MQS-6 micro switch to adjust electric pedal
The design of the MQS-6 micro switch can affect the sensitivity of the electric pedal. Different switch settings may result in changes in throttle response speed to meet the driver’s different needs for acceleration. The use of MQS-6 micro switches in electric pedal systems usually involves position sensing and control of electric pedals. The MQS-6 micro switch can be configured on the electric pedal to connect with the movement of the pedal. When the driver presses or releases the electric pedal, the state of the MQS-6 microswitch changes.
The MQS-6 micro switch is a mechanical switch whose state is usually open or closed. When the electric pedal is released, the MQS-6 micro switch may be closed; when the electric pedal is depressed, the MQS-6 micro switch may be open. This state change can be reflected in the output electrical signal of the micro switch.
The electrical signal generated by the MQS-6 microswitch is usually transmitted to the vehicle’s electronic control unit via wires or cables. This signal reflects the current status of the electric pedal, that is, the position of the pedal. After the vehicle’s ECU receives the signal from the MQS-6 micro switch, it will control the engine’s throttle opening based on this information. By adjusting the opening of the throttle, the vehicle’s power output can be adjusted, thereby affecting acceleration and speed.
The location and design of the MQS-6 microswitch can affect the sensitivity of the electric pedal. Adjusting the sensitivity of the micro switch can change the response speed of the pedal, making the driver feel more flexible or smooth when pressing or releasing the pedal.
The MQS-6 micro switch provides feedback signals for driver operations to the vehicle’s powertrain by providing position sensing and switch status in the electric pedal system. Through the coordinated work of micro switches, the vehicle system can adjust the engine’s power output to achieve accurate response to the driver’s operation.
Function of MQS-6 micro switch in car electric pedal
MQS-6 micro switch plays an important role in automobile electric pedals, mainly related to electric throttle system. The MQS-6 micro switch plays a key role in the car’s electric pedal. By sensing the position and status of the pedal, it provides a control signal, thereby affecting the vehicle’s acceleration and power output. This helps deliver a more responsive and precise driving experience and supports a range of vehicle system functions.
-
Throttle position sensing
The MQS-6 micro switch can be used to sense the position of the electric pedal. According to the degree of depression of the electric pedal, the micro switch will trigger the corresponding electrical signal and provide it to the vehicle electronic control unit or electric throttle control module. Throttle position sensing refers to the process of detecting and measuring the electric pedal position in a car’s electric pedal system. The process works by using sensors, of which microswitches are one possible sensor, to monitor the position of the electric pedal and pass the corresponding information to the vehicle’s electronic control unit.
The signal generated by the MQS-6 microswitch reflects the status of the electric pedal. This signal is usually a change in voltage, current or switch state. Through these signals, the vehicle’s ECU can obtain the current position information of the electric pedal. The signal generated by a microswitch may be mapped to a specific range, usually 0% to 100%. This range represents the position of the electric pedal, where 0% means the electric pedal is fully released, and 100% means the electric pedal is fully depressed.
The vehicle’s ECU uses the electric pedal position information obtained from the MQS-6 microswitch to control the engine’s power output. Different electric pedal positions may result in different acceleration and drive force output. By monitoring the electric pedal position in real time, the vehicle system can provide feedback to the driver or make some adjustments to the vehicle. For example, in some electric vehicles, the position of the electric pedal may be associated with specific functions such as brake energy recovery.
-
Throttle control signal
When the driver steps on the electric pedal, the MQS-6 micro switch can generate a corresponding electrical signal, which tells the vehicle’s control system to increase the opening of the electric throttle. This helps control the engine’s power output. The throttle control signal refers to an electrical signal generated by the accelerator pedal sensor. This signal is used to inform the vehicle’s electronic control unit or engine control module of the current position of the electric pedal, thereby adjusting the engine’s throttle opening and corresponding power output. The throttle control signal is usually generated by a sensor, including a microswitch or other type of sensor.
The sensor typically represents the position of the electric pedal by generating a voltage or current signal. The change in this signal reflects the degree of throttle depression, usually in the range of 0 to 5V or 0 to 12V.
The signal output by the sensor can be an analog signal or a digital signal. Analog signals often require analog-to-digital conversion in order to be digitized and passed on to the vehicle’s electronic systems.
-
Fault detection
The MQS-6 microswitch can also be used to detect faults in electric pedal systems. By monitoring the status of the microswitch, the vehicle system can identify if there is a fault with the electric pedal sensor or switch and provide a fault code if needed. Vehicle systems are also often equipped with fault detection mechanisms to monitor the status of micro switches. If a microswitch failure is detected, the system may generate a corresponding fault code and take appropriate safety measures.
Vehicle systems often have fault detection mechanisms to monitor the status of the throttle control signal sensor. If an anomaly is detected, the system may generate a corresponding fault code and may enter some kind of safe mode.
-
Start/stop function
In some advanced cars, the electric pedal’s microswitch may be associated with the start and stop functions. This signal may trigger the engine to start when the driver depresses the electric pedal, and may trigger the engine to stop when the electric pedal is released.
-
Energy saving mode switching
The car may be equipped with an energy-saving mode, which can sense the driver’s behavior through micro switches and switch to a more energy-saving driving mode, thus improving fuel economy.
