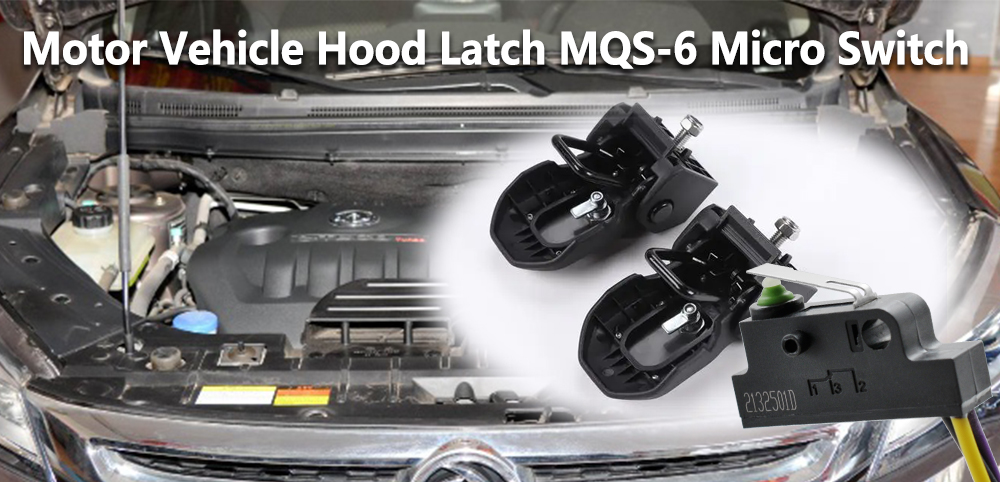

Application of Motor Vehicle Hood Latch MQS-6 micro switch
The application of Motor Vehicle Hood Latch MQS-6 micro switch in automobiles is mainly reflected in improving safety and convenience. From a safety point of view, the traditional car front hood lock has a purely mechanical locking structure. If the hood is not locked before opening, there will usually not be any alarm prompt on the car’s interior dashboard. This could result in driving the car with the hood unlocked, posing a significant safety risk. The application of Motor Vehicle Hood Latch MQS-6 micro switch solves this problem. When the hood is opened and the latch is unlocked, the MQS-6 micro switch will be turned on, and an alarm prompt will appear on the dashboard inside the car, thus effectively preventing the possible safety risks caused by driving the car without the hood locked. .
The vehicle’s hood MQS-6 micro switch is designed on the left side of the steering wheel. The driver only needs to press the switch button lightly, and the hood will pop up. The driver can then pull the latch under the hood to open the hood. This design makes the process of opening the hood easier and faster. The Motor Vehicle Hood Latch MQS-6 micro switch also assumes other important functions in the car. For example, in some models, when the hood is opened, the MQS-6 micro switch will automatically trigger to cut off the vehicle’s power supply. This prevents accidental starting of the engine or operation of electrical equipment with the hood open, thus avoiding potential safety risks.
The application of Motor Vehicle Hood Latch MQS-6 micro switch in automobiles not only improves the safety of the vehicle, but also improves the convenience of driving. With the continuous development of automotive technology, the applications of MQS-6 micro switches are constantly updated and optimized to adapt to more models and driving needs.
Structure of Motor Vehicle Hood Latch MQS-6 micro switch
The structure of the vehicle hood latch MQS-6 micro switch usually involves multiple key components to ensure its proper operation and reliability. The contact system is the core part of the MQS-6 micro switch and usually consists of one or more pairs of contacts. When a switch is triggered (for example, a vehicle’s hood latch is opened or closed), the contacts come into contact or separate from each other, changing the circuit’s on-off state.
The triggering mechanism is the part used to activate or release the contact system. In a vehicle hood latch MQS-6 micro switch, the triggering mechanism may be a lever or spring that moves and triggers the switch when the vehicle hood latch is opened or closed. The housing protects the switch’s internal components from dust, moisture, and other external factors. At the same time, the fixture ensures that the switch can be securely mounted on the vehicle to function reliably when needed. The spring and return mechanism assembly is used to ensure that the switch returns to its original position after being triggered. When the vehicle hood latch is closed, the spring and return mechanism push the trigger mechanism back into place, breaking the contacts and closing the circuit.
Working principle of Motor Vehicle Hood Latch MQS-6 micro switch
The working principle of the Motor Vehicle Hood Latch MQS-6 micro switch is mainly based on mechanical triggering mechanism and electronic signal transmission. The MQS-6 micro switch is usually installed somewhere on the vehicle hood latch and is closely connected to the latch mechanism. When the hood is closed, the locking mechanism moves to a specific position and triggers the MQS-6 micro switch. This triggering action will change the state of the internal contacts of the MQS-6 micro switch, usually causing the contacts to change from an open state to a closed state.
MQS-6 micro switches typically contain at least one pair of contacts inside that change state when mechanically triggered. When the contacts close, they connect the circuit, allowing current to pass through. This current change generates an electronic signal, which is then transmitted to the vehicle’s electronic control unit (ECU) or other related systems. After the ECU receives the signal from the MQS-6 micro switch, it will analyze the signal to determine the status of the hood (i.e., closed status).
Based on this information, the ECU may perform a series of operations, such as lighting up a certain indicator light on the dashboard or triggering other related systems.
When the hood is opened, the locking mechanism will return to its original position and release the MQS-6 micro switch. This will cause the contacts inside the MQS-6 micro switch to return to their original state (i.e. open state), thus cutting off the circuit. This stops sending signals to the ECU indicating that the hood is now open. The Motor Vehicle Hood Latch MQS-6 micro switch detects the closed or open status of the hood and transmits this information to the ECU in the form of an electronic signal, thereby monitoring and controlling the status of the vehicle hood.
What is the vehicle hood latch MQS-6 micro switch?
Vehicle hood latch MQS-6 micro switch is an electronic switching device used for automobile vehicle hood latch. When the hood is opened or closed, the locking mechanism triggers the MQS-6 microswitch, thereby changing the state of its internal contacts. This change in status further generates an electronic signal, which is then transmitted to the vehicle’s electronic control unit (ECU) or other related systems.
Specifically, the Motor Vehicle Hood Latch MQS-6 micro switch is usually installed near the Motor Vehicle Hood Latch mechanism to detect the closed state of the hood. When the hood is properly closed and locked in place, the latch mechanism triggers the MQS-6 microswitch, closing its internal contacts to complete a circuit. This closed circuit sends a signal to the ECU that the hood is closed and locked.
On the contrary, if the hood is not closed correctly or the locking mechanism does not trigger the MQS-6 micro switch, the contacts of the MQS-6 micro switch will remain open and no circuit will be formed. At this time, the ECU will not receive a signal that the hood is closed, and may trigger a warning light or sound an audible alarm to remind the driver that the hood is not closed properly.
The presence of the Motor Vehicle Hood Latch MQS-6 micro switch improves the safety of the car, as it ensures that the vehicle cannot be started or perform other potentially dangerous operations without the hood being properly closed. At the same time, it also provides a convenient feedback mechanism so that the driver can quickly understand the closed status of the hood.
Benefits of using MQS-6 micro switches in vehicle hood latch
The use of MQS-6 micro switches in Motor Vehicle Hood Latchs brings multiple benefits. The MQS-6 micro switch in Motor Vehicle Hood Latchs can effectively prevent the safety risks of driving the car without the hood locked. When the hood is opened and the latch is unlocked, the MQS-6 micro switch will be turned on, and an alarm will appear on the dashboard inside the car to prevent the driver from starting the car without the hood being locked.
The model’s hood MQS-6 micro switch is designed on the left side of the steering wheel. The driver only needs to press it lightly to make the hood pop up. The hood can be opened by further pulling the lock under the hood. This design greatly improves the convenience of operation. The MQS-6 micro switch is small in size and light in weight, making it very convenient to install on the car without taking up too much space. At the same time, they have the characteristics of small contact gap and action stroke, and can quickly switch on and off the circuit and complete the corresponding functions after receiving the signal from the control system on the car.
The MQS-6 micro switch has high sensitivity and reliability and can be optimized according to the actual conditions of different car brands so that the details of the switch match the details of car manufacturing. At the same time, due to the high design accuracy of the MQS-6 micro switch, even when sold in batches, the price is relatively low and has a high cost performance. The MQS-6 micro switch has strong sealing and is waterproof and dustproof. This ensures that even when driving in rainy or humid environments, the normal operation of the MQS-6 micro switch will not be affected. The use of MQS-6 micro switches in Motor Vehicle Hood Latchs not only improves the safety and convenience of the car, but also optimizes the performance of the car, making the car more in line with the needs of modern driving.
