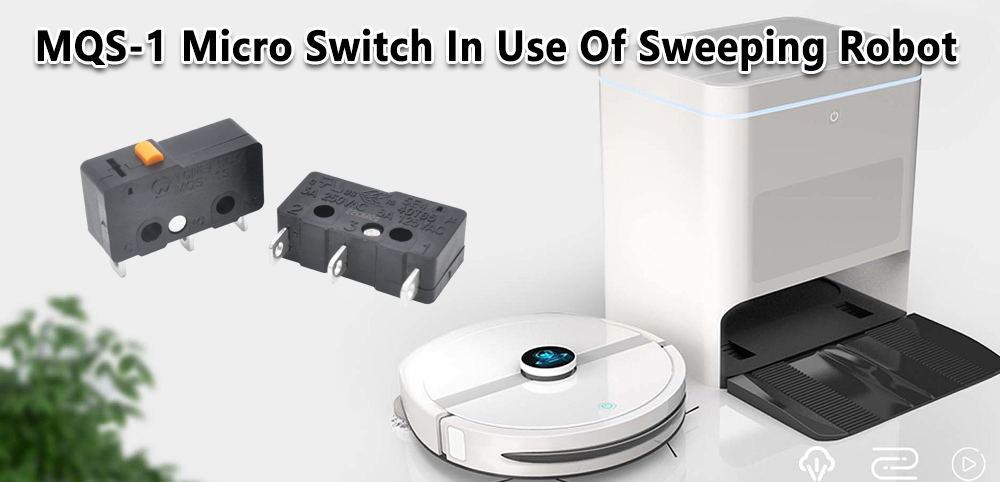

Working principle of MQS-1 micro switch in sweeping robot
Cleaning robots usually use micro switches to help them sense and respond to changes in the environment when performing tasks. The MQS-1 micro switch is a mechanical switch. Its working principle is based on the fact that when an object is touched or pressure is applied to the switch, the circuit inside the switch is triggered.
There are one or more electronic contacts inside the MQS-1 microswitch. These joints are usually located in the path of motion of the cantilever arm. When the cantilever arm receives enough force or pressure to cause it to move, the contacts close or open, thereby changing the state of the circuit.
In the initial state, the contact of the MQS-1 microswitch is usually open, breaking the circuit. This means that current cannot pass through the microswitch. When an object or force is applied to the cantilever arm of the MQS-1 microswitch, the cantilever arm moves. This can be due to a collision of the robot or contact with obstacles in the environment.
The contacts of the MQS-1 microswitch are closed, and the robot can take corresponding actions according to the requirements of the program design, such as stopping, changing direction, or taking other measures to deal with the detected situation.
MQS-1 microswitches are often used in sweeping robots to detect collisions, edge detection, or trigger other sensing events, helping the robot avoid collisions, follow a predetermined path, or perform specific tasks. These switches are one of the key components of how the robot senses and reacts.
How MQS-1 micro switch improve the functionality of sweeping robots
The application of the MQS-1 micro switch in sweeping robots can help improve the functions of the robot and increase its intelligence and adaptability. The MQS-1 microswitch is used to detect collisions. When the robot collides with an obstacle, it can automatically stop or change direction to avoid damage to the robot or the environment. This helps improve the safety and durability of the robot.
-
Edge detection
The MQS-1 microswitch can be used to detect stairs, steps, or other steep surface changes. Robots can use these switches to avoid falls or slips, ensuring appropriate measures are taken when facing edges.
-
Avoid specific areas
MQS-1 microswitches can be used to identify or detect specific areas, such as off-limits areas. The robot can avoid these areas based on the status of the microswitches, allowing for more precise navigation and task execution.
-
The detection task is completed
The sweeping robot can use micro switches to detect task completion. When it detects task completion, it can automatically return to the charging dock or notify the user.
-
Perceive changes in the environment
The MQS-1 microswitch can also be used to detect other changes in the environment, such as the opening and closing status of doors, the position of items, or other sensing events. This helps the robot respond to different situations more intelligently.
-
User interaction
The MQS-1 microswitch can also be used for user interaction, such as by pressing a button to start or stop the robot, or by triggering the robot to perform a specific task or mode.
By combining the MQS-1 micro switch with other sensing technologies such as lidar, cameras, and ultrasonic sensors, the sweeping robot can achieve more complex environmental perception and more advanced autonomous navigation, thus improving its functionality and adaptability. These features improve the robot’s performance, safety, and user experience.
Functions of the sweeping robot
A sweeping robot is an automated home appliance designed to simplify home cleaning and provide a variety of functions to improve the user’s quality of life. Sweeping robots provide convenient home cleaning solutions by automating cleaning tasks and have a variety of functions to adapt to different user needs and different home environments. These features improve cleaning efficiency and user experience.
-
Vacuum and sweep the floor
The main function of a sweeping robot is to clean floor surfaces. They usually come with a vacuum unit and a rotating brush that picks up dust, debris, and debris while sweeping the floor with the rotating brush to ensure a clean floor surface.
-
Autonomous navigation
Modern sweeping robots usually have autonomous navigation functions that can intelligently avoid obstacles, identify room layouts, formulate cleaning paths, and charge automatically.
-
Obstacle avoidance function
Through sensors such as lidar, cameras, ultrasonic sensors, and micro switches, sweeping robots can detect obstacles and avoid them to avoid collisions and damage. Cleaning robots are usually equipped with a variety of sensors, such as lidar, cameras, ultrasonic sensors, and infrared sensors. These sensors help the robot detect its surroundings, identify the location and distance of obstacles, and adjust its cleaning path.
-
Automatic charging
Robot vacuum cleaners usually automatically return to the charging base when the battery is low, and continue cleaning tasks after charging without user intervention.
-
Floor-type adaptability
Robot vacuums can often adapt to many different floor types, such as hard floors, carpets, and tiles, without requiring user intervention or switching attachments. Robot vacuum cleaners often have filtration systems to capture dust and allergens and improve indoor air quality.
Sweeping robot micro switch scheduling and scheduled cleaning
Micro switches are usually not used for scheduling and scheduled cleaning tasks of sweeping robots because micro switches are mainly used to detect collisions between robots and objects or obstacles so that the robot can avoid collisions or take appropriate measures. Scheduling and scheduled cleaning tasks are often accomplished through other types of sensors, software, and intelligent control systems.
-
Smart programs and timing settings
Sweeping robots are usually equipped with smart programs and timing settings. Users can use the robot’s control panel or smartphone app to create a cleaning schedule. Users can specify daily and weekly cleaning times to ensure that the robot performs cleaning tasks at specific times.
-
Autonomous navigation and intelligent algorithms
Sweeping robots use autonomous navigation technology and intelligent algorithms such as SLAM to plan cleaning paths. The robot can navigate autonomously and perform cleaning tasks without hitting obstacles.
-
Charge and restore
When the battery power of the sweeping robot falls below the set threshold, it will automatically return to the charging base for charging. Once charged, the robot will resume its last cleaning mission and continue where it left off.
Microswitches are mainly used to detect collisions in these processes to help the robot avoid collisions with obstacles, rather than for scheduling and scheduled cleaning tasks. Users can set the scheduling and timing of cleaning tasks on the robot’s control interface as needed, and the micro switch is used to respond to collision events when the robot performs cleaning tasks.
Benefits of using micro switches in sweeping robots
Using microswitches in robot vacuums brings a variety of benefits that can improve the performance, safety, and adaptability of the robot. Microswitches can be used to detect collisions between the robot and obstacles or walls. When a robot detects a collision, it can automatically stop or change direction to avoid damage to the robot or the environment. This helps improve the safety of the robot.
Microswitches can be used to detect stairs, steps, or other edges to help the robot avoid falling or slipping. This increases the robot’s ability to operate on different types of surfaces. Microswitches can be used to identify or detect specific areas, such as off-limits areas. Robots can avoid these areas based on the state of microswitches, allowing for more precise task execution or navigation.
Micro switches can be used to detect task completion. When the robot detects that the task has been completed, it can automatically return to the charging base or notify the user, improving the robot’s efficiency and user experience. Microswitches can also be used for user interaction, such as by pressing buttons to start or stop the robot, or by triggering the robot to perform a specific task or mode. This increases the interactivity between the user and the bot.
Micro switches provide important sensing and response functions in sweeping robots, helping the robots better adapt to and respond to complex environments and improve their functionality, safety, and user experience. These switches are one of the key components of how the robot senses and reacts.
Application scenarios of sweeping robots in microswitches
The application scenarios of micro switches for sweeping robots mainly involve situations where the robot needs to sense and respond to physical contact or collision when performing tasks. Sweeping robots are often equipped with micro switches to detect collisions between the robot and obstacles or walls. When the robot hits an object, the microswitch is triggered and the robot can stop or change direction to avoid damage.
Robot vacuums can use microswitches to detect or identify off-limits areas, such as electrical cords, certain furniture, or other areas. When the robot touches these areas, micro switches are triggered, causing the robot to avoid these areas and follow the predetermined navigation path.
Microswitches can also be used to detect contact between the robot and other objects or events in the environment. For example, it can be used to detect the status of a door to determine if a specific action is required or to sense other triggering events.
Microswitches are an important technology in sweeping robots, which can help robots perceive and respond to different environmental changes more intelligently, improving the robot’s functionality, safety, and user experience. These application scenarios make sweeping robots more adaptable to diverse home and office environments.
