The MQS-1 series limit switch is a type of switch that is capable of detecting the position of a moving object and triggering an action when that object reaches a specific point. It is often used for safety applications, such as to limit the travel of machine parts or to prevent overloading of equipment.
An electromagnetic lock is a type of locking mechanism that uses an electromagnet to secure two objects together. When electrical power is applied to the electromagnet, it creates a magnetic field that pulls the locking mechanism into place. Electromagnetic locks are commonly used for security purposes, such as to secure doors or gates.

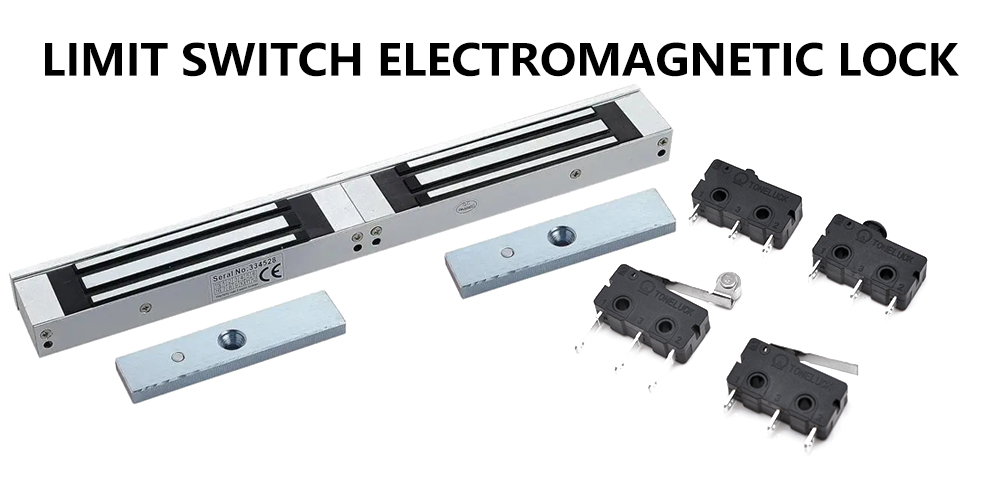

The MQS-1 series limit switch with electromagnetic lock is a combination of these two devices. It uses the limit switch to detect the position of a moving object, such as a gate or door and triggers the electromagnetic lock to secure the object in place when it reaches the desired position.
This type of switch is often used in industrial or commercial environments where safety and security are critical concerns. For example, it may be used to prevent a gate from closing on a person or to secure a door in a high-security environment.
Proper installation and maintenance of the MQS-1 series limit switch with an electromagnetic lock are crucial to ensure reliable and safe operation. It is important to ensure that the switch is appropriately calibrated and the electromagnetic lock is properly installed to prevent any malfunctions or accidents.
1. The structure of the MQS-1 series limit switch
The MQS-1 series limit switch has a relatively simple structure. It consists of a switch body, a lever arm, and a contact mechanism.
The switch body is typically made of metal or plastic and houses the contact mechanism. The lever arm is attached to the switch body and extends outward. This arm is designed to move when a specific condition is met, such as when a gate or door reaches a specific position.
The contact mechanism is located inside the switch body and consists of one or more sets of contacts that open or close when the lever arm moves. These contacts control the flow of electrical current to trigger an action, such as activating an electromagnetic lock.
The MQS-1 series limit switch may have additional features, such as adjustable settings or weather-resistant casings, depending on the specific application.
2. Electromagnetic lock design
An electromagnetic lock, also known as a maglock, typically consists of two main components: an electromagnet and an armature plate. The electromagnet is mounted on the door frame, and the armature plate is mounted on the door itself.
The electromagnet is usually made of a steel plate with a coil of wire wrapped around it. When electrical power is supplied to the coil, it generates a magnetic field that attracts the armature plate. The armature plate is usually made of steel and has a ferromagnetic core that is attracted to the electromagnet.
When the electromagnet is energized, the magnetic force pulls the armature plate against it, which provides a strong holding force to keep the door locked. When the power is turned off, the magnetic attraction between the electromagnet and the armature plate ceases, and the door can be opened.
