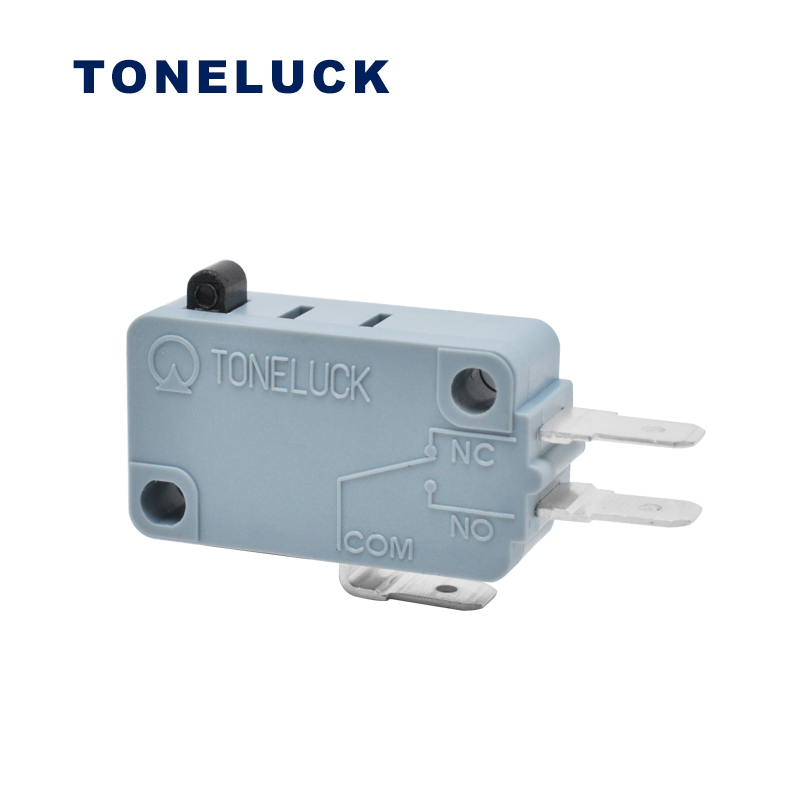

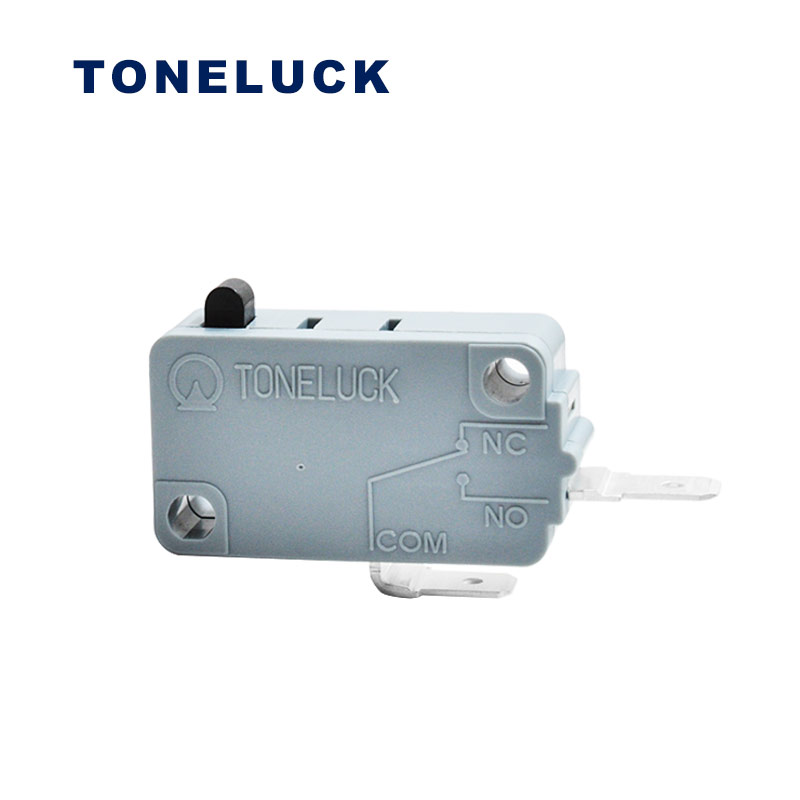

| MQS-2 Micro Limit Switch Ordering Introduction |
| Series | Location Pin | Lever Type | Terminal | Current | OF & RF | – | Version |
|---|---|---|---|---|---|---|---|
| MQS-216 | A= Standard Position | 00 = No lever | Type A: Quick connect Terminal | A= SPDT | K: 55 +/- 15gf 10 ~ 50gf | 01 = Standard | |

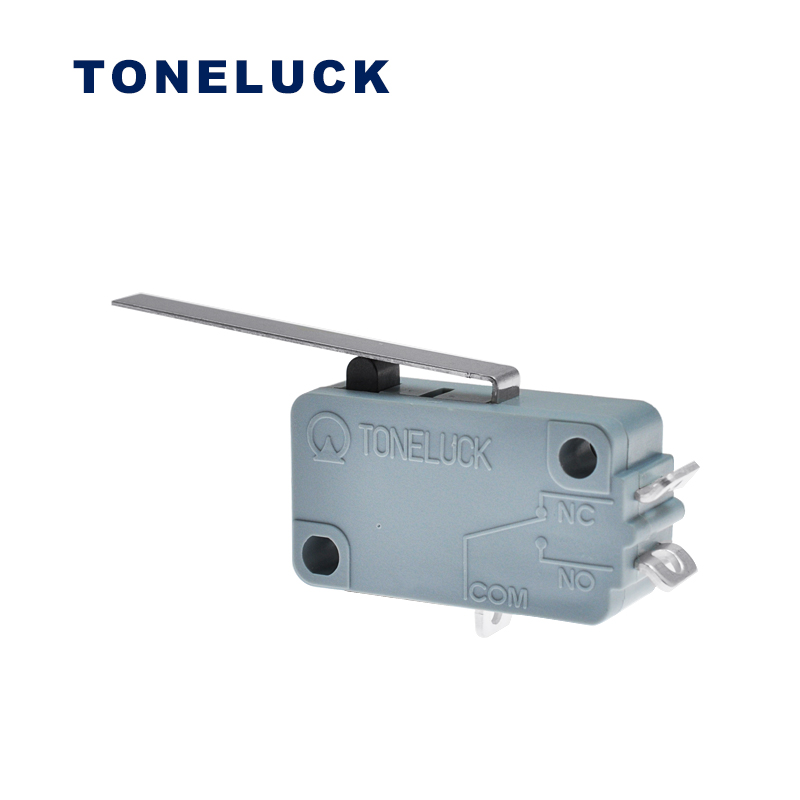

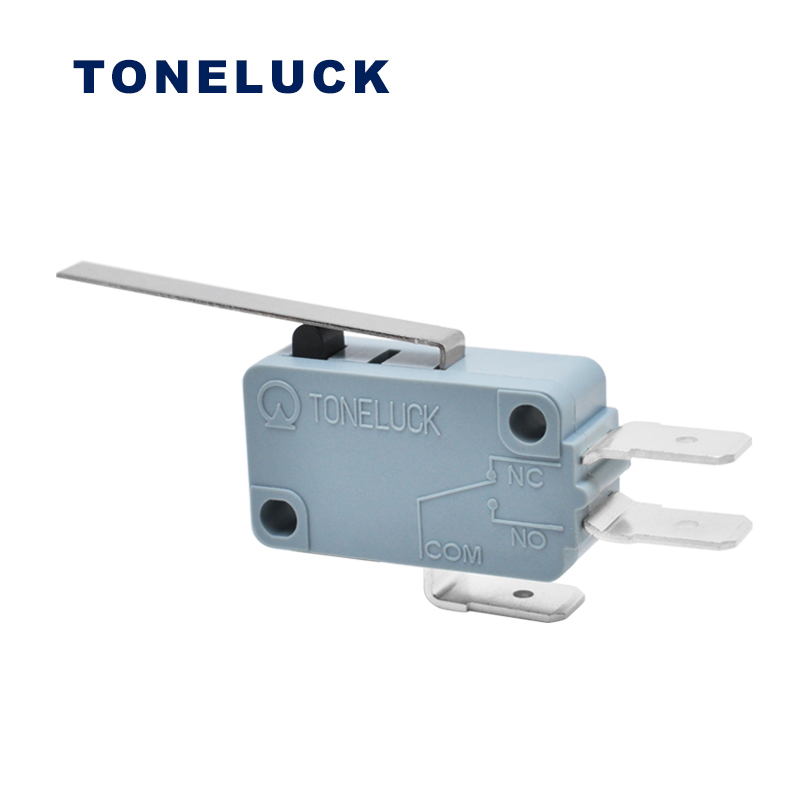

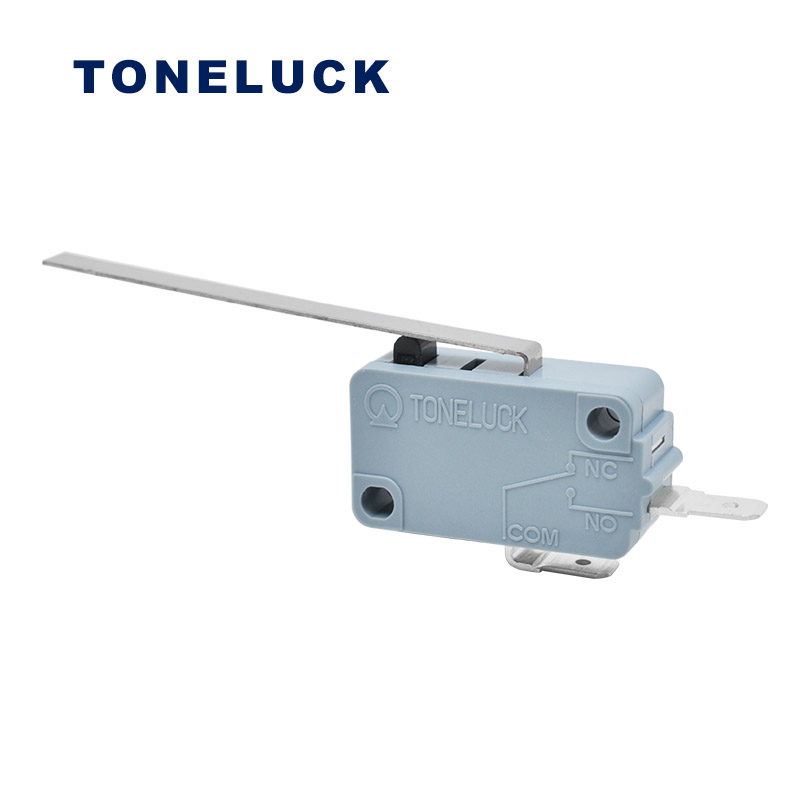

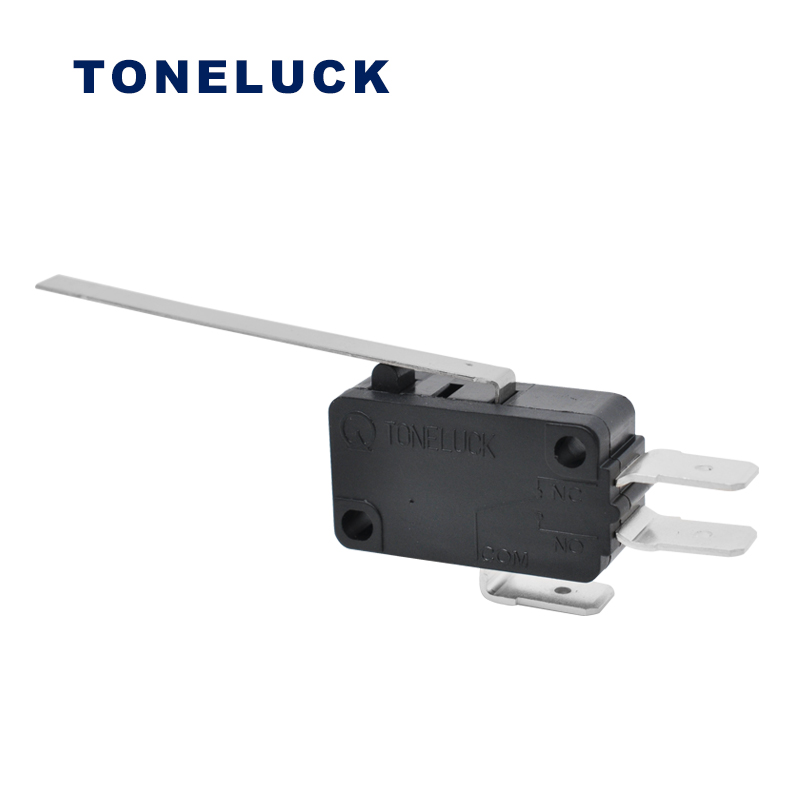

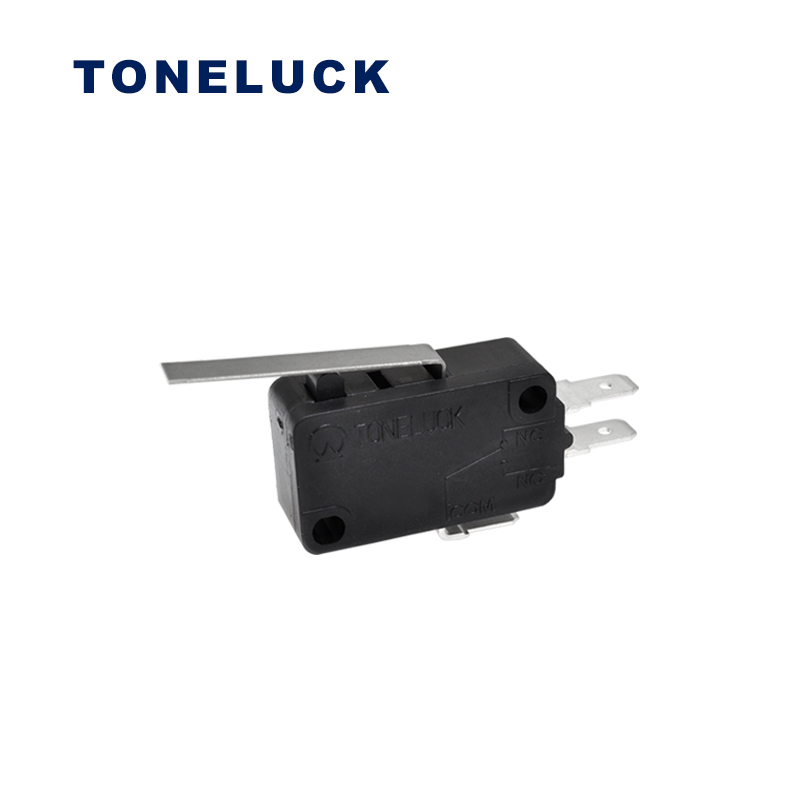

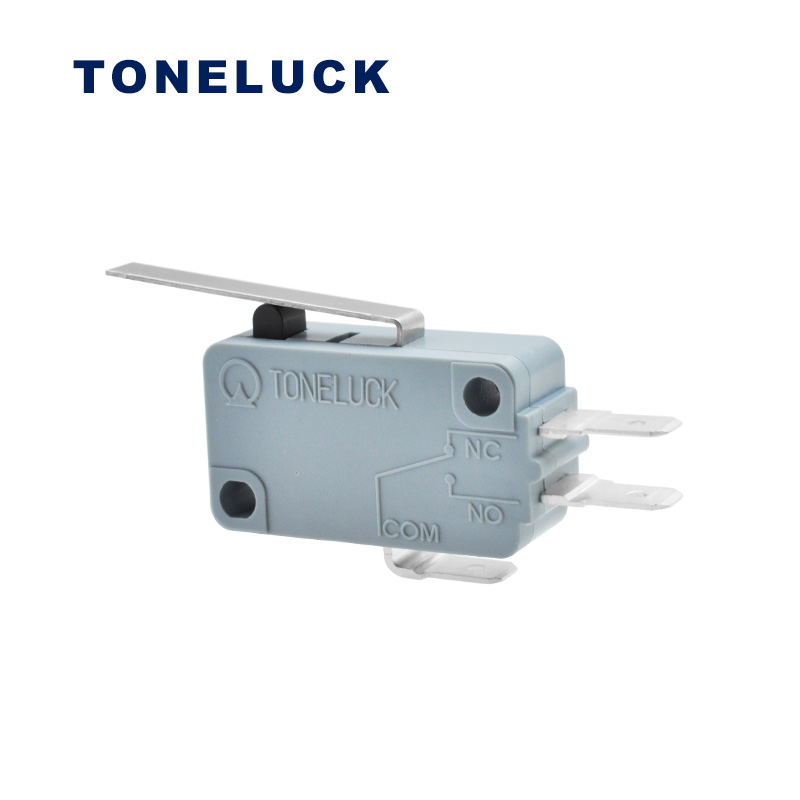

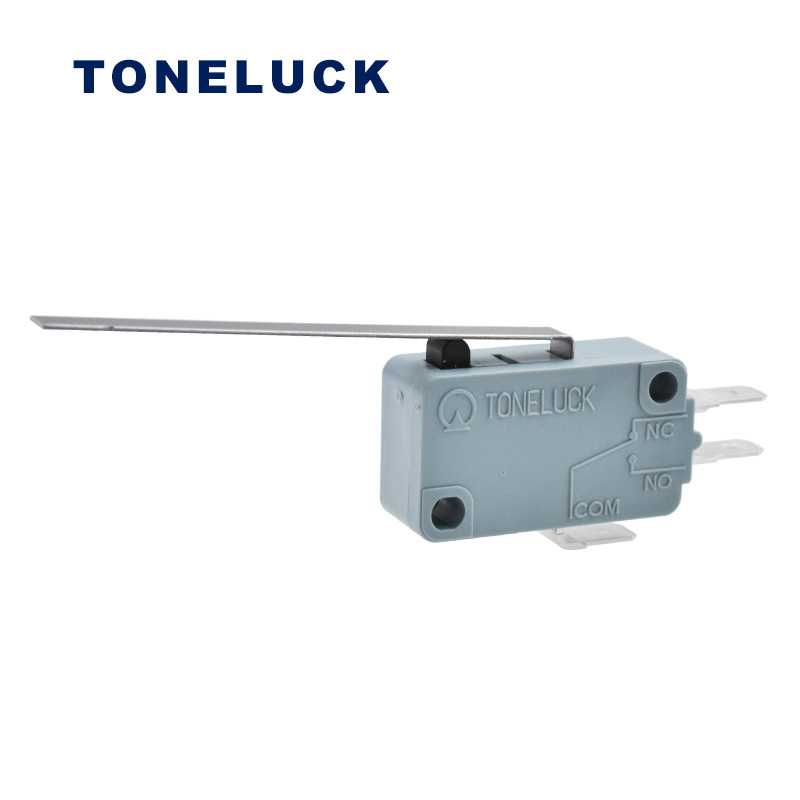

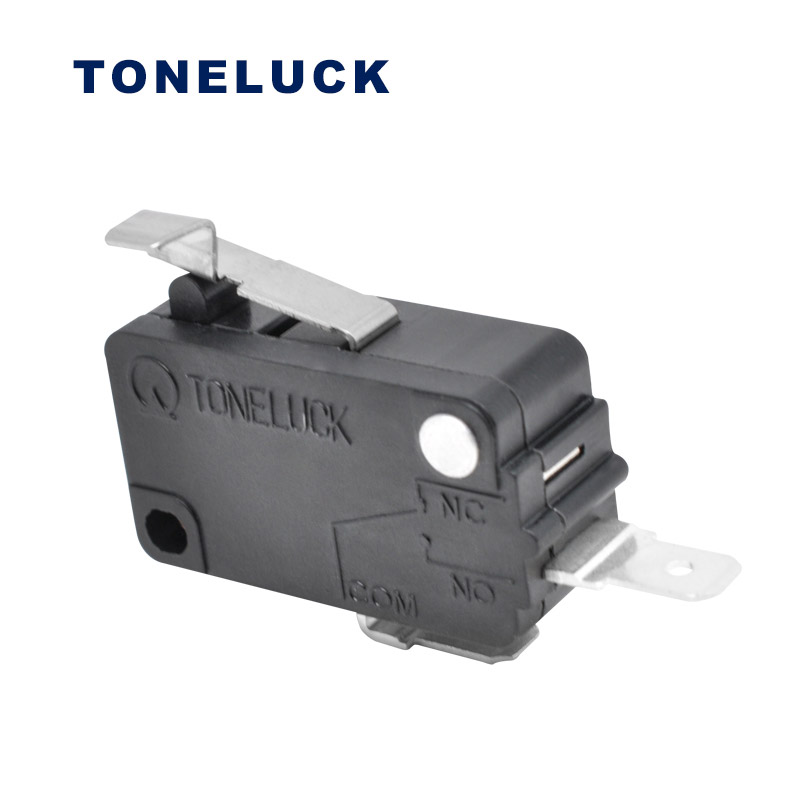

| MQS-216T | B= High Gear Position | 01= 1# 13.8mm straight lever | Type B: Quick connect Terminal | B= SPST-NC | S: 100gf Max 20gf Min | Custom-made:02,03,04,etc. | |
| MQS-210H | 02=2# 27.3mm straight lever | Type C: Solder Terminal | C= SPST-NO | L: 100 +/- 25gf 20 ~ 90gf | |||
| 03=3# 24.3mm simulated roller lever | Type D: Screw Terminal | M: 160 +/- 30gf 50 ~ 140gf | |||||
| 04=4# 50.8mm straight lever | etc. | N: 200 +/- 30gf 55 ~ 160gf | |||||

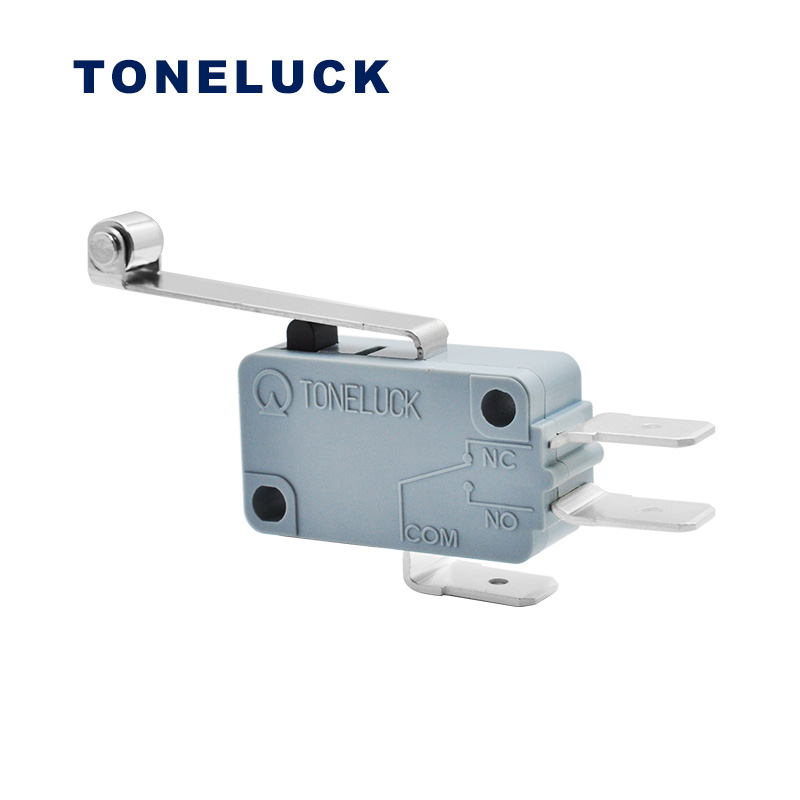

| 05=5# 31.8mm roller lever | P: 350 +/- 50gf 80 ~ 300gf |
| Specification |
| Electrical rating | 1~50mA/5~16VDC, 40T85, 300,000 cycles |
| Mechanical Life | 1,000,000 cycles min. |
| Contact Resistance | 50mΩ max. initial |
| Insulation Resistance | 100 MΩ min. |
| Dielectric Strength | 1000VAC for 60+/- 5 sec |
| Housing | UL 94V-0 Thermoplastic |
| Model | Temperature | Rating | Electrical Life (UL) | Electrical Life (ENEC) | Electrical Life (CQC) |

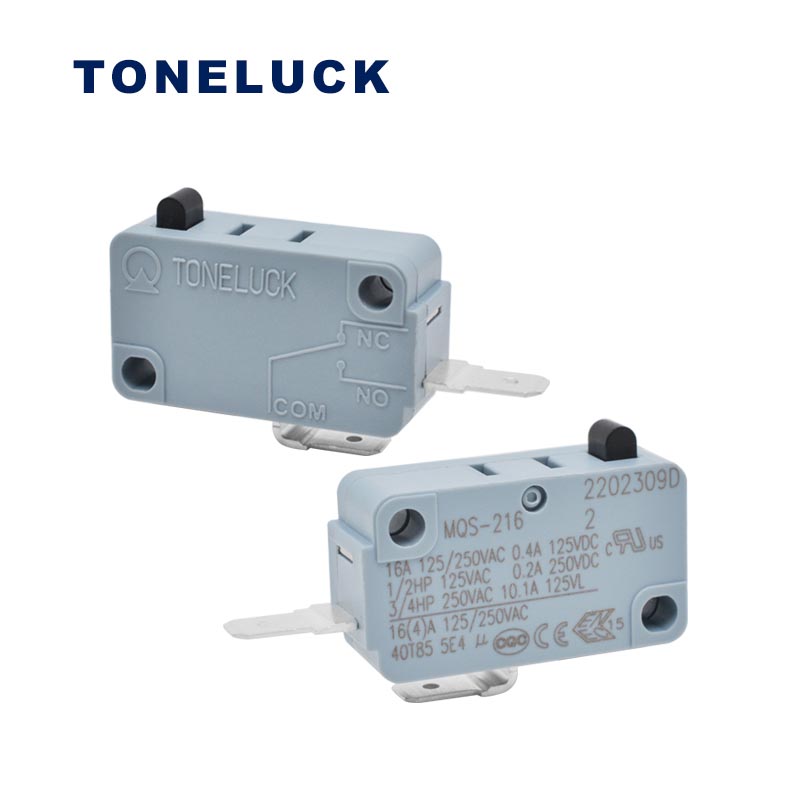

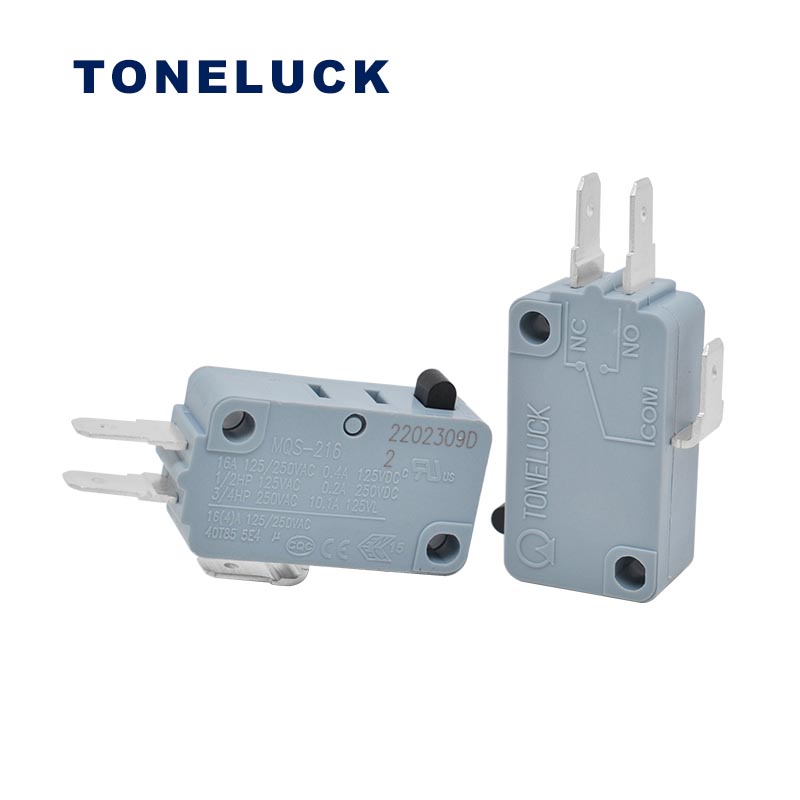

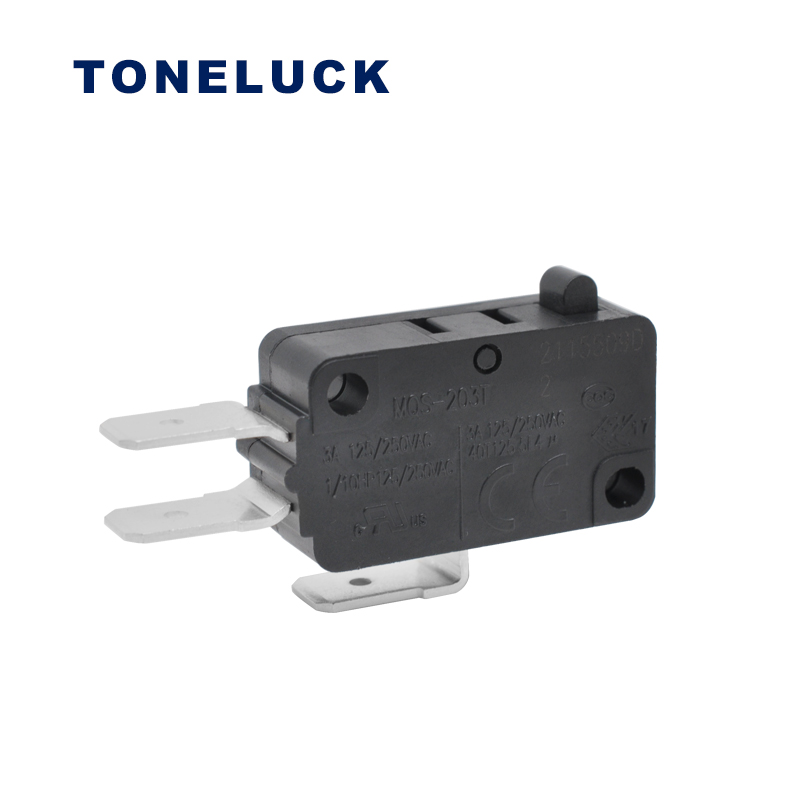

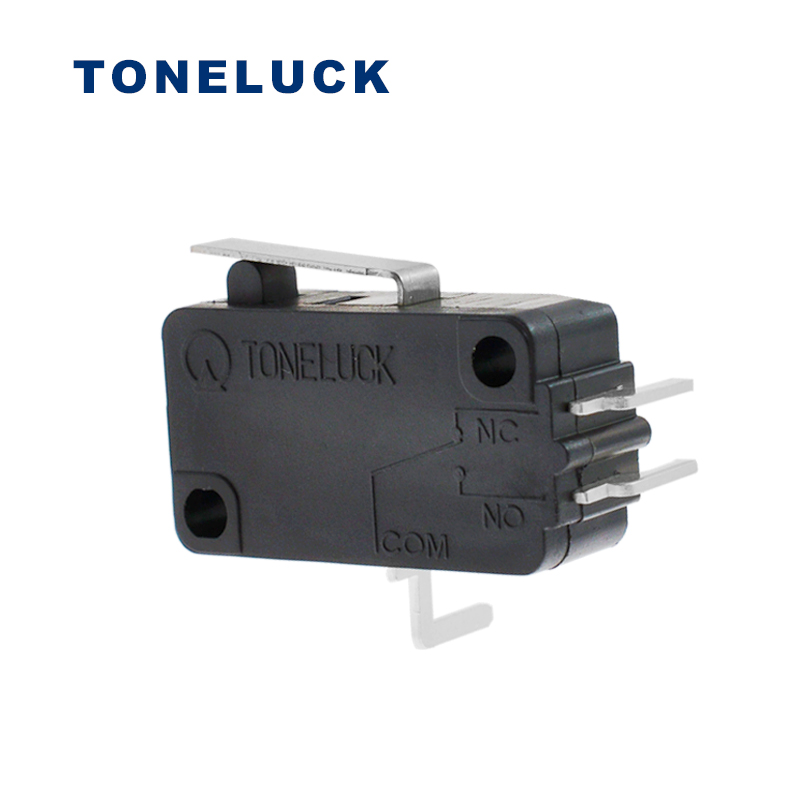

| MQS-216 | 40 T 85 | 16 A 125/250VAC | 6,000 cycles | ||
| 1/2HP 125VAC | 6,000 cycles | ||||
| 3/4HP 250VAC | 6,000 cycles | ||||
| 0.1A 125VL (Tungsten) | 6,000 cycles +6,000 cycles | ||||
| 16（4） A 125/250VAC | 50,000 cycles | 50,000 cycles | |||
| MQS-216T | 40 T 125 | 16A 125/250VAC | 6,000 cycles | ||
| 1/2HP 125VAC | 6,000 cycles | ||||
| 3/4HP 250VAC | 6,000 cycles | ||||
| 10.1A 125VL (Tungsten) | 6,000 cycles +6,000 cycles | ||||
| 16（4）A 125/250VAC | 50,000 cycles | 50,000 cycles | |||
| MQS-210H | 40 T 150 | 10A 125/250VL | 100,000 cycles | ||
| 1/2HP 125/250VAC | 100,000 cycles | ||||
| 1A 30VDC | 100,000 cycles |
