The working principle of MQS-4 series micro switch in door lock circuit
MQS-4 series micro switch is usually used in door lock circuit. Its main function is to trigger the circuit when the switch state of the door changes to control the switch action of the door lock. The working principle of MQS-4 series micro switch is that when it is acted upon by external force (such as the opening or closing of the door), the contacts inside the switch will make corresponding actions, thereby changing the conduction state of the switch and triggering the relevant equipment in the circuit.
In the door lock circuit, MQS-4 series micro switch is usually installed in a specific position of the door, such as the door frame or the fixed part of the door. When the door is closed, the contacts of MQS-4 series micro switch may close and conduct the circuit, indicating that the door is closed; when the door is opened, the contacts of MQS-4 series micro switch will open, and the circuit loses conduction, indicating that the door is in the open state. This design ensures that the door lock can only work when the door is closed, increasing the safety and reliability of the door lock system.
In practical applications, the selection of MQS-4 series micro switches needs to consider factors such as durability, waterproofness (if installed outdoors or in a humid environment), and trigger force to ensure long-term stable door lock control functions.
The MQS-4 series micro switch has a spring inside. When external force acts on the trigger rod of the switch, the trigger rod moves and causes the contacts inside the switch to open and close. MQS-4 series micro switches usually have multiple contacts, including normally open contacts and normally closed contacts. In door lock circuits, normally open contacts are often used. The trigger rod of the MQS-4 series micro switch is pushed by the position of the door, causing the contacts to close and conduct the circuit.
The trigger rod of the MQS-4 series micro switch moves due to the position of the door, and the contacts open, disconnecting the circuit. Through the opening and closing actions of the MQS-4 series micro switch, related equipment in the door lock circuit can be controlled. For example, when the door is closed, the MQS-4 series micro switch is closed, the door lock circuit receives an electrical signal, and the door lock is allowed to open or close; when the door is opened, the MQS-4 series micro switch is opened, and the door lock circuit disconnects the electrical signal to prevent the door lock from operating. The design requirements of the MQS-4 series micro switch are good durability and stability, and can maintain good triggering and conduction functions in long-term use to ensure the safety and reliability of the door lock system.
The MQS-4 series micro switch realizes the function of controlling the door lock circuit when the door switch state changes through the movement of its trigger rod and the opening and closing of the contacts. It is one of the important triggering devices in the door lock system.

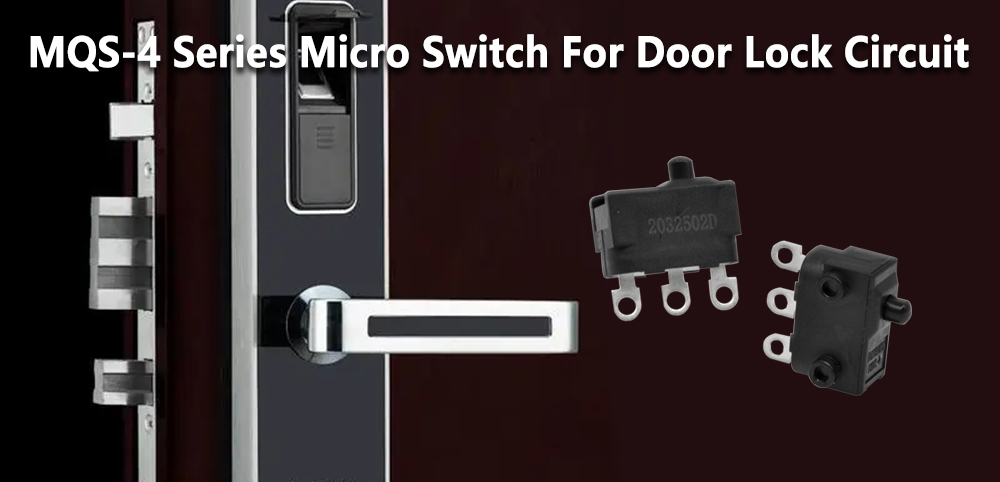

![门锁电路MQS-4系列微动开关-1000X482 MQS-4 series micro switch](https://www.toneluckswitches.com/wp-content/uploads/2024/06/门锁电路MQS-4系列微动开关-1000X482.jpg)
The importance of the MQS-4 series micro switch in ensuring the safety and functionality of the door lock circuit
The MQS-4 series micro switch plays a vital role in ensuring the safety and functionality of the door lock circuit. The MQS-4 series micro switch can accurately detect the state of the door, that is, whether the door is open or closed. This real-time status monitoring ensures that the door lock system only allows locking operations when the door is completely closed, avoiding security vulnerabilities caused by the door not being closed.
The opening and closing action of the MQS-4 series micro switch directly controls the switch device in the door lock circuit. Only when the door is in the appropriate state will the MQS-4 series micro switch close, allowing the electrical signal in the door lock circuit to pass, thereby controlling the locking or unlocking action of the door lock. Through the state monitoring of the MQS-4 series micro switch, the door lock system can prevent misoperation. For example, when the door is not completely closed, the MQS-4 series micro switch will not close, thereby preventing the door lock circuit from sending a signal to perform a locking operation, ensuring that the door lock action can only be performed under safe conditions.
The MQS-4 series micro switch is designed with durability and stability in mind, and can work stably and long-term in various environmental conditions. This reliability ensures the long-term safe operation of the door lock system and reduces the safety risks caused by switch failure or damage. The MQS-4 series micro switch can be easily integrated into the door lock system and work in conjunction with other electronic or mechanical components to improve the reliability and consistency of the overall system. They are often an integral part of the design, ensuring the reliability and safety of the door lock system in various usage scenarios.
MQS-4 series micro switches ensure the safety and functionality of the door lock circuit through their role in door state detection and control of door lock action. They not only simplify the operation process of the door lock system, but also effectively prevent potential safety hazards, and improve the overall user experience and safety level.
What does the MQS-4 series micro switch control the door lock circuit through?
The MQS-4 series micro switch controls the door lock circuit through its own opening and closing action. There is an active trigger rod inside the MQS-4 series micro switch. When external force acts on the MQS-4 series micro switch, this trigger rod will move. According to the design of the MQS-4 series micro switch, when the trigger rod moves, the contacts of the switch will open and close accordingly.
When the door is closed, if the MQS-4 series micro switch with a normally open contact is used, its contacts are disconnected, that is, the circuit is not turned on; when the door is opened, the contacts of the MQS-4 series micro switch are closed, turning on the door lock circuit, allowing current to flow, thereby triggering the relevant equipment to perform the door lock unlocking operation. On the contrary, if the MQS-4 series micro switch with normally closed contacts is used, the contacts are closed when the door is closed, and when the door is opened, the contacts are opened, thereby triggering the relevant equipment to perform the door lock operation.
The door lock circuit determines the state of the door lock according to the open and closed state of the MQS-4 series micro switch. For example, when the door is closed, the MQS-4 series micro switch is closed, and the controller in the door lock circuit receives the signal and performs the door lock operation; when the door is opened, the MQS-4 series micro switch is opened, and the controller performs the unlocking operation. The design of the MQS-4 series micro switch usually takes into account the stability and durability of long-term use to ensure reliable operation under various environmental conditions. This design can effectively prevent misoperation and improve the safety of the door lock system.
The MQS-4 series micro switch directly controls the working state of the relevant equipment in the door lock circuit through the movement of its trigger rod and the opening and closing action of the contacts, thereby realizing the locking and unlocking functions of the door lock, and is one of the indispensable control elements in the door lock system.
Application scenarios of door lock circuit ice maker
Ice makers usually need to maintain a closed environment during operation to ensure that the temperature inside the refrigerator can be steadily reduced. The door lock circuit can detect whether the door is completely closed through devices such as the MQS-4 series micro switch, thereby ensuring that the internal environment of the refrigerator will not be affected by the outside world because the door is not closed. Some ice maker designs may integrate a safety switch system, which allows the ice maker to start the refrigeration cycle only when the door lock is in the locked state, which can prevent temperature fluctuations and energy waste caused by user misoperation or failure to completely close the door.
Advanced ice maker equipment may be equipped with an energy-saving function. When the door lock is closed, it automatically enters the energy-saving mode to reduce energy consumption. The door lock circuit can play the role of detecting the door status and triggering the energy-saving mode switch in this case. A well-designed door lock circuit can improve the user experience and ensure that the door lock and refrigeration system can work seamlessly when the user operates the ice maker, and the use effect will not be affected by the door not being properly closed or locked.
Through the application of the door lock circuit, the ice maker can provide a higher sense of security and reliability, especially in applications where a low temperature environment needs to be maintained for a long time. With the development of smart ice makers, door lock circuits can be integrated into smart control systems to achieve remote monitoring and management. For example, users can remotely check the door lock status and control the switch of the ice maker through a mobile phone application, which improves convenience and operational flexibility.
The application of door lock circuits in ice makers is not just a simple door closure detection, but also involves safety, energy efficiency, user experience, and intelligent management, which has an important impact on the performance and user experience of the ice maker.
