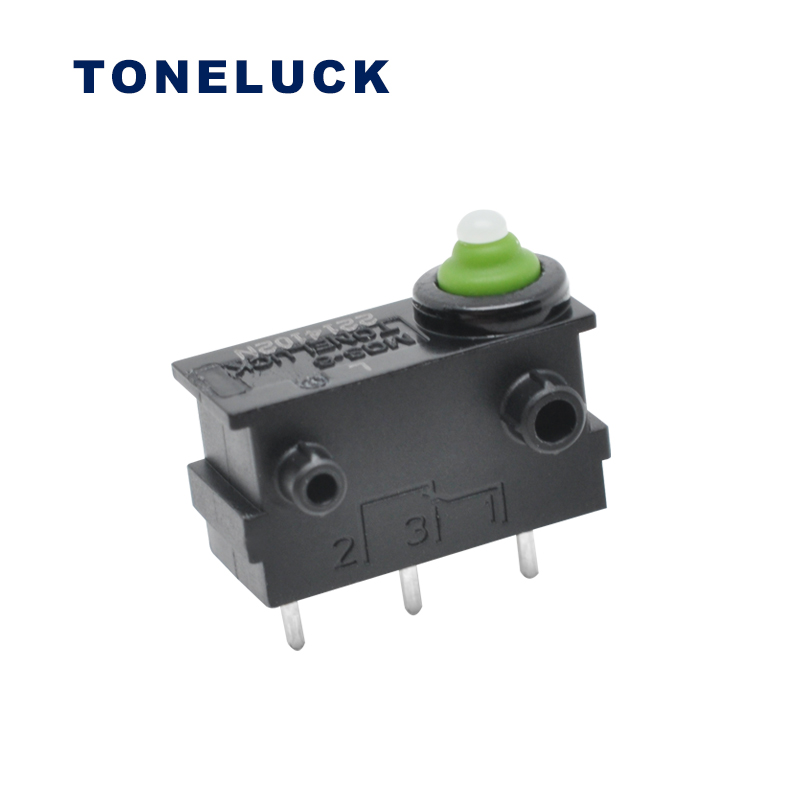

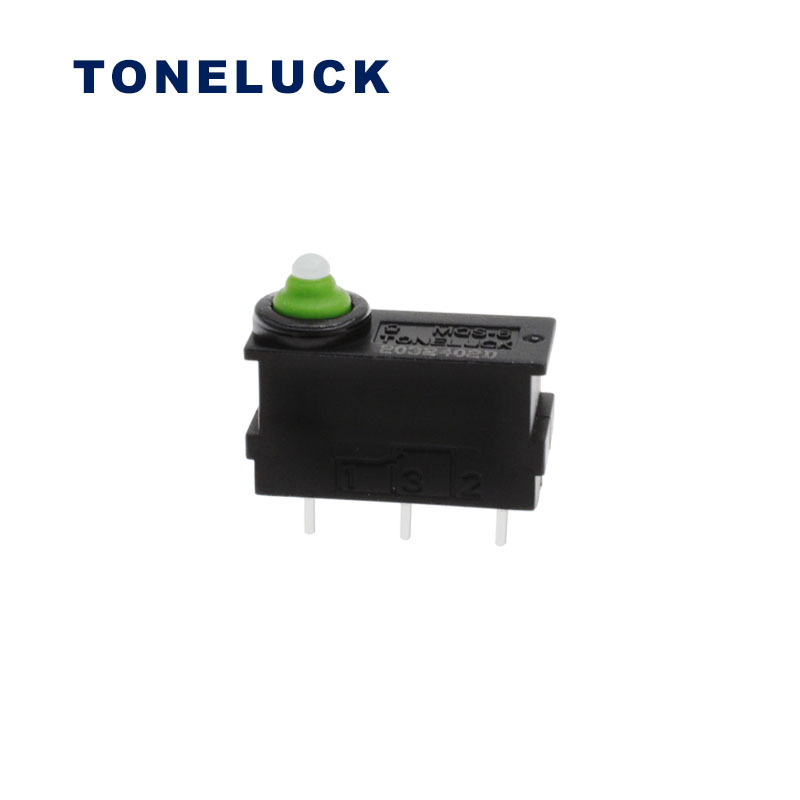

MQS-6 Subminiature Micro Switch Ordering Guide
Series Electrical rating Location Pin Terminal Type Lever Type Version
MQS-52 Terminal Version 1 = 2A/12V DC SPDT Silver Contacts A = Side A, 1.5mm A= Angled PCB pins Side A 00= Pin Plunger, no external lever 01: Standard Specification
2 = 2A/12V DC SPST-NC Silver Contacts B = Side B, 1.5mm B= Angled PCB pins, Side B 01
3 = 10~50mA/12VDC SPDT Silver Contacts C = Both Sides, 1.5mm C= Straight PCB pins, length: TBD 02
4 = 10~50mA/12VDC SPST-NC Silver Contacts D = Side A,2.5mm D= Straight crimped pcb pins 03
5 = 2A/12V DC SPST-NO Silver Contacts E = Side B, 2.5mm E= Straight Solder terminals 04
6 = 10~50mA/12VDC SPST-NO Silver Contacts F = Both Sides, 2.5mm F= Straight PCB pins, length 4.15mm etc.
G = Side A,5mm H= Angled Solder terminals, Side B
H = Side B, 5mm J= Interlock terminal, side A
J = Both Sides, 5mm K= Interlock terminal, side B
N = No Position Pin
MQS-6 Specification
Electrical rating 10~50mA 12~24 VDC 250,000 cycles Min
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Base)
Contact Form Demo (#1)
Download MQS-6 PDF
