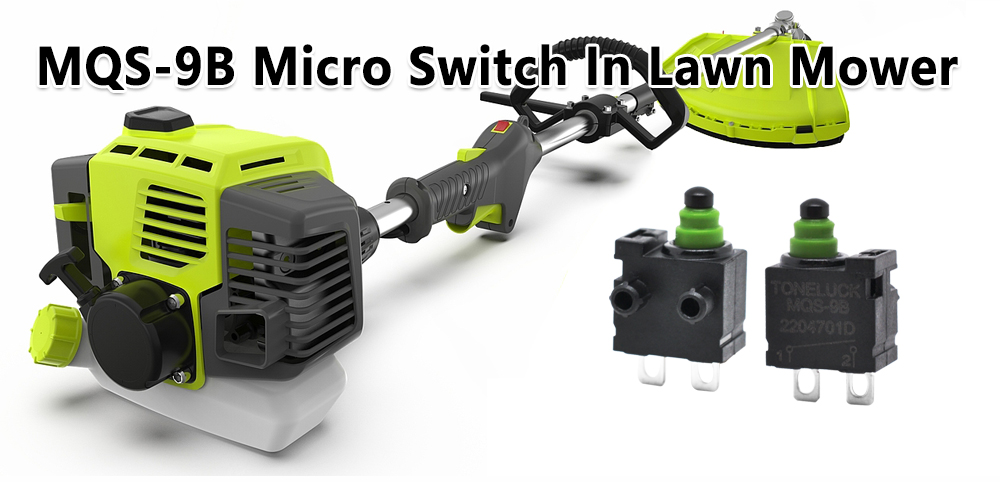

MQS-9B Micro Switch In Lawn Mower

MQS-9B micro switch controls the function of the lawn mower

The MQS-9B micro switch is a small switch that is usually triggered by tiny mechanical movements. Using the MQS-9B micro switch in a lawnmower can control functions, such as starting and stopping the engine or blade operation. The working principle of the MQS-9B micro switch is to switch the circuit on and off at its trigger point through mechanical operation, thereby changing the flow of current or opening/closing the circuit.

The working principle of the MQS-9B micro switch is based on the opening and closing of mechanical contacts. When a switch is subjected to mechanical pressure or displacement, the contacts inside it close or open, thereby changing the flow of current or opening/closing a circuit. In lawnmowers, this mechanical action is usually accomplished by pressing or releasing a button, lever, switch, etc.

In lawn mowers, the MQS-9B microswitch is usually integrated with the control system, and its operation can trigger related electrical or mechanical functions. MQS-9B micro switches may be used in lawn mowers to control many aspects, the most common of which include engine start and stop and blade operation. These two aspects are critical parts of the basic operation of a trimmer.

The MQS-9B micro switch is usually integrated with the operating handle or control panel of the lawn mower to ensure that users can operate it conveniently through hand movements. Using the MQS-9B micro switch to control the engine and blade operation allows you to more accurately control the operation of the lawn mower and quickly take necessary measures when needed, such as stopping the blade rotation to ensure safety.

1. Lawn trimmer engine start and stop control

In lawn mowers, micro switches are usually used for engine start and stop control. The MQS-9B micro switch can be used to start and stop the trimmer engine. When you press or release the microswitch, it may start or stop the engine by changing the state of the circuit.

When you press the MQS-9B micro switch, it will close the corresponding circuit. This closed circuit triggers the starting system, providing the engine with the necessary current and signal to start. On the contrary, when you release the MQS-9B micro switch, it will open the corresponding circuit. This open circuit may send a signal to the engine-stop system, cutting power to the engine and causing it to stop running.

This design helps simplify the operation of the trimmer, allowing the user to conveniently start and stop the engine without the need for additional control steps. This also helps provide a means of emergency stopping to ensure that the engine can be stopped immediately if required.

2. Blade operation control of lawn mower

In lawn mowers, the MQS-9B micro switch can also be used to control blade operation. Micro switches can also be used to control the operation of lawn blades. Pressing or releasing the microswitch may affect the circuit, starting or stopping the blade’s rotation.

One state of the MQS-9B micro switch will close the corresponding circuit. This closed circuit triggers the blade operating system, providing the required current and signal to the blade to start spinning. Instead, when you change the state of a microswitch (e.g. release it), it opens the corresponding circuit. This broken circuit may send a signal to the blade operating system, cutting power to the blade and causing it to stop spinning.

This design allows the operator to easily control the operation of the blade and start or stop it with a simple operation through the MQS-9B micro switch. This control mechanism also helps provide a means of emergency stopping to ensure that the rotation of the blade can be stopped immediately if required.

3. Speed adjustment of lawn mower

Speed adjustment is a feature on some advanced trimmers that allows the user to adjust the trimmer’s operating speed based on lawn conditions and personal preference. Speed adjustment is usually accomplished via a lever, knob, or button on the control handle, which may include a microswitch.

The trimmer is equipped with a speed control lever on the handle. By moving this lever, the user can adjust the speed of the trimmer. Typically, the position of the lever may correspond to different speed gears, such as slow, medium, and fast. The trimmer may use a knob or button for speed adjustment. Users can select the desired speed level by turning the knob or pressing a button.

On a trimmer, the microswitch may be designed as part of the speed adjustment system. Through the operation of the micro switch, the user can select or adjust the speed of the lawnmower. The main purpose of speed adjustment is to enable users to flexibly control the forward speed of the lawnmower according to different working conditions and lawn requirements. For example, in areas that require more careful cutting or where there are obstacles, you can choose a slower speed, while in areas that are flatter and free of obstacles, you can choose a faster speed.

4. Safety functions of lawn mowers

Lawn trimmers are usually designed with a variety of safety features to ensure the user’s safety during operation. These safety features help reduce the occurrence of accidents and injuries. The MQS-9B micro switch can also be used to implement some safety functions, such as disabling engine or blade operation under certain conditions (for example, the blade guard is not closed).

When the user releases the blade control lever, the braking system automatically stops the rotation of the blade. This prevents danger from accidentally hitting obstacles or performing other operations while the blade is running. The trimmer may be equipped with a starting safety device such as a brake lever, grip, or other specific device that requires pressing and holding before the engine can be started. Lawn trimmers often have blade guards designed to reduce direct exposure to the user and reduce the risk of accidental injury.

The trimmer may be equipped with an emergency stop button that the user can press immediately to stop the engine and blades in the event of an emergency. Advanced trimmers may be equipped with human sensor technology that can immediately stop the blades if it detects that the user has moved away or lost control. With adjustable cutting height, users can adjust the distance between the blade and the ground as needed to avoid unnecessary contact and improve safety. When cleaning or servicing the trimmer, make sure the blades have stopped spinning and the engine is turned off. Some trimmer designs make it easier to access and clear the blade area during the clearing process.

5. Other function controls of the lawn mower

Some trimmers may have additional functions in addition to engine start/stop and blade operation, and are operated using microswitches or other control elements. Depending on the specific design, micro switches can also be used to control other functions, such as adjusting speed, adjusting cutting height, etc.

The trimmer may have adjustable speed. A microswitch or similar control element can be used to adjust the trimmer’s operating speed. Trimmers often allow the user to adjust the distance of the blade from the ground to achieve different cutting heights. This feature can be adjusted via microswitches or other controls.

Lawn cutters (especially self-propelled ones) may allow the user to control the direction of movement of the machine. This can be achieved via control elements such as microswitches or joysticks. If the trimmer is equipped with bags or containers that collect lawn clippings, there may be controls for unloading those bags or containers.

The trimmer may have an electric starter assist feature to make starting the engine easier. Corresponding controls can be used to activate or deactivate this function. Lawn trimmers have headlights and may have a control element to enable or disable the light.

6. Durability and protection of the lawnmower

Durability and protection of lawn mowers are key design considerations because they are often used in harsh outdoor environments where they may be exposed to vibration, moisture, dust and other adverse conditions. Lawn trimmers are usually equipped with a blade guard, which is an important safety design to reduce the risk of the user coming into direct contact with the blade. In addition, engines and other critical components may also be designed with durable shields or covers to protect them from external influences.

Lawn trimmers often face vibration and shock, so anti-vibration technology may be incorporated into the design to lessen the impact of vibration on key components. This extends the life of the trimmer and improves its performance stability. Since lawnmowers are often used in humid environments, the engine and electrical parts may be waterproofed to prevent moisture from intruding and damaging key components.

Lawn trimmer switches and control elements, including microswitches, buttons, and handles, typically feature durable materials and designs to ensure they stand the test of time with heavy use. The mower’s chassis and frame may feature sturdy materials and construction to resist impact, friction, and other external stresses, increasing overall durability.

Designing a trimmer that is easy to maintain can make routine maintenance less difficult. This includes easy-to-remove parts, cleaning channel design, and easy-to-replace blades. Engines are usually equipped with effective air filtration systems to prevent dust and particulate matter from entering the engine and keep the engine running properly.

Adaptable to different lawns and terrains

Trimmers are often designed to adapt to different lawns and terrains to provide the best cutting performance and stability. Lawn trimmers often come with an adjustable cutting height feature, allowing users to easily adjust the distance between the blades and the ground as needed. This makes it easier to adapt to lawns of different heights.

The lawn trimmer comes with large tires that allow for easier movement on different terrains. Large tires provide better handling and allow the trimmer to adapt to uneven ground. Advanced or professional trimmers may come with a four-wheel drive system, which provides better traction, allowing them to handle rough or slippery surfaces with ease.

The lawnmower is designed to have strong off-road capabilities and can adapt to a variety of terrains, such as slopes, ditches or tight areas around trees. Lightweight lawn mowers are easier to maneuver and more adaptable. The lightweight design makes it easier to operate the trimmer on different terrains.

The trimmer has a variable speed system that allows users to adjust the forward speed of the trimmer according to the conditions of the lawn, thereby better adapting to different working environments. The blade braking system ensures that the rotation of the blade can be quickly stopped when needed, increasing safety in different situations. The control lever of the lawn trimmer is designed to be adjustable, allowing users of different heights to use the lawn trimmer comfortably, improving the convenience and adaptability of operation.
