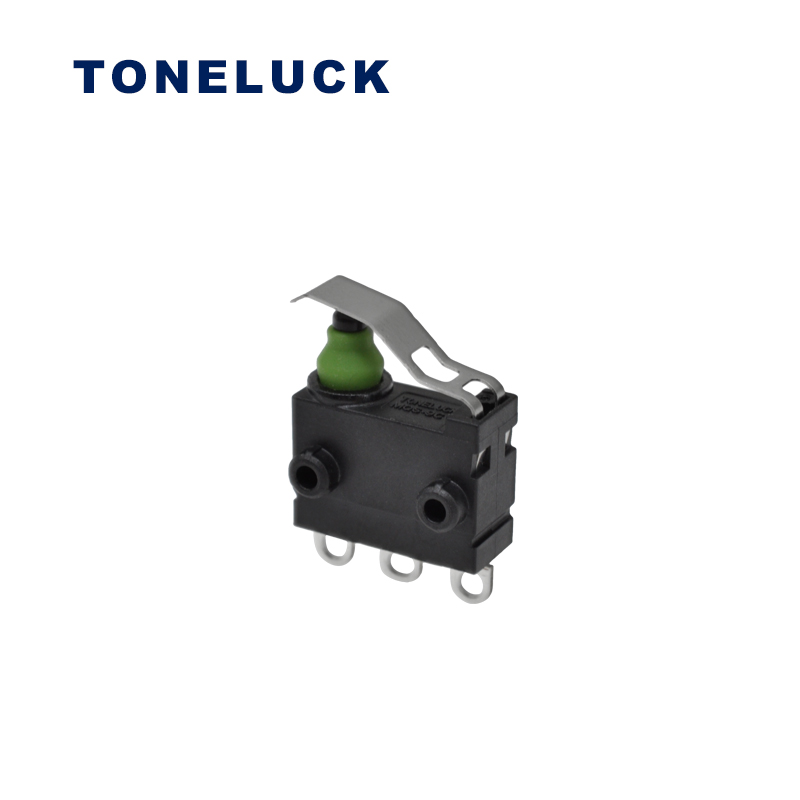

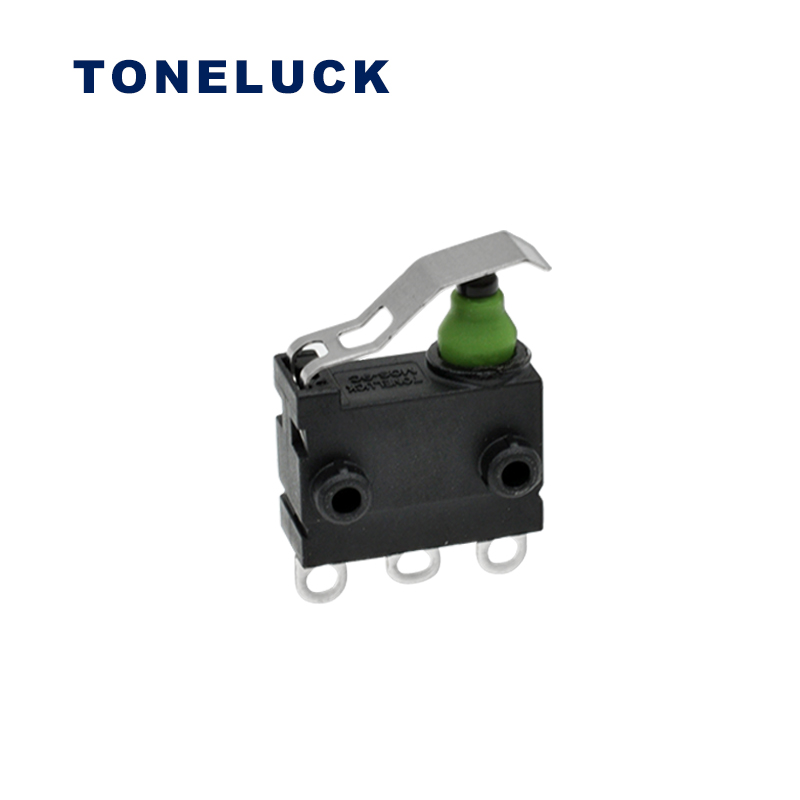

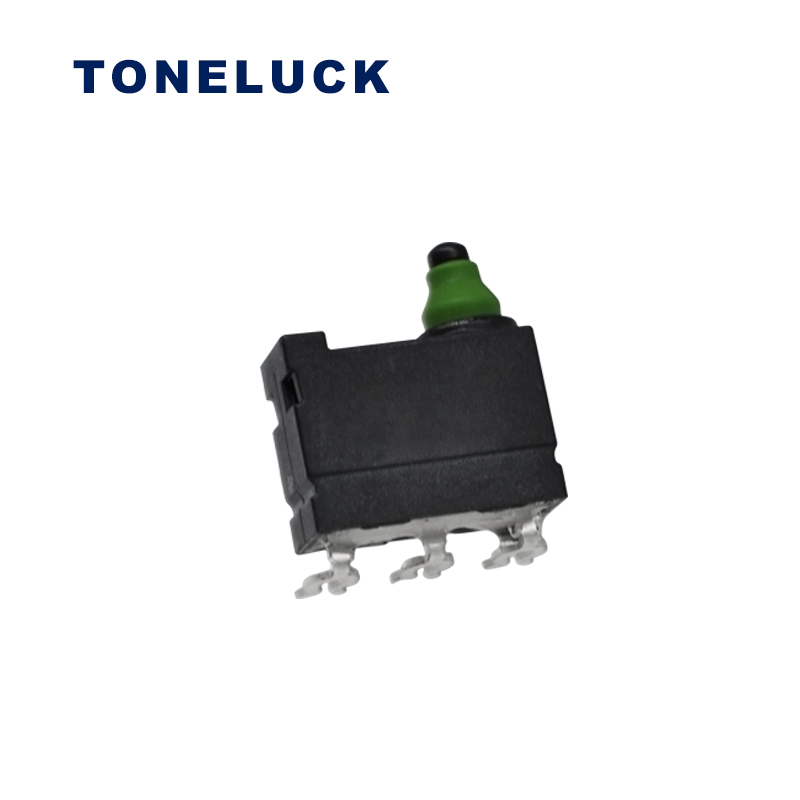

MQS-9C Water Proof Micro Switch Ordering Introduction
Series Electrical rating Location Pin Terminal Type Lever Type – Version
MQS-9C 1= 100mA 30VDC;10mA 14VDC,SPDT A=Side L, 0.8mm A=Angled PCB pins, side L 00 = No lever Standard Version: 01
2= 100mA 30VDC;10mA 14VDC,SPST-NC B=Side R, 0.8mm B=Angled PCB pins, side R 01= 1# lever Custom-made:02,03,04,etc.
3= 100mA 30VDC;10mA 14VDC,SPST-NO C=Both Side, 0.8mm C=Straight PCB pins 02=2# lever
D=Side L, 1.5mm D=Solder terminal Custom-made:03,04,etc.
E=Side R, 1.5mm E=Interlock terminal,side L
F=Both Side, 1.5mm F= Interlock terminal,side R
G=Side L, 2.5mm P= Interlock2 terminal,side L
H=Side R, 2.5mm Q= Interlock2 terminal,side R
J=Both Side, 2.5mm W=Wires Specification: eg.W1,W2,W3,etc
K=Side L, 5.0mm
L=Side R, 5.0mm
M=Both Side, 5.0mm
N=No Location Pin
Specification
Actuation Side IP Protection IP67
Terminal Side IP Protection IP00
Operation Force 150±50gf
Operation Position 9.45mm±0.20 (NC), 8.95mm±0.2 (NO)
Electrical rating 100mA 30VDC;10mA 14VDC , 40T85
Mechanical Life 500,000 cycles
Electrical Life 100mA 30VDC 50,000 cycles, 10mA 14VDC 200,000 cycles
Operating Force 150±50gf
Insulation Resistance 50 MΩ Min.
Dielectric Strength 500VAC for 60±5 sec
Housing UL94 HB
Contact Resistance 500mΩ max. (initial)
