Short Description

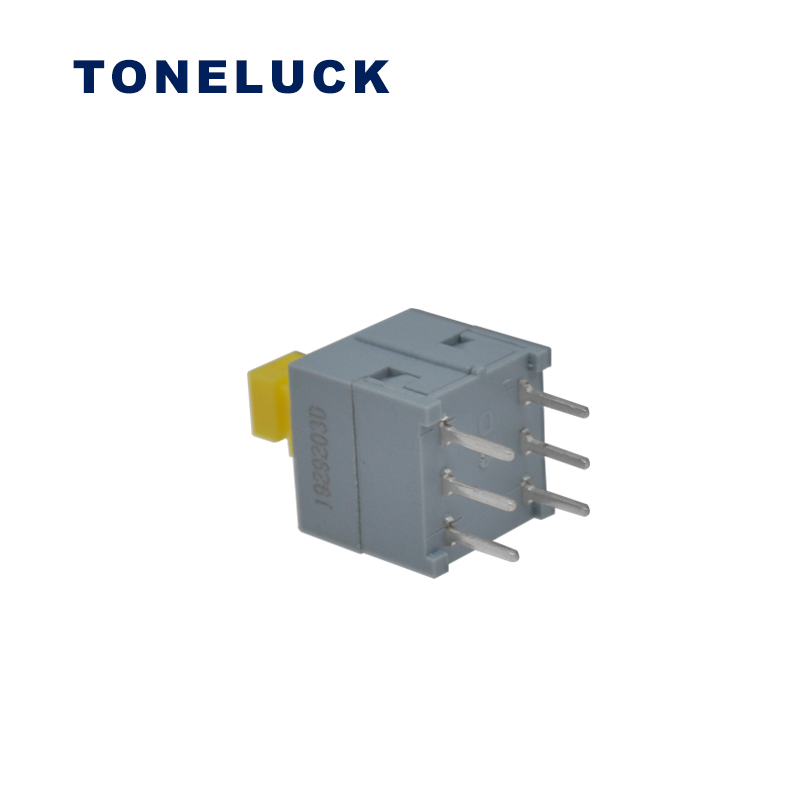

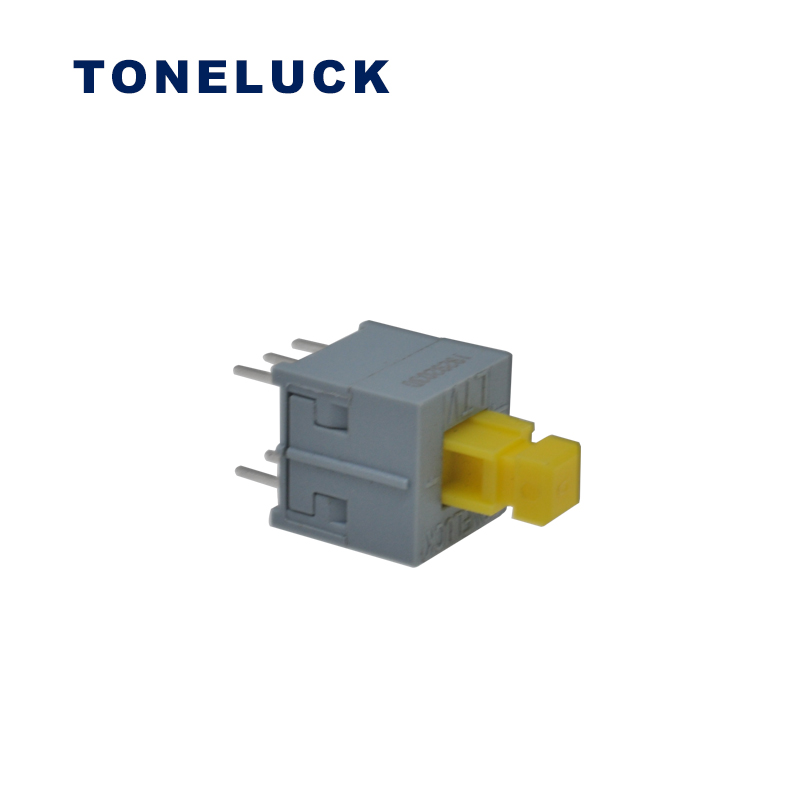

12 Volt Push Button Switch 1A DPDT Momentary 6 PCB Pin

LTV Button Switch
Product name: LTV-75-SN5.7B-BN
Product applications: Precision instruments, industrial equipment, household appliances, etc.

SEND EMAIL TO US

DOWNLOAD AS PDF

Details Description

12 Volt Push Button Switch 1A DPDT Momentary 6 PCB Pin

Specification

Electrical Rating	10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp	-40℃ to +85℃
Mechanical Life	500,000 cycles Min.
Contact Resistance	50mΩ Max. (initial)
Operating Force	150gf Max.
Insulation Resistance	100ΩM Min.
Dielectric Strength	500VAC for 60 ± 5 sec.
Housing:	UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover)
