21 Amp Micro Switch Short Description
The 21 Amp micro switch is available from Toneluck, and E43CN-CN00AG-01 is one of them with SPST normally open circuit code in working temperature 40T85. A free sample is available.

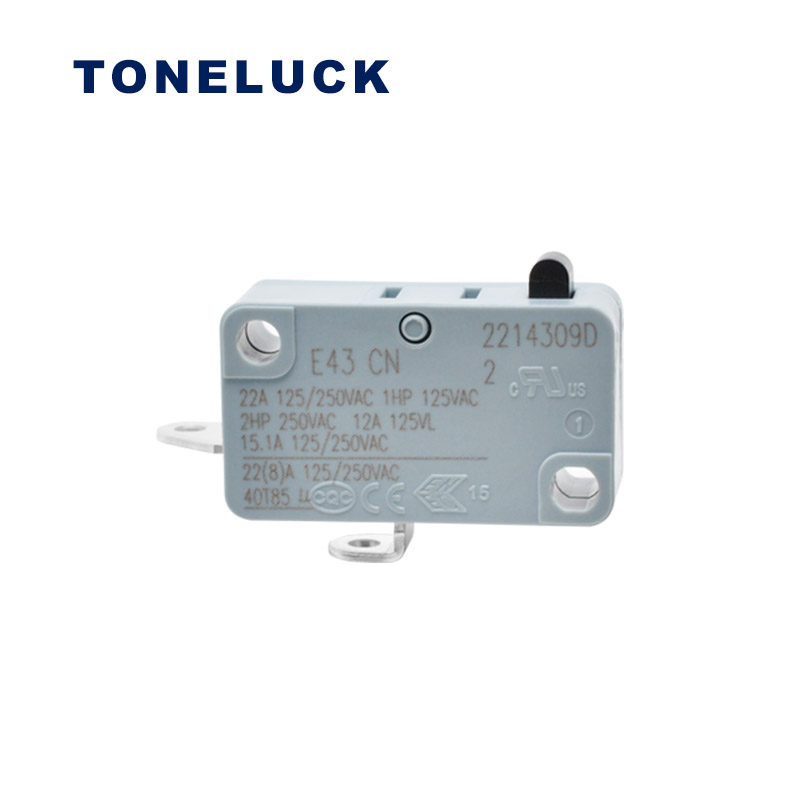

E Micro ON OFF Switch
Product Model: E43CN-CN00AG-01
Product applications: Smart home devices and industrial control, such as household gas appliances, washing machines, dishwashers, etc.
21 Amp Micro Switch Details Description
The 21 Amp micro switch is available from Toneluck, and E43CN-CN00AG-01 is one of them with SPST normally open circuit code in working temperature 40T85. A free sample is available. In order to meet the requirement of Global safety certification, the switch is approved by the CQC, ENEC, UL, and CQC in the rating of “22(8)A 125/250VAC; 1HP 125VAC; 2HP 250VAC; 15.1A 125/250VAC; 12A, 125VL”. Meanwhile, the shell material is thermoplastic with a UL 94V-0 fire rating. So it will have a good performance in it. For more E series micro switches, please click the link to see more.
All in all, the Toneluck microswitch is famous and high-quality, especially in the automotive industry. Welcome to contact us to have more detailed information.
E43CN-CN00AG-01 Snap Action Switch Video

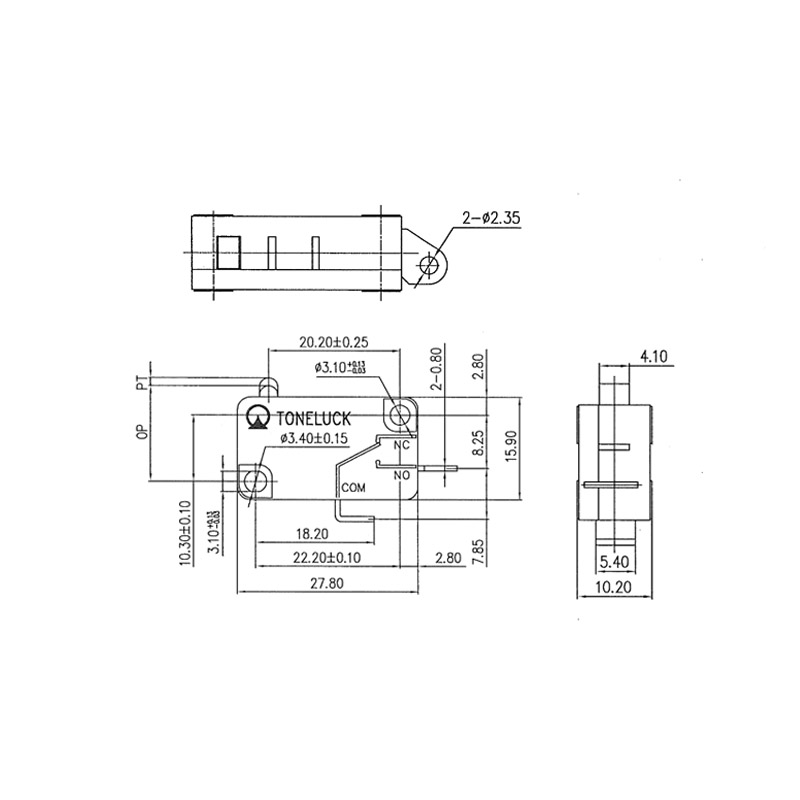

21 Amp Micro Switch Specification
| Model No. | E43CN-CN00AG-01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 22(8)A 125/250VAC; 1HP 125VAC; 2HP 250VAC; 15.1A 125/250VAC; 12A, 125VL |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 200±30gf |
| Release Force (RP) | 55gf Min. |
| Pre-Travel (PT) | 1.2mm Max. |
| Over- Travel (OT) | 1.25mm Min. |
| Movement-Differential (DT) | 0.4mm Max. |
| Operation Position (OP) | 14.7±0.5 mm |
