6 Pin Switch Short Description
PBN-N2 is 6 Pin Switch with PCB terminal and momentary function, which is also a 2 poles push-button switch certificated in 0.1A 30VDC rating. Its bracket on its body can help it to install in the device.
PBN series push button switch
Product name: PBN-S2C35T-AAG
Product applications: The PBN series button switch has a wide range of applications in precision instruments, industrial equipment, household appliances, entertainment equipment (Audio devices, like the Audio 1176 ), etc.
6 Pin Switch Details Description |

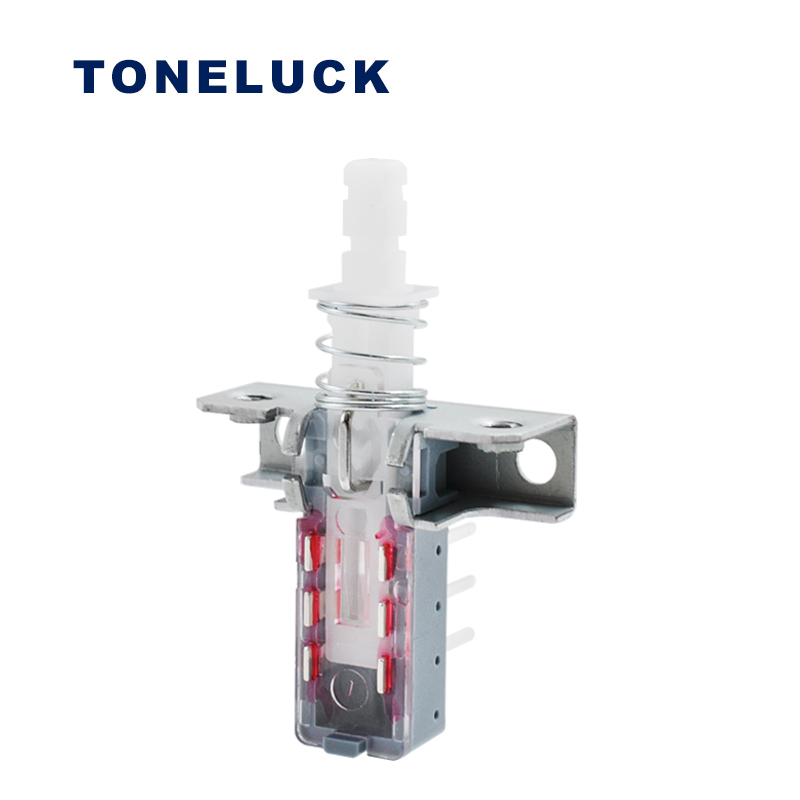

The PBN-S2C35T-AAG is 6 Pin Switch with PCB terminals and a momentary function, which means it will be installed in the PCB and when you push it, it will return back to the free position. But if you need the self-lock function type, it is also available from us. Meanwhile, this is also a 2 poles push-button switch certificated in 0.1A 30VDC rating, its PT also has 2.5 and 3.5mm for options, people can choose the need according to your requirement. Besides, the bracket on its body can help it to install in the device.
6 Pin Switch Specification
| Electrical Rating | 0.1A 30VDC or 1A 25 VDC |
| Operating Temp | -10℃ to +60℃ |
| Total Travel | 4.8±0.5mm |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 400gf ±100gf |
| Function | 2P & Momentary & with bracket |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
