Short Description
MQS-8 double pole microswitch has the independent current which is different from other 2P switches, it has 2 actuators with IP67 waterproof rate. It will be used in automobile door locks, auto seats, EV chargers, etc.

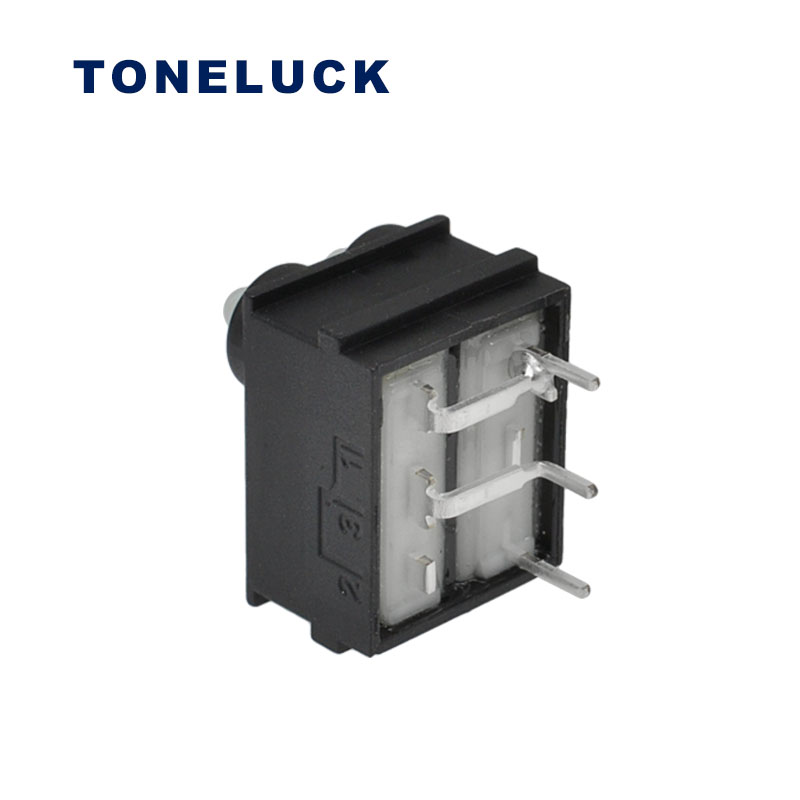

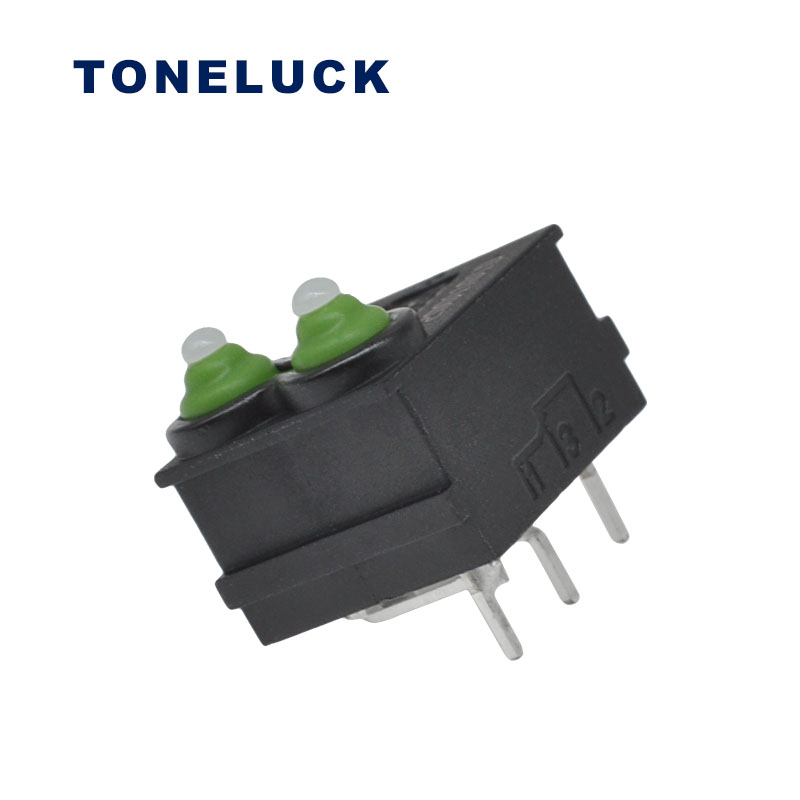

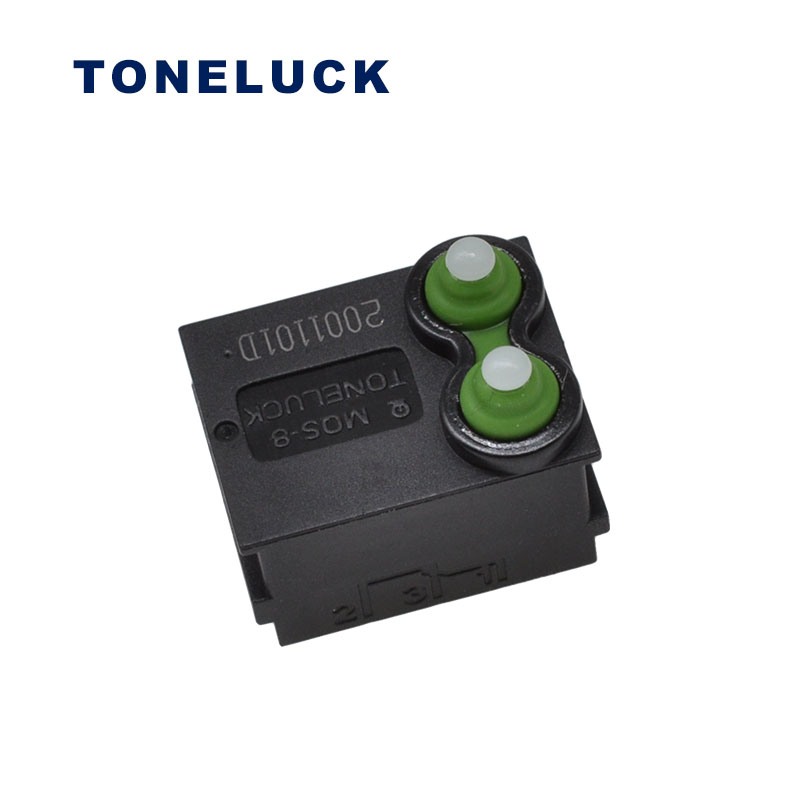

MQS-8 Automobile Micro Switch
Product name: MQS-8-A003
Product applications: Automotive parts products, such as car door locks, car seats, EV chargers, and so on.
Details Description Double Pole Microswitch
The MQS-8 double pole microswitch has two independent currents which are different from other 2P switches, I mean one micro switch has 2 independent SPST current codes. So it has 2 actuators on the switch, and the waterproof rate of our MQS-8 series is IP67. Generally, it will be used in automobile door locks, auto seats, EV chargers, etc.
The rating of the MQS-8 double pole microswitch is 10~50mA 12~24 VDC, and its electrical cycle is 250,000 cycles at least. So, this is the reason it can be used in automotive products because the auto parts require a long-life switch.
Specification of Double Pole Microswitch
| Electrical Rating | MQS-8-A003 |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 160±80gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
Related Products
Conclusion
The MQS-8 double pole microswitch is very few to see on the market but it can be used in some devices other microswitches can not. Meanwhile, it is also high quality and reliable, which was approved by many automotive part manufacturers. Welcome to contact us to have more detailed information.
