ENEC Micro Switch Short Description
ENEC Micro Switch means it has the certification of ENEC, which is high-quality European Mark for electrical products that demonstrates compliance with European standards (EN).

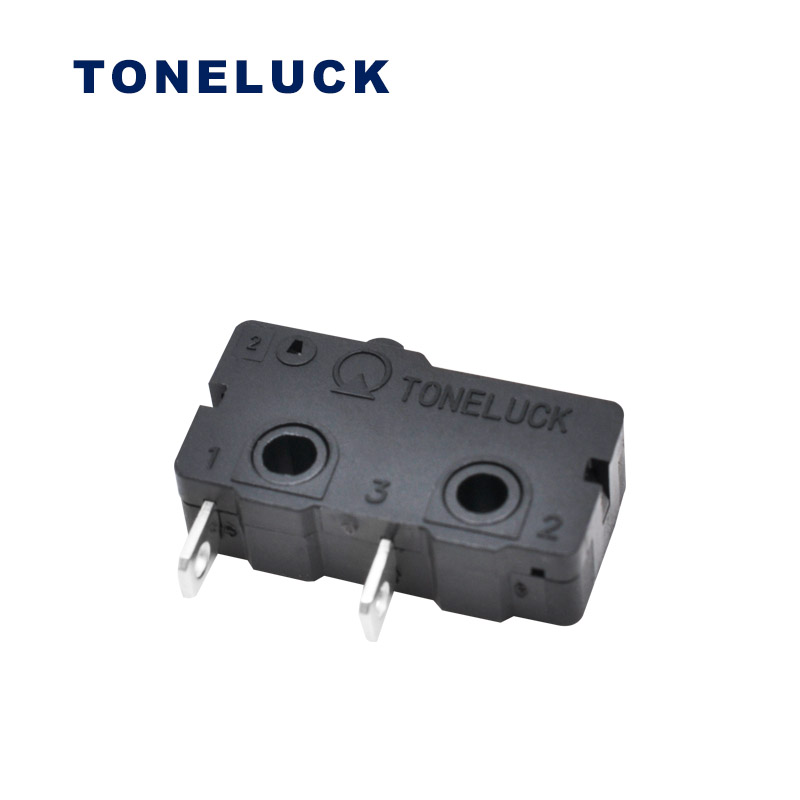

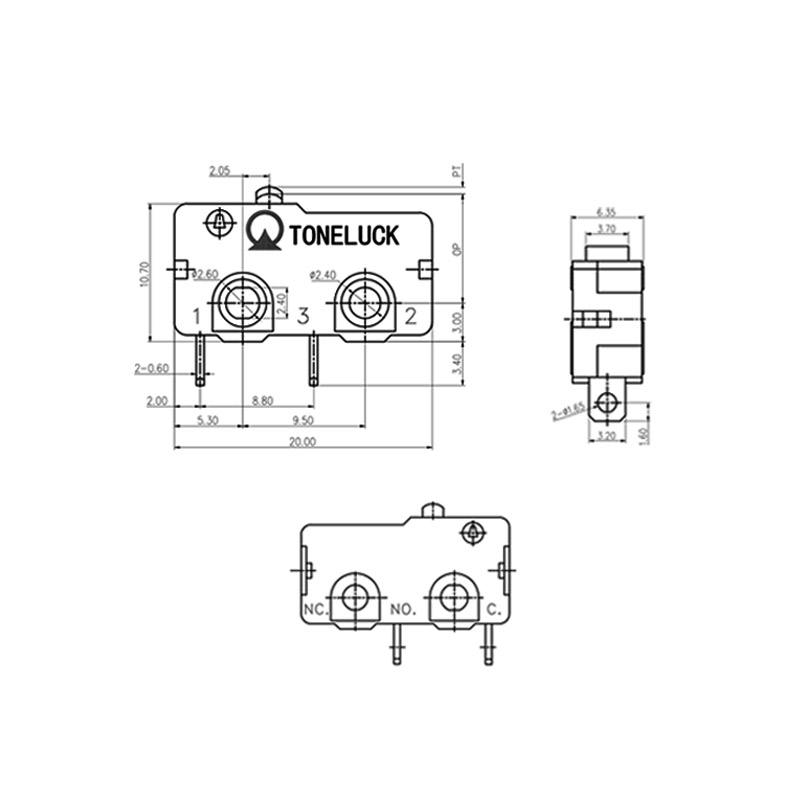

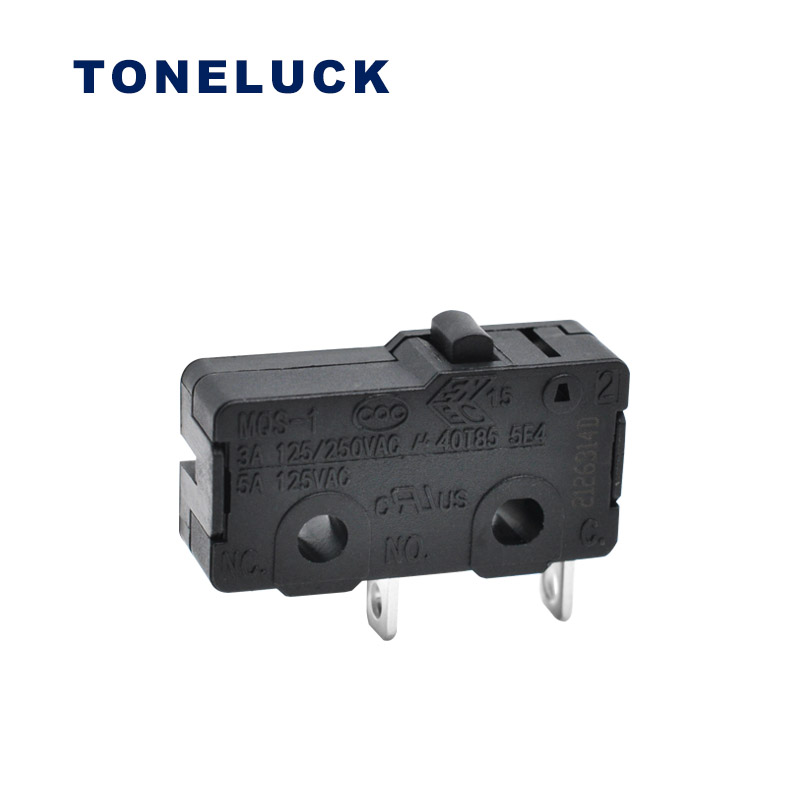

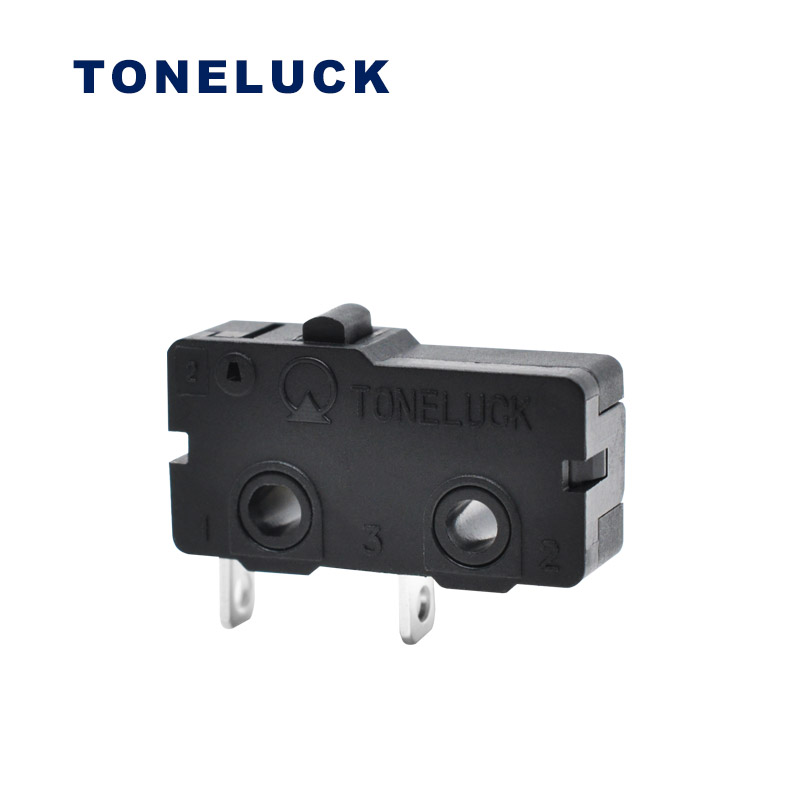

MQS-1 Microswitch
Product MPN: MQS-1CAF300-S01
Product applications: household appliances, like the office machine, aquarium feeder, hand dryer, and so on.
ENEC Micro Switch Details Description
The ENEC Micro Switch means a switch has the ENEC certification, which is a demonstration of electrical products with European standards. So, our switch can be sold to European market. Meanwhile, the MQS-1 switch not only has the ENEC certification but also has the UL, CUL, and CQC to ensure it can be sold all over the world.
The MQS-1 is one of our popular models, it has different kinds of terminal, operating force, lever types, working temperature, current code(SPDT, SPST-NC, SPST-NO), and current for your options. For more information welcome to contact us or link to the MQS-1 to see.
Specification
| Electrical Rating | MQS-1CAF300-S01 |
| Operating Temp | -40℃ to +85℃ (40T85) |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 160±30gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
