Hinge Lever Micro Switch Short Description
MQS-1CAF402-S01 hinge lever micro switch with SPST normally open 2 solder terminals. 40T85 3A 5A 1250/250VAC with UL, CQC, ENEC certificates, free sample!
MQS-1 Microswitch
Product name: MQS-1CAF402-S01
Product applications:Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Hinge Lever Micro Switch Details Description

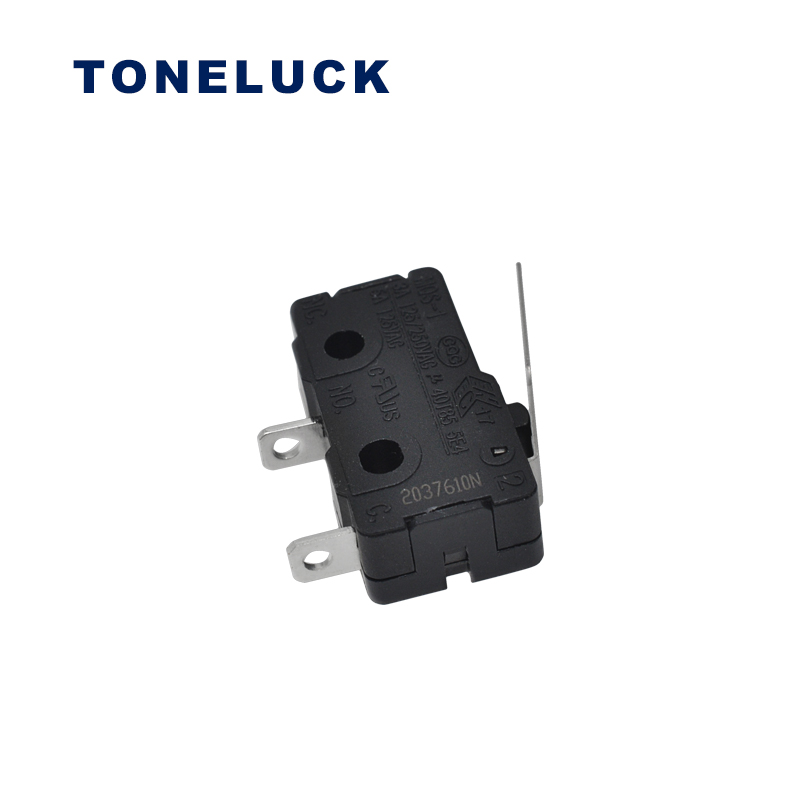

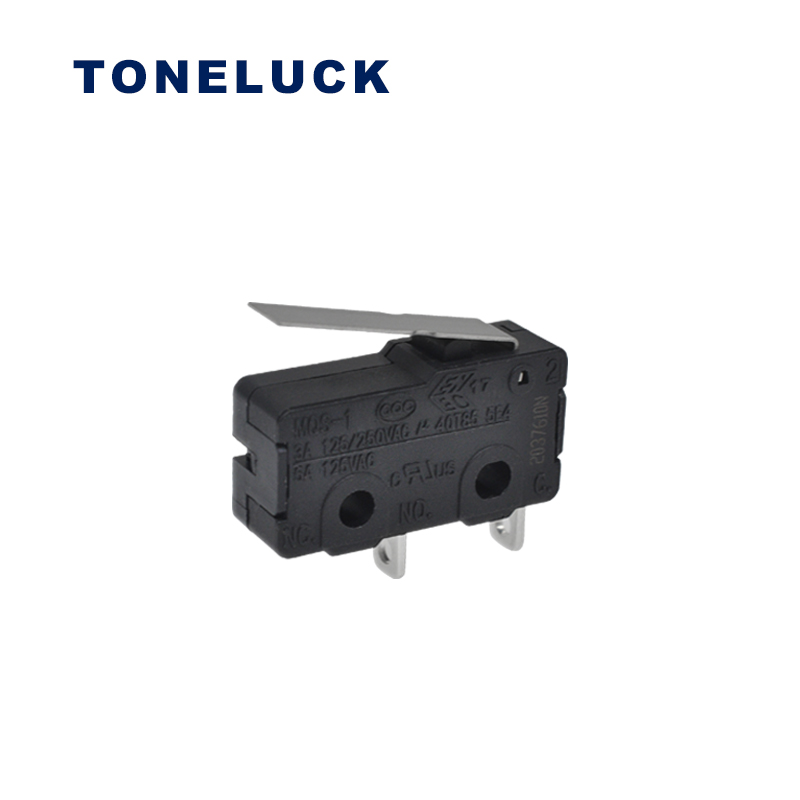

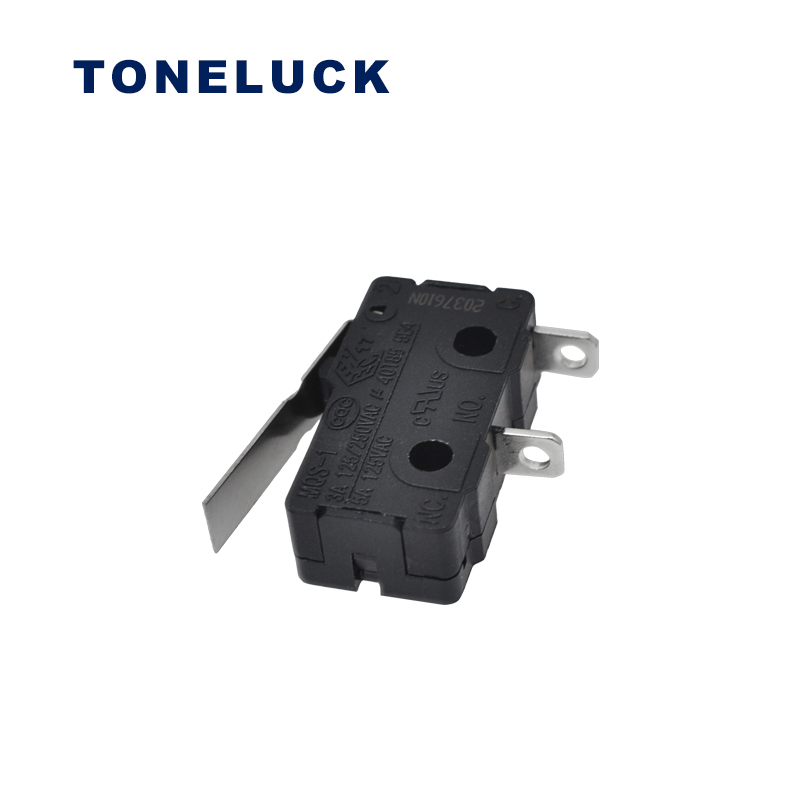

MQS-1CAF402-S01 hinge lever micro switch with 230g Operation Force. And this lever can increase the PT of the switch so that it can be used in more long travel requirement devices. Meanwhile, also has SPST normally open with 2 solder terminals to connect with wires. Besides, the rating is 40T85 3A 5A 1250/250VAC and which is certificated by UL, CQC, ENEC certificates, welcome to contact us to get the certification.
What’s more, we will support you with testing and assessing in the earlier stages of the project. Such as the free samples, datasheets, quotations, and so on!

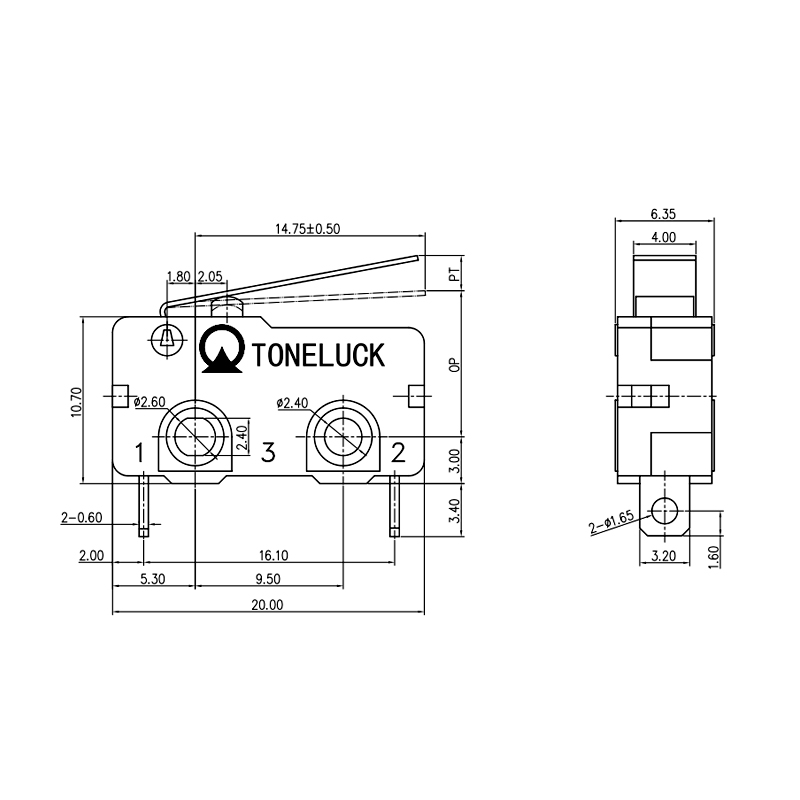

Hinge Lever Micro Switch Specification
| Model No. | MQS-1CAF402-S01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 3A 125/250VAC (ENEC, CQC) 50,000 cycles Min.
5A 125VAC (UL, cUL) 6000 cycles Min. |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Operation Force (OP) | 65±20gf |
| Release Force (RP) | 15 gf Min. |
| Over- Travel (OT) | 1.0 mm Min. |
| Movement-Differential (DT) | 1.0 mm Max. |
| Operation Position (OP) | 9.4±1.0 mm |
| Free Position(FP) | 12.5 mm Max. |
