Household Appliances Micro Switch

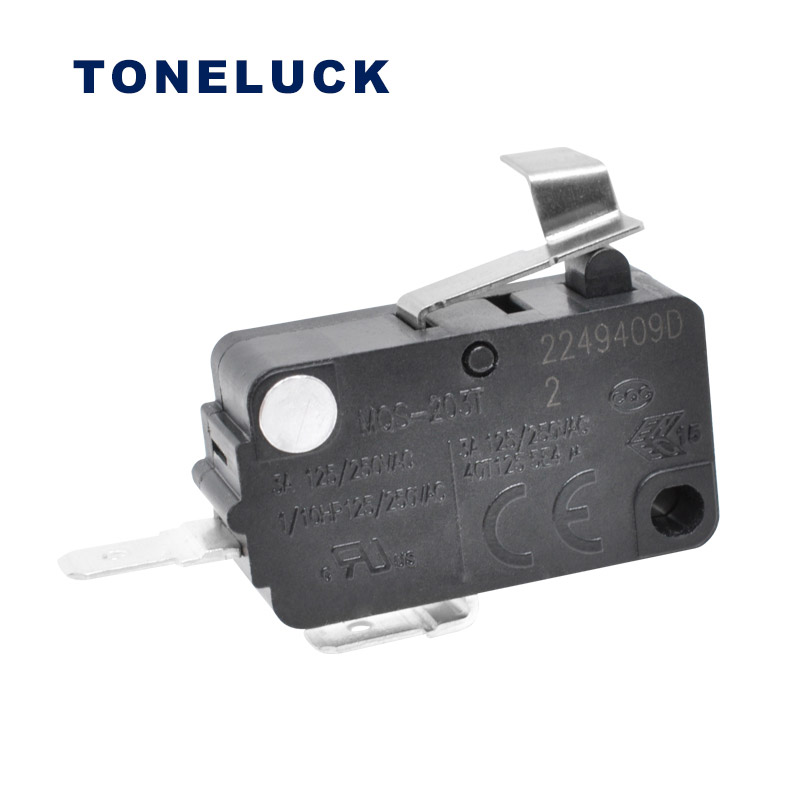

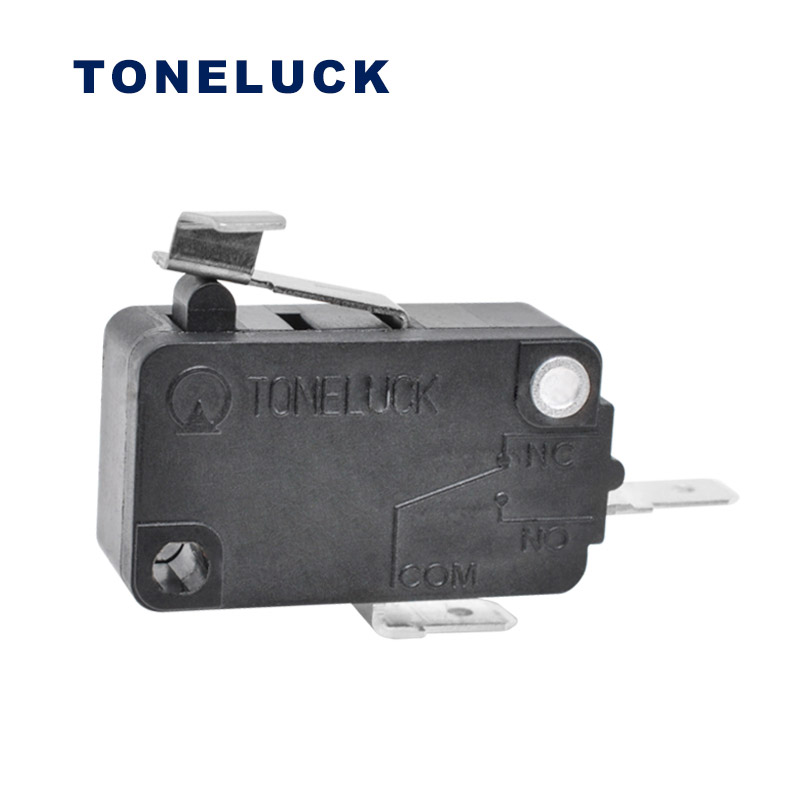

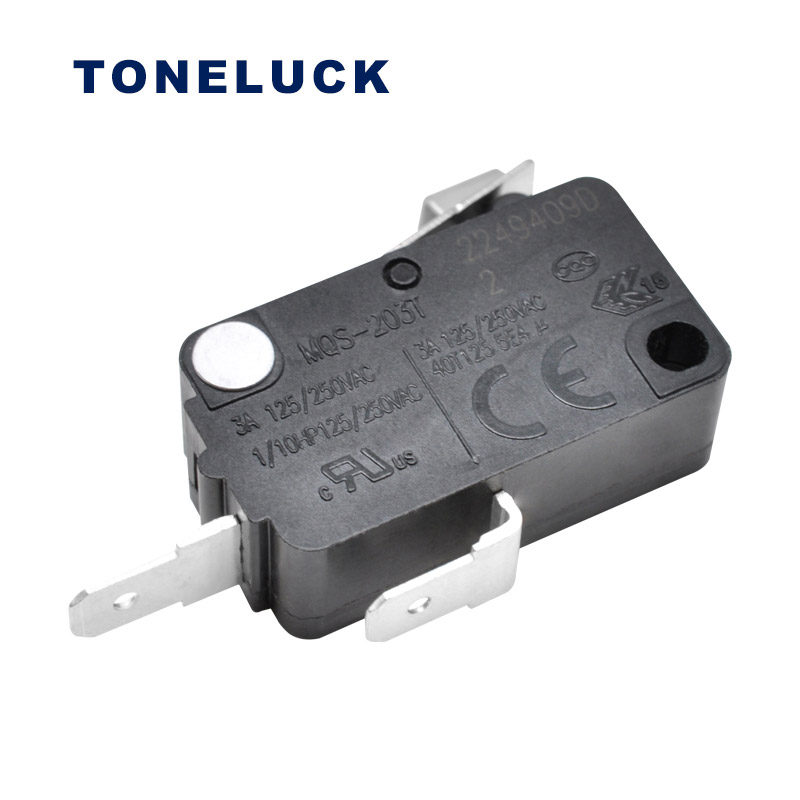

Household Appliances Micro Switch MQS-203TA49BCM-02
MQS-2 Limit Micro Switch
Product name: MQS-203TA49BCM-02
Product applications: electronic toy car timer, car washer, car washing machine, oven, oven, microwave oven, induction cooker, rice cooker, air fryer, kettle, dishwasher, wall breaking machine, wall breaking cooking machine, household appliances, electric push rod, treadmill lifting motor, diaphragm pump, water pump float, air purifier, etc
Household Appliances Micro Switch Details Description
The MQS-203TA49BCM-02 snap action micro switch is with a Lever and 3A 125/250VAC. certificated rating, which has the UL, cUL, ENEC, and CQC certificates for the customer. Meanwhile, the PBT switch shell material also can meet the requirement of UL 94V-0, which is a high flame rating. Besides, if the working temperature is not enough for you, we also have other versions for options, like the T125, T150, T200, and so on.
Household Appliances Micro Switch Specification
| Model No. | MQS-203TA49BCM-02 |
| Operating Temperature | -40℃ to +125℃ |
| Rating | 3A 125/250VAC;
1/10HP 125/250VAC; 3A 125/250VAC; |
| Mechanical Life | 1000,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Strap Handle |
| Operation Force (OP) | 170±35gf |
| Release Force (RP) | 50gf Min. |
| Pre-Travel (PT) | 1.6mm Max. |
| Over- Travel (OT) | 0.8mm Min. |
| Movement-Differential (DT) | 0.5mm Max. |
| Operation Position (OP) | 19.7±0.8 mm |
