High Temperature Micro Switch Short Description
Electrical life:100,000 times
Application range:Household appliances
Operating temperature:-40~85℃
Product name: L41CJ-BA02A1-01
Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
High Temperature Micro Switch Details Description

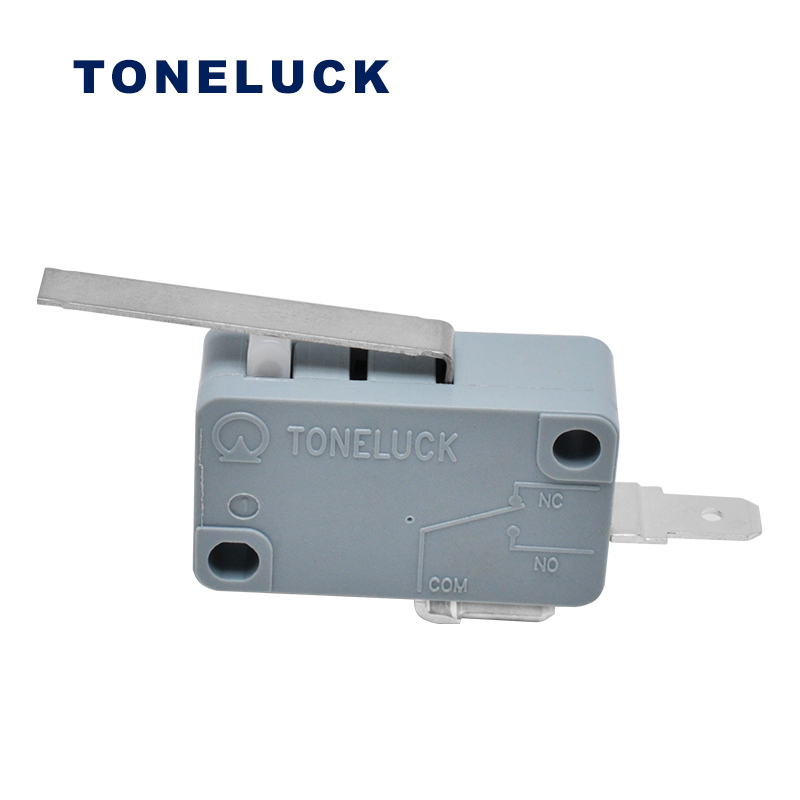

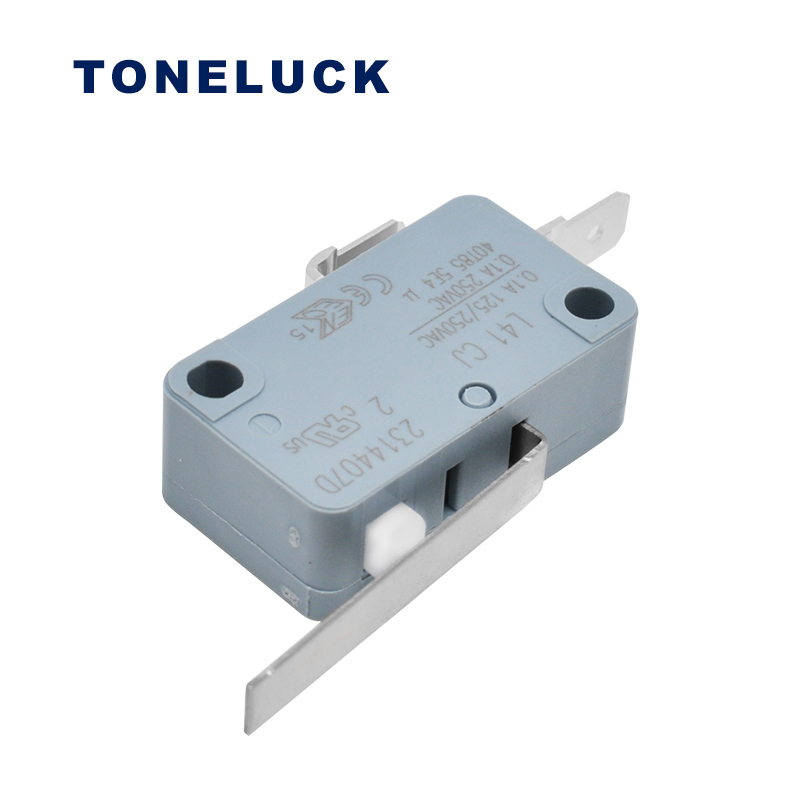

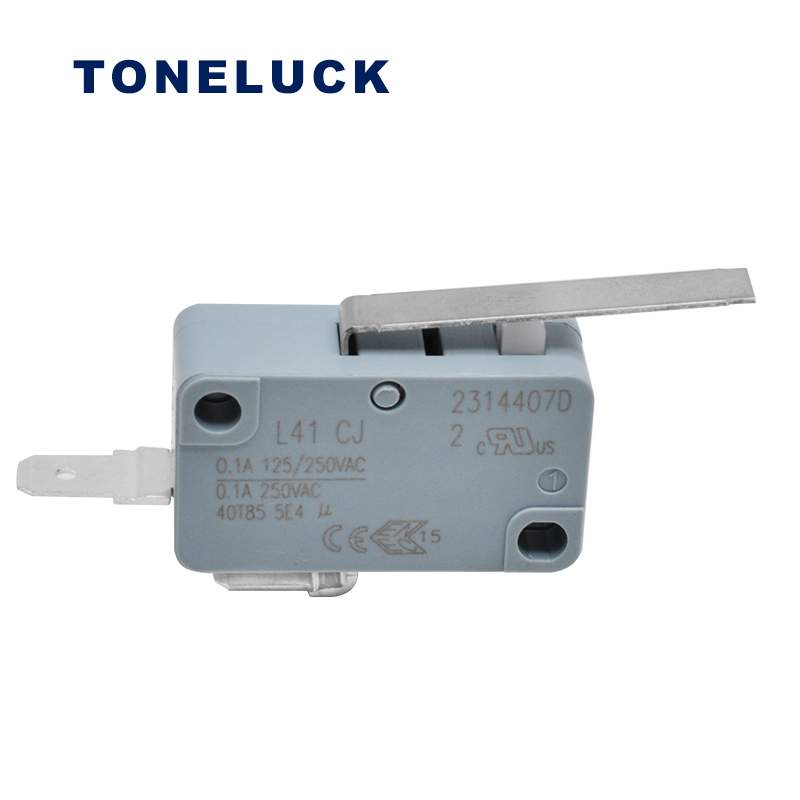

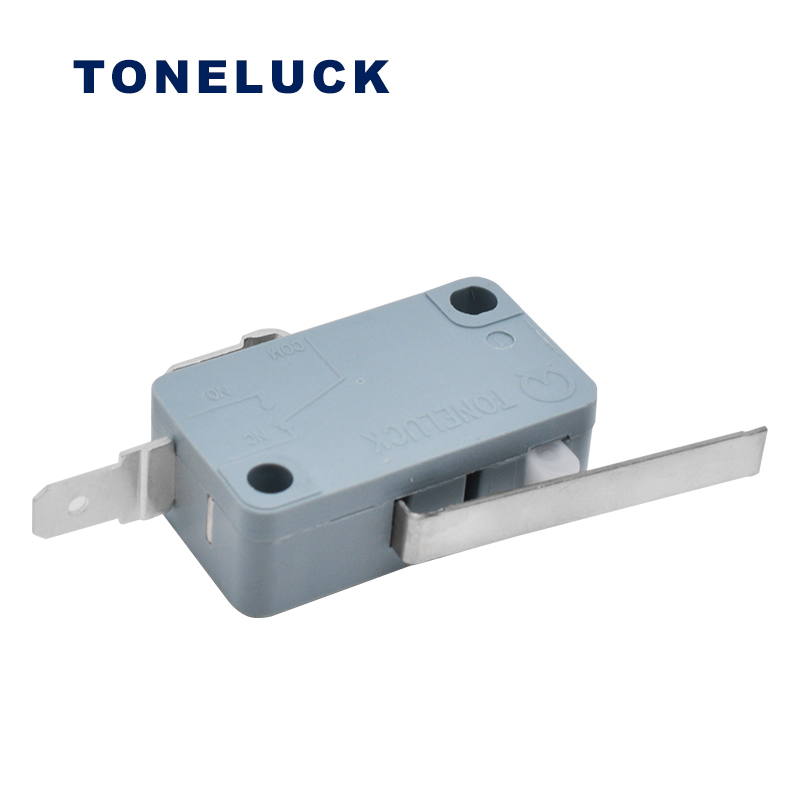

The L41CJ-BA02A1-01 is a high-temperature microswitch that can work in a 220℃ environment. Because of its special material, it has a good performance in high temperature conditions. Meanwhile, the snap action switch has the UL certification and can meet the requirement of UL1054 and UL858. In the UL test standard, the rating is 5A 125/250VAC with 100000 electrical minimum cycles.
Because the material is special, the price of this high temperature micro switch is expensive than the normal type. However, you get what you pay for, it can meet some special device.
High-Temperature Microswitch Specification
| Model No. | L41CJ-BA02A1-01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 0.1A 125/250VAC 100,000 cycles Min.
0.1A 250VAC 5000 cycles Min. |
| Mechanical Life | 1000,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Contact | Silver |
| Lever Type | Long Straight Lever |
| Operation Force (OP) | 70gf Max |
| Release Force (RP) | 15gf Min. |
| Pre-Travel (PT) | 2.5mm Min |
| Over- Travel (OT) | 3.3 mm Max. |
| Movement-Differential (DT) | 1.2mm Max. |
| Operation Position (OP) | 15.3±1.5 mm |
