Low Voltage Micro Switch Short Description
Professional low voltage micro switch supplier! This is a 5VDC to 16VDC sub miniature waterproof type microswitch with SPST normal open current code. Free sample.

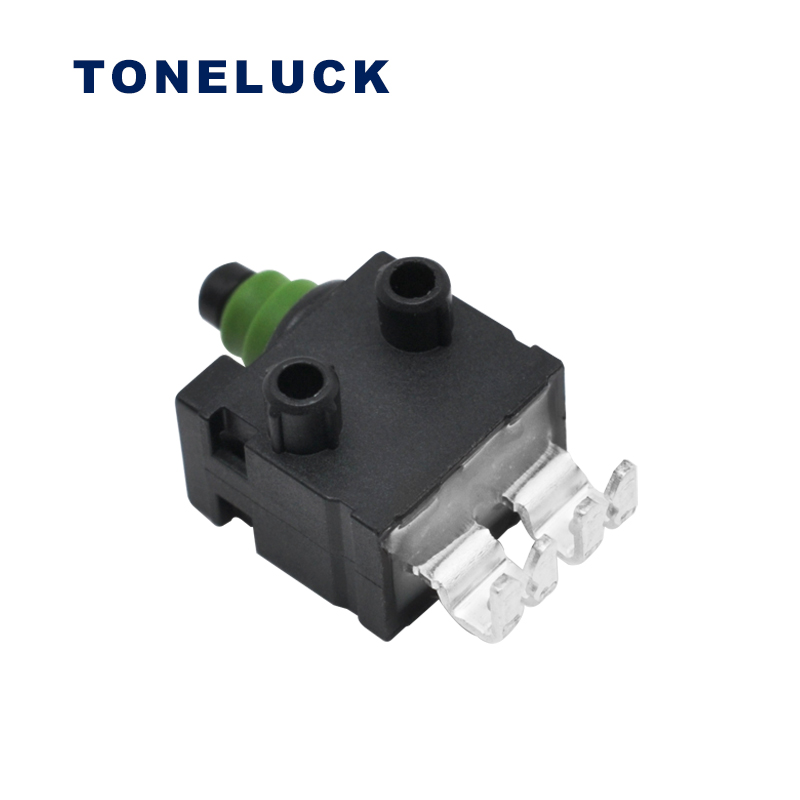

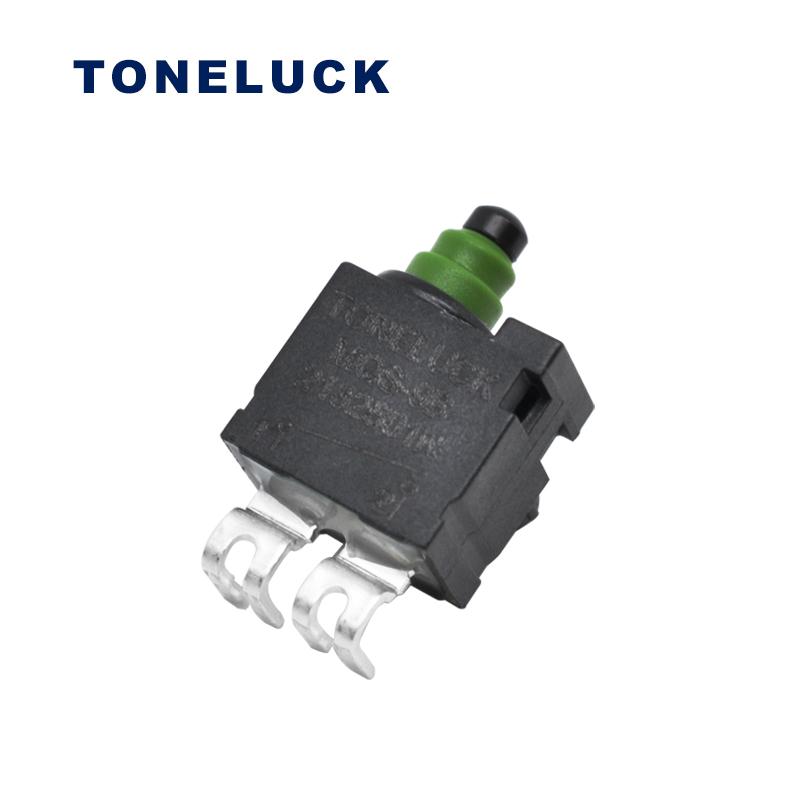

MQS-9B Microswitch
Product MPN: MQS-9B1AR00-B1(N)
Product applications: Automotive parts and electric tools.
Low Voltage Micro Switch Details Description
Professional low voltage micro switch supplier! The MQS-9B1AR00-B1(N) is a 5VDC to 16VDC subminiature waterproof type microswitch with SPST normal open current code for 1mA to 50mA. The dust & waterproof level is IP67, which means that it can against contact with objects greater than 1mm in diameter and immersion in water while under pressure between 15cm to 100cm. But if the micro switch is without leading wires, the terminal slide is not included.
Meanwhile, it is such a mini-size micro switch because its length is 8.3mm only, which means we can install it in a very small. However, we not only provide 1 kind of switches, we also provide many kinds of microswitches, as well as push button switches, door switches, pressure switches, and so on.
Low Voltage Micro Switch Specification
| Electrical Rating | MQS-9B1AR00-B1(N) |
| Operating Temp | -40℃ to +85℃ (40T85) |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 500mΩ Max. (initial) |
| Insulation Resistance | 100ΩM Min. |
| Operating Force | 100gf ±50gf |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic |
