MQS-1 Mechanical Micro Switch
The MQS-1 mechanical micro switch is high quality and wide range of parameters for choices, and this model is 5A 125/250VAC, SPDT circuit code with global safety certification. We provide the quote, datasheet, and free sample for company customers.
MQS-1 Microswitch
Product MPN: MQS-1AAF402-S01
Product applications: household appliances, like the office machine, aquarium feeder, hand dryer, and so on.
Mechanical Micro Switch Details Description

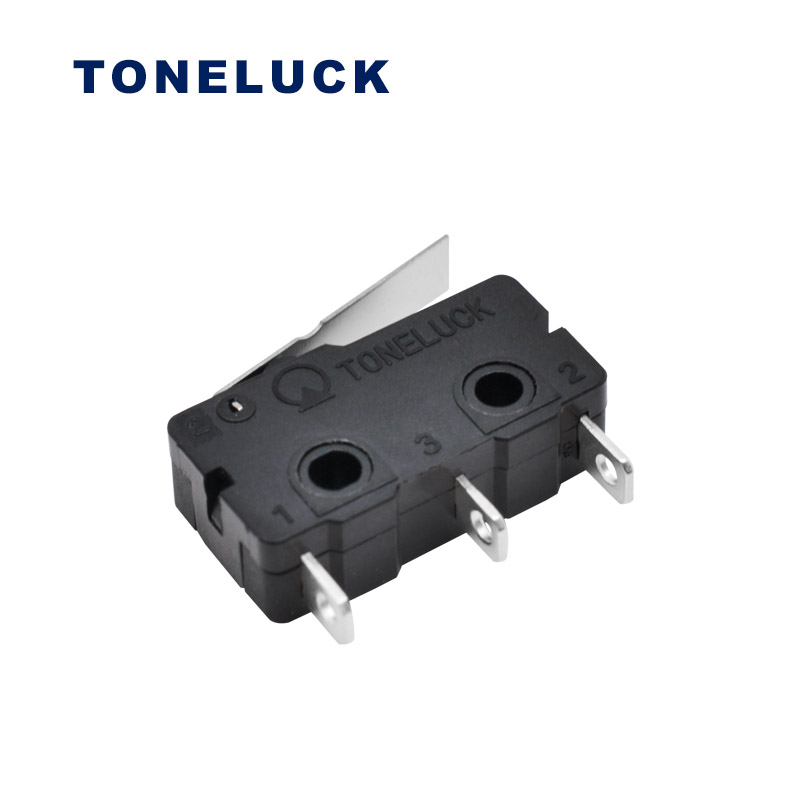

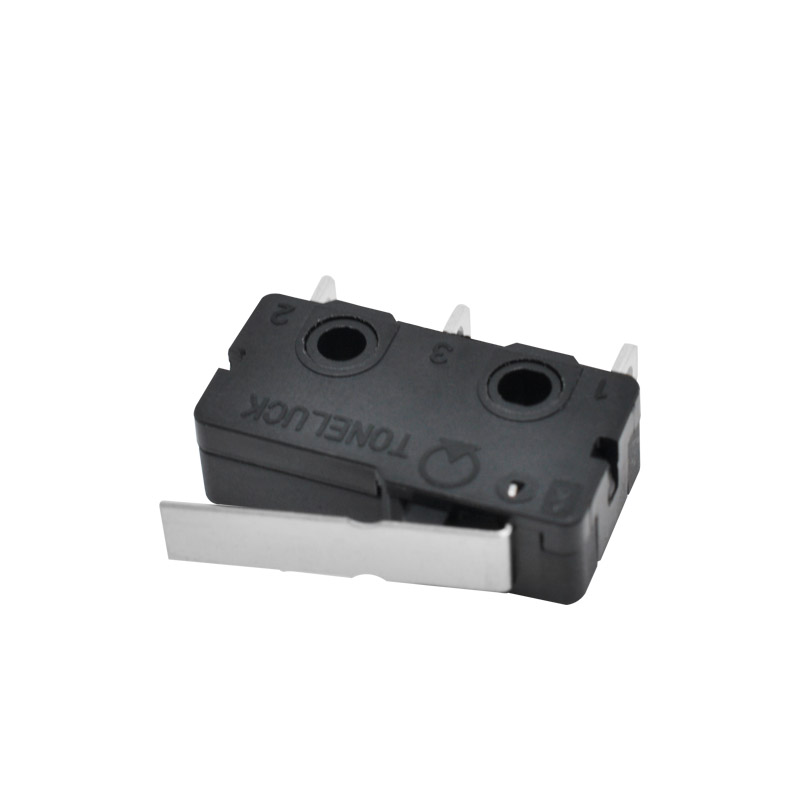

MQS-1AAF402-S01 is one of our mechanical micro switches, which has 3 solder terminals and a straight metal lever with 60 ± 20gf operating force. And its rating is 5A 125/250VAC 45T85 which has UL, ENEC, and CQC certifications. But the MQS-1 series has a wide range of parameters for choices, which has the “3A 125/250VAC”, “10.1A 125/250VAC”, “0.1A 125/250VAC”, “5A 30VDC”, and “6A 30VDC” for options. Buyers can choose as their requirement, welcome to contact us to do the model selection.
Meanwhile, this is the SPDT circuit code, which has COM, NO, and NC terminals to contact the wire but if you need the SPST NO or NC type is also available. Welcome to contact us, we will provide the quote, datasheet, and free sample for you.
Mechanical Snap Microswitch Specification
| Electrical Rating | MQS-1AAF402-S01 |
| Operating Temp | -40℃ to +85℃ (40T85) |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 60±20gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1500VAC for 60 ± 5 sec. |
| Housing: | UL94 V-0 fireproofing material |
