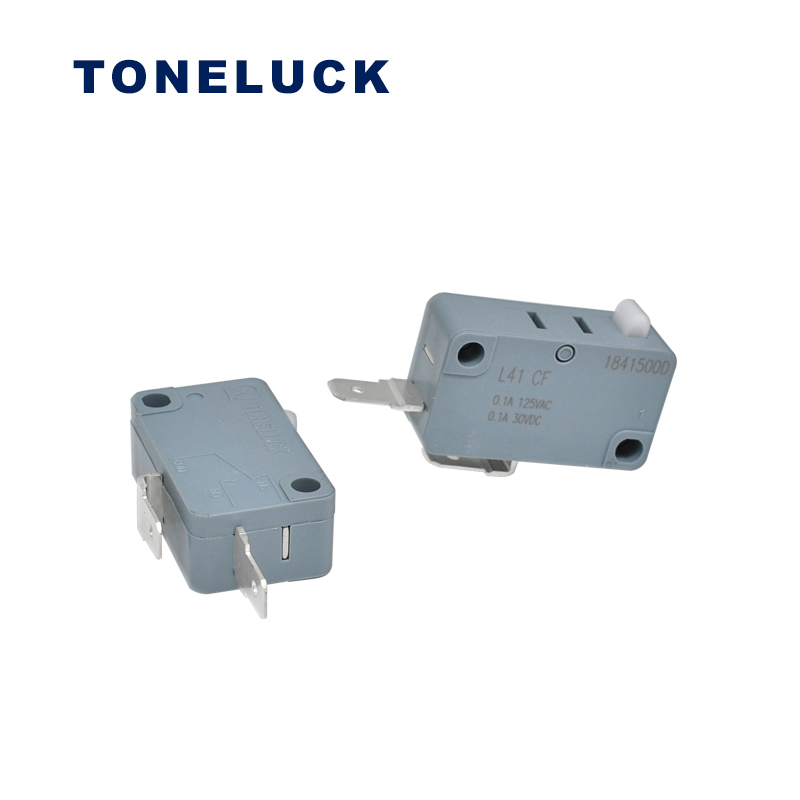

Micro Momentary Switch Short Description
The L41CF-BN00A2-02 micro momentary switch is a light operating force with normally open SPST current code, which is widely used in water heaters and boilers.

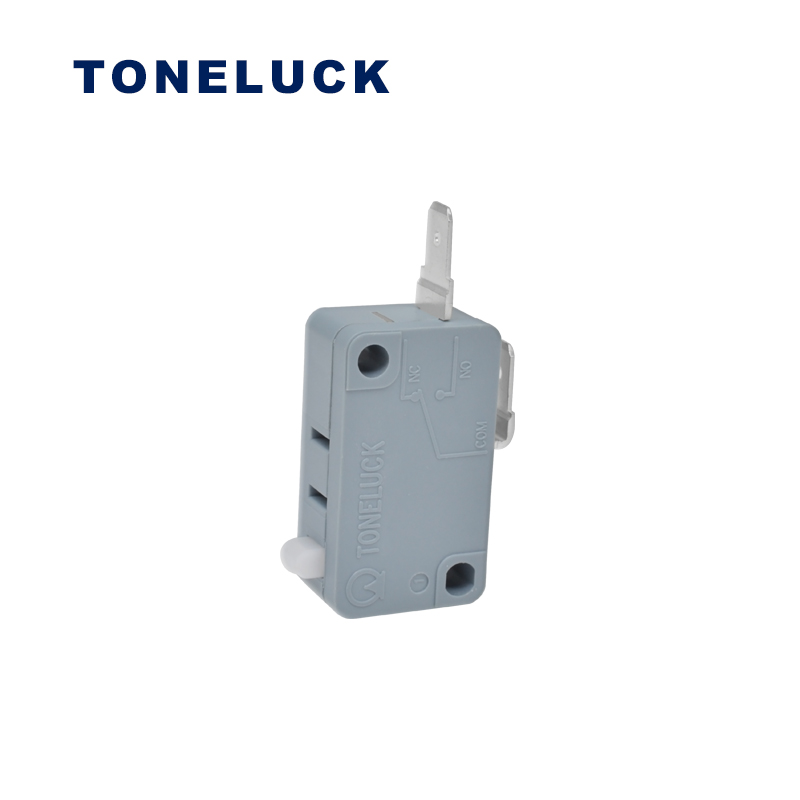

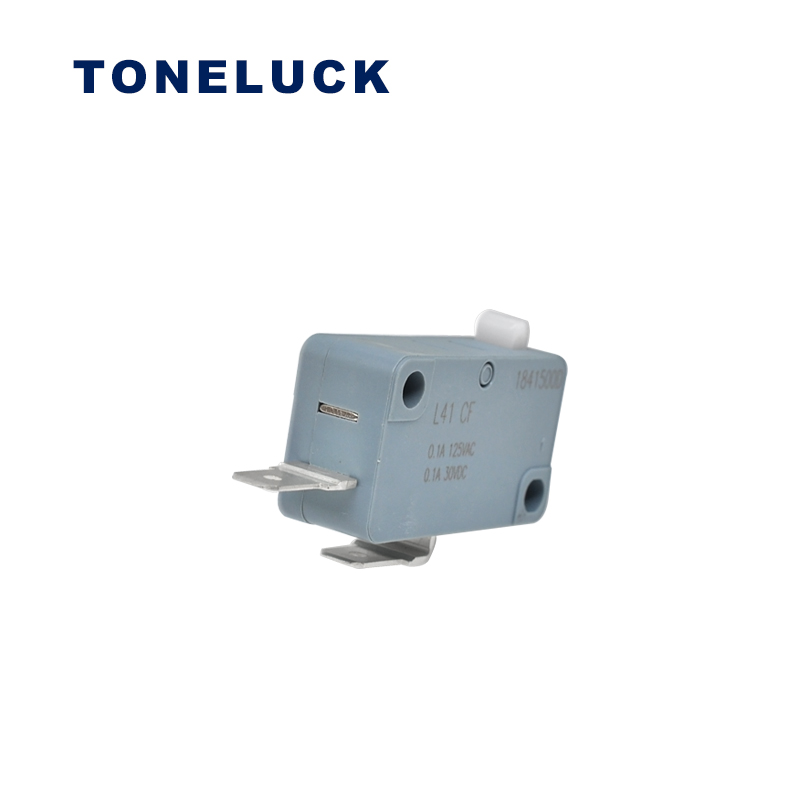

Product name: L41CF-BN00A2-02
Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Micro Momentary Switch Details Description
The L41CF-BN00A2-02 micro momentary switch is a light operating force with normally open SPST current code, which is widely used in water heaters and boilers. Meanwhile, the operation temperature of this micro momentary switch is from -45℃ to 85℃ in the rating of 0.1A 125/250VAC with the ENEC, CQC, and UL certifications. Besides, the L41 microswitch can meet the requirement of the UL1054 and IEC61058 standards.
All in all, our all microswitch is the micro momentary switch, which is not the self-lock type. If you need more information about the switch, please send an email to us and tell us your details requirement. So that we can recommend the model to you quickly. Thank you very mcuh.
Specification
| Electrical Rating | 0.1A 125VAC/250VAC and 0.1A 30VDC with 100k cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 1000k cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing Material: | UL 94 V0 Thermoplastic (Cover) |
