Micro Switch NC NO COM SPDT 16A UL94 V-0 Fireproofing

Micro switch NC NO COM means the switch has 3 terminals, different terminals have different uses in the circuit.

The micro switch NC NO COM means the switch has 3 terminals or 3 wires to connect with that, and different terminals have different uses in the circuit. Generally, a single pole micro switch in the circuit will wire from COM to NC or COM ON, the default connection is “COM to NC” generally. Welcome to contact us for the microswitch wiring principle.

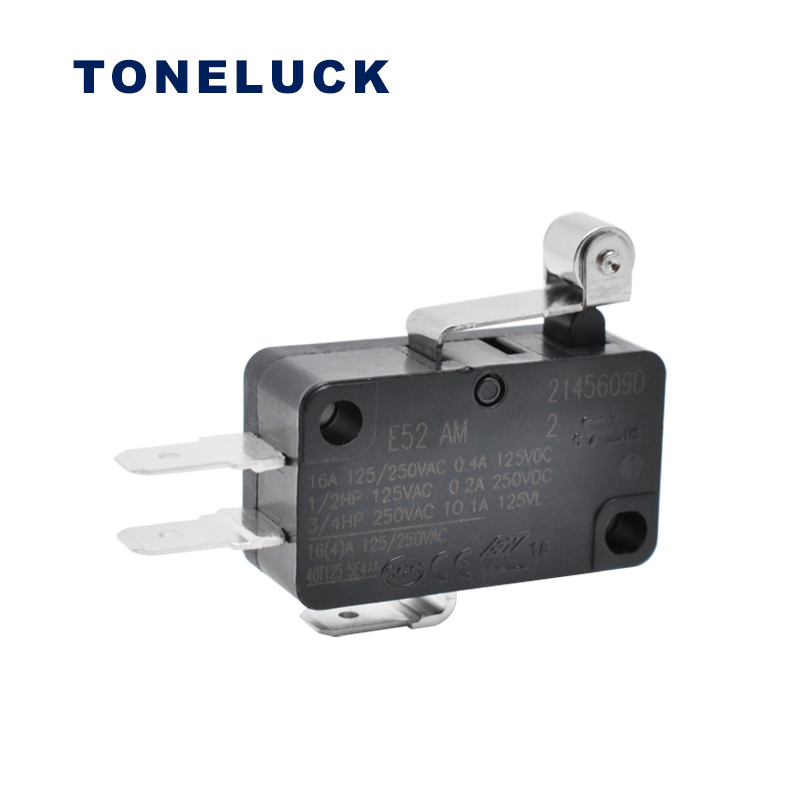

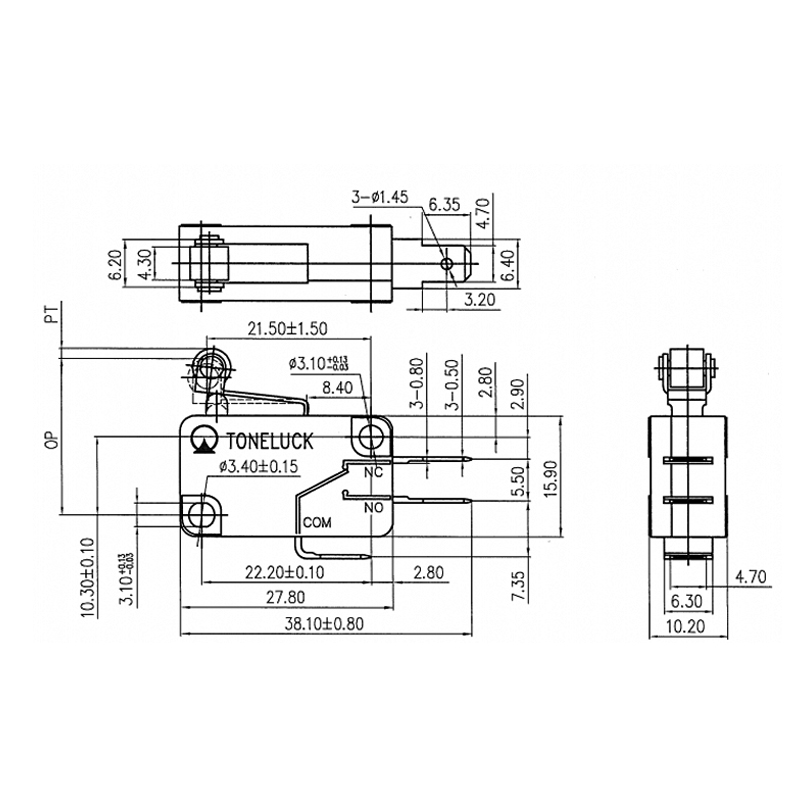

The E52AM-BA12AG-01 is a 3 solder terminals SPDT snap-action switch with a roller lever in the rating of “16(4) A 125/250VAC, 1/2HP 125VAC, 3/4HP 250VAC, 10.1A 125VL (Tungsten), 0.4A 125VDC, 0.2A 250VDC”. And this rating is in the certification of ULcUL, ENEC, and CQC. Meanwhile, this series of switches are widely used in household appliances. So, to make sure our switch is at a high safety level, our switch also uses the UL94 V-0 fireproofing material for the switch shell. So that it can reduce the occurrence of fire.

Besides, the E series also has many parameters for choice, such as the operation force, PT, levers, terminals, current & voltage, etc. Please contact us or check the link to see more microswitch models.
