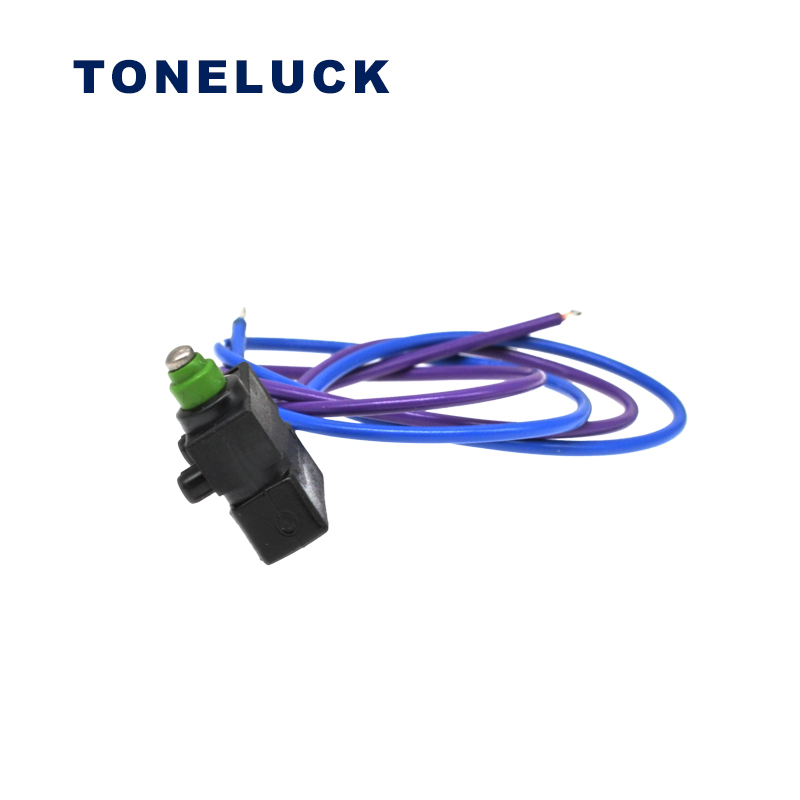

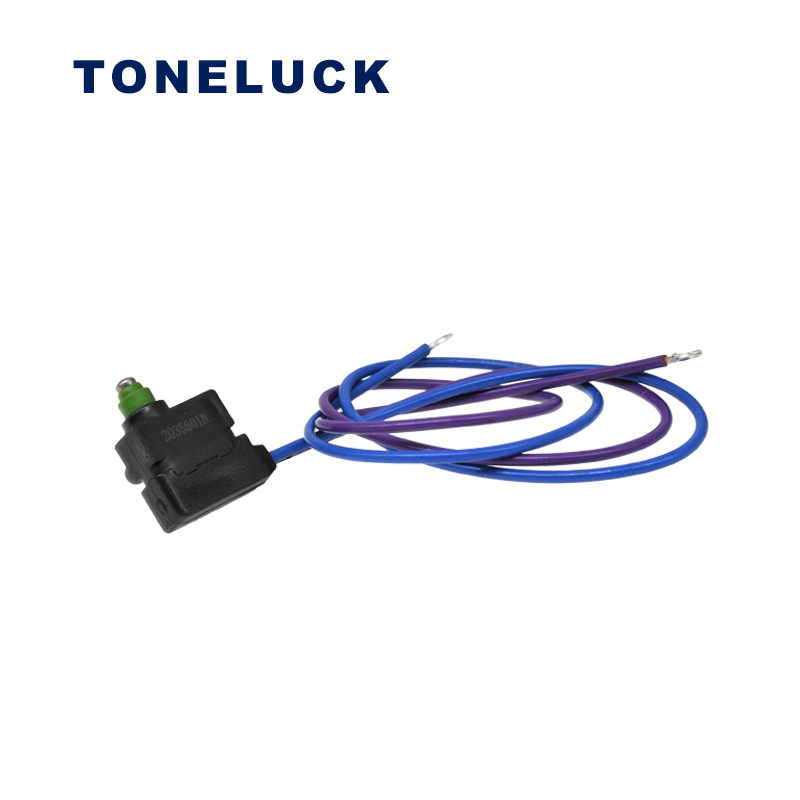

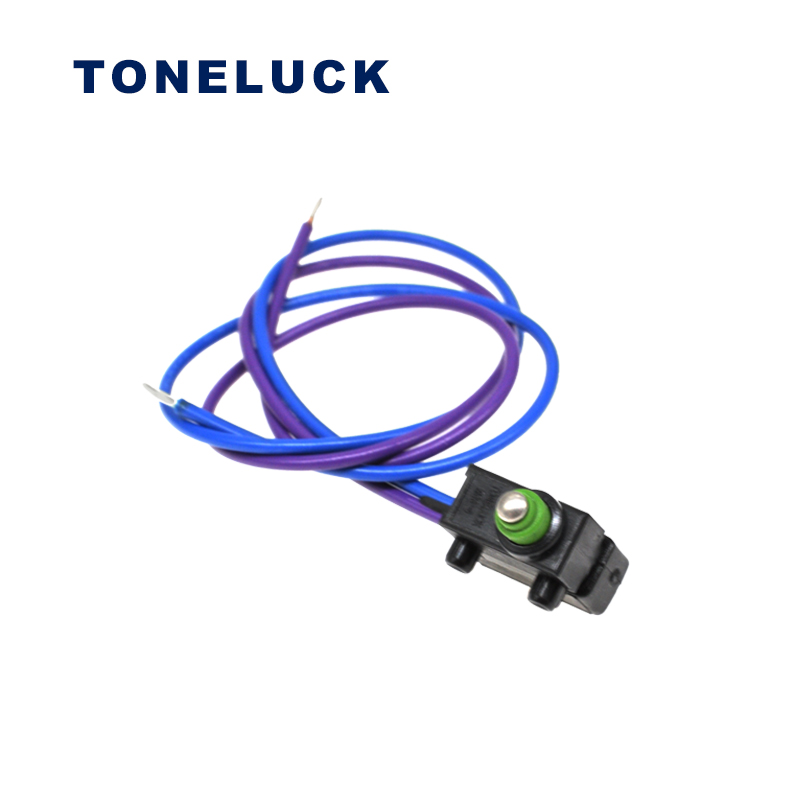

Micro Switch with Cord Short Description
Toneluck MQS-43 micro switch with cord is available and the cord length also can be custom. This is a small size with an IP67 waterproof function.
MQS-4 series micro switch
Product name: MQS-434DW100-AG01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Micro Switch with Cord Details Description
The MQS-434DW100-AG01 micro switch with cord is available and the cord length also can be custom. It is a small size with an IP67 waterproof protection level. Because its rating is 2A 12VDC, people use it in many kinds of vehicles, electric power tools, and outdoor battery machines. Meanwhile, this model has a perfect performance in its operation life because of the high-quality construction. Its Min. mechanical life is 1,000,000 cycles and Min. electrical life is 100,000 cycles. Which is enough for any device.
Besides, the switch shell is a kind of PET material that has UL94 V-0 flame-retardant grades. So, it can prevent the switch from burning when fire.
What’s more, we also have many kinds of products, such as the push button switch, power switch, door switch, pressure switch, and so on, welcome to go to our product page to see more.
Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
