Short Description
The Toneluck MQS-421GJ00 is the SPDT waterproof mini snap action switch with the interlock terminals and in the rating of 2A 24VDC and 40T85 working temperature. In addition, this switch is also in a small size, so it can be installed in a small space. Like the car lock parts.
MQS-4 Waterproof Micro Switch

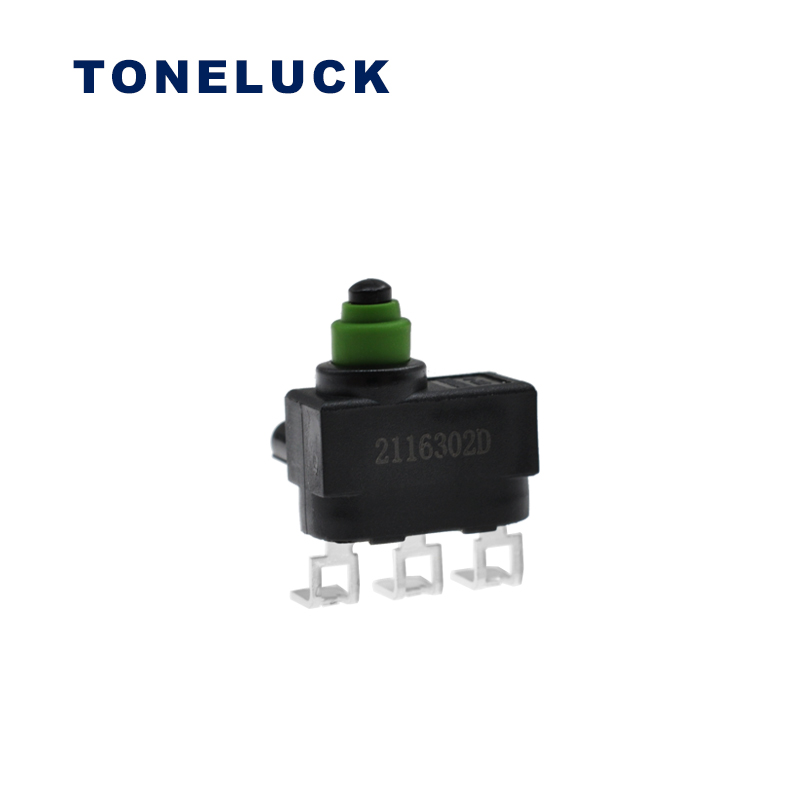

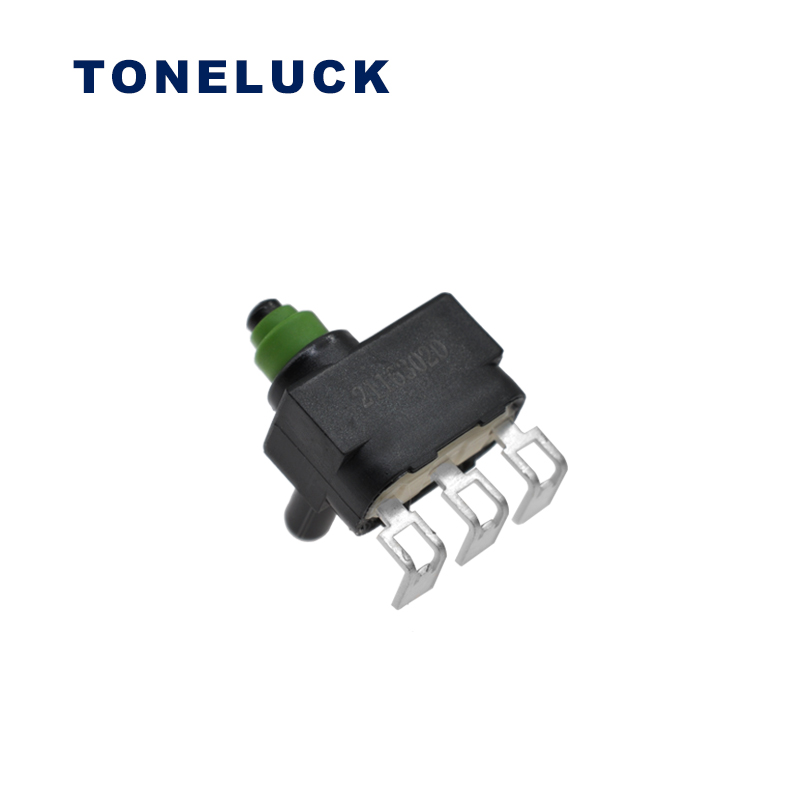

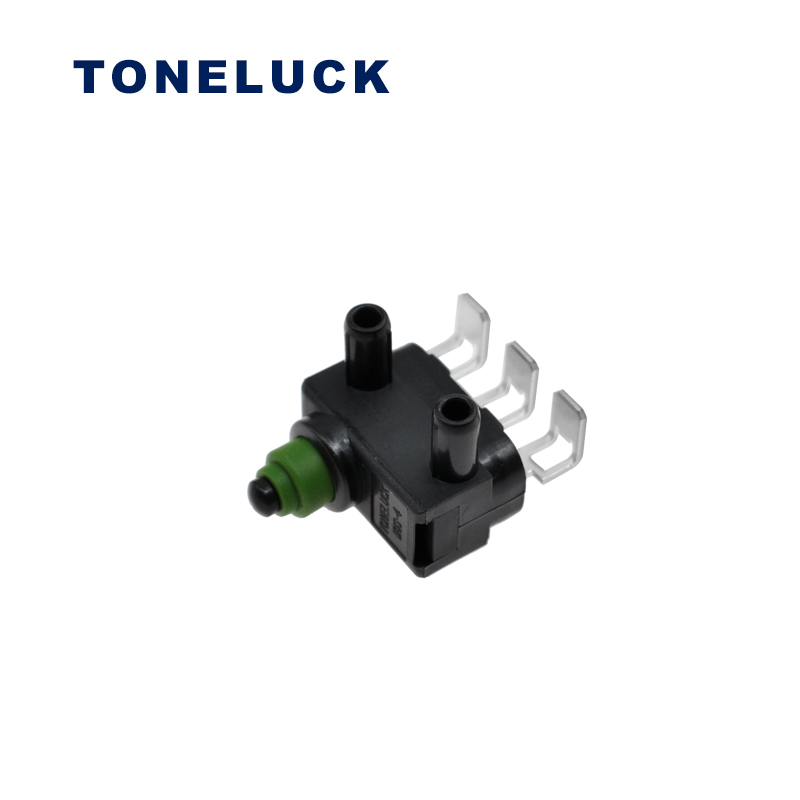

Product name: MQS-421GJ00
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Details Description
This is an SPDT waterproof mini snap action switch with the interlock terminals and in the rating of 2A 24VDC and 40T85 working temperature. In addition, this switch is also in a small size, so it can be installed in a small space. Like the car lock parts. Meanwhile, this mini snap switch has a long electrical life of 100000 cycles. For example, in the 2A and 12VDC status, the switch can switch from on to off at least 100000 cycles, which means if you use it 50 times a day, you can use it for 13.69 years at least.
Specification
| Model No. | MQS-421GJ00 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 2A 12VDC 100,000 cycles Min.
2A 24VDC 50,000 cycles Min. |
| Mechanical Life | 1000,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 50 ± 60 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 200gf Max. |
| Release Force (RP) | 50gf Min. |
| Pre-Travel (PT) | 1.2mm Max. |
| Movement-Differential (DT) | 0.4mm Max. |
| Free Position(FP) | 10.4mm Max. |
