Normally Closed Microswitch Short Description
Toneluck MQS-1BF300-S01 is a normally closed microswitch, which means normally ON in the device if it is connected with the device.

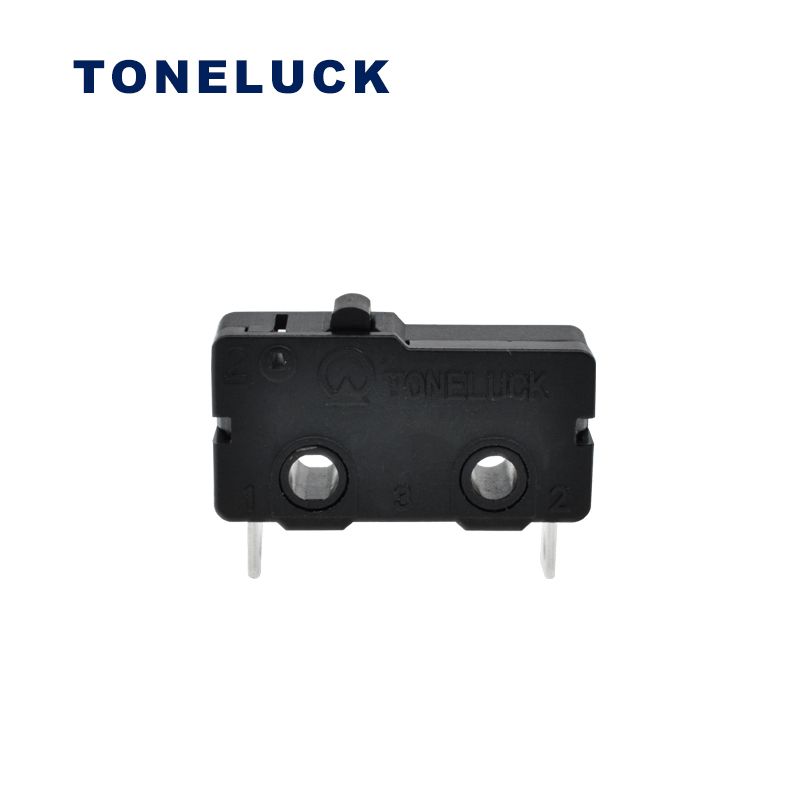

MQS-1 Microswitch
Product name: MQS-1BF300-S01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Normally Closed Micro Switch Details Description
Toneluck MQS-1BF300-S01 is a normally closed micro switch (SPST-NC), which means normally ON if it is connected with the device. Meanwhile, the switch is high-quality and reliable. On one hand, the MQS-1 series also have the ENEC, CQC, UL, and CUL certificates to ensure the switch quality. On the other hand, Toneluck’s mold is very precise and can be used in the high-required product.
Besides, if you need more parameters, please feel free to let us know. We can provide free samples and technology support to you.
Specification
| Electrical Rating | 5A 125VAC (UL) 3A 125/250VAC (ENEC) 3A 125/250VAC (CQC) |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 160gf ±30gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing: | UL 94V-0 Thermoplastic |
