PCB Microswitch Short Description
This is the IP67 waterproof hinge lever PCB microswitch, which can work in a wet environment with a rating of 2A 24VDC max. Besides, we also can provide free samples to you before ordering.
MQS-4 Waterproof Micro Switch

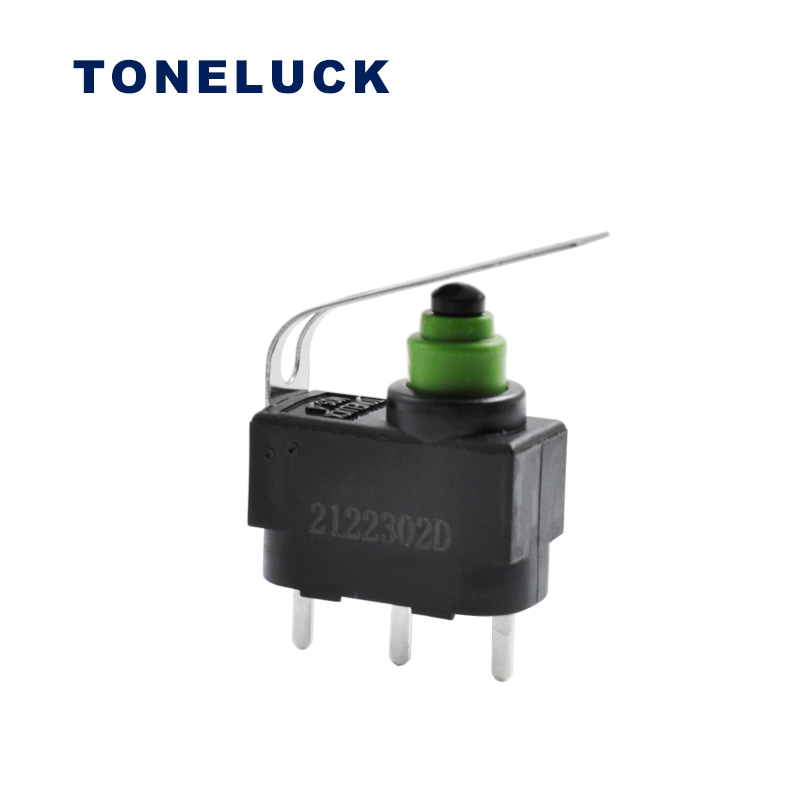

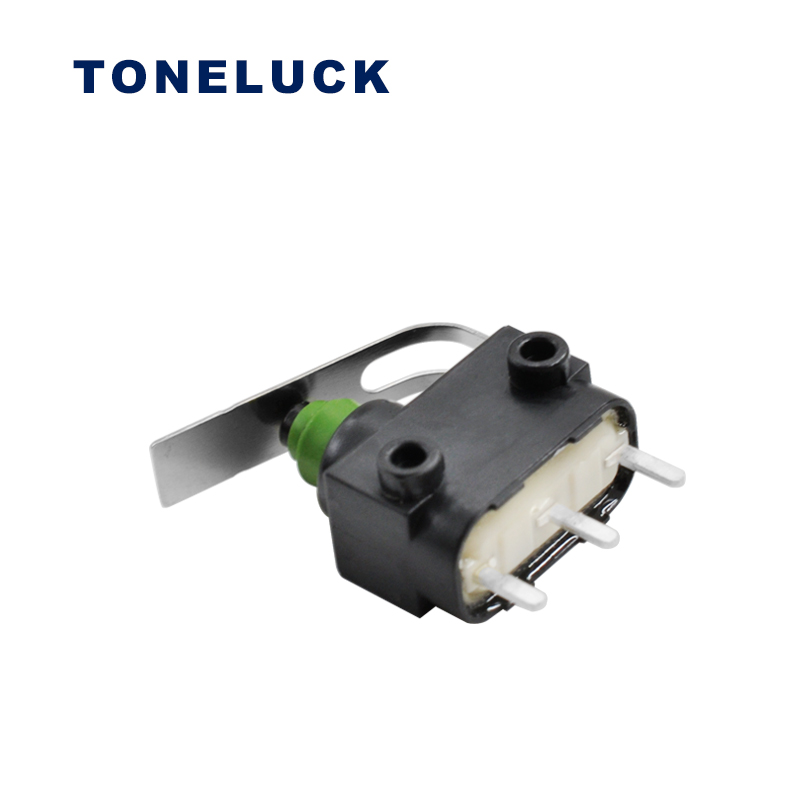

Product name: MQS-421BC02-AG01
Product applications: Automotive parts and electric tools, like car door locks, automobile bonnet, grinders, electric screwdrivers, and so on.
PCB Micro Switch Details Description
This is the IP67 waterproof hinge lever PCB microswitch, which can work in a wet environment with a rating of 2A 24VDC max. Because of its terminals, the micro switch can be installed on the printed circuit board. Meanwhile, the operating temperature is 40T85. I mean that it can work from -40 ℃ to 85℃, which is a wide working range for most applications. Besides, we also can provide other parameters if this PCB snap action switch is not suitable for you.
What’s more, if there have custom requirements, we also can provide the service for you. For example, the wiring harness.
All in all, Toneluck is a famous brand in micro switch, and if you need it, we also can provide free samples to you before ordering. Send the inquiry to us and let us to discuss the details with you.
Specification
| Electrical Rating | MQS-421BC02-AG01 |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
