Short Description
PWL-2P1TL-6SCPHA normally open type push button power switch and it also has the bracket, which is suitable to use in the Audio product.
push button power switch
Product name: PWL-2P1TL-6SCPHA
Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.
Details Description

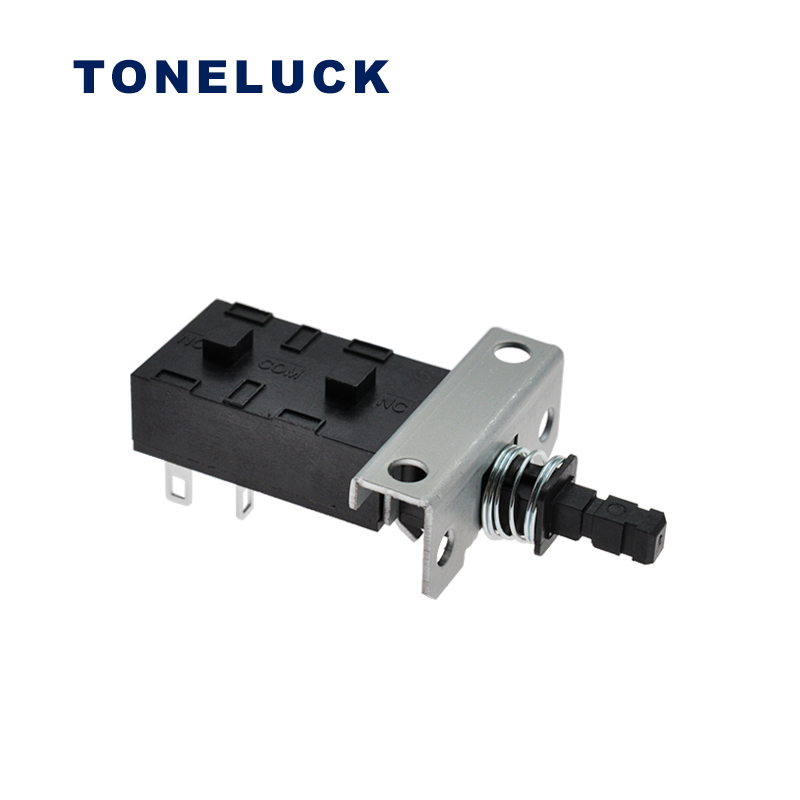

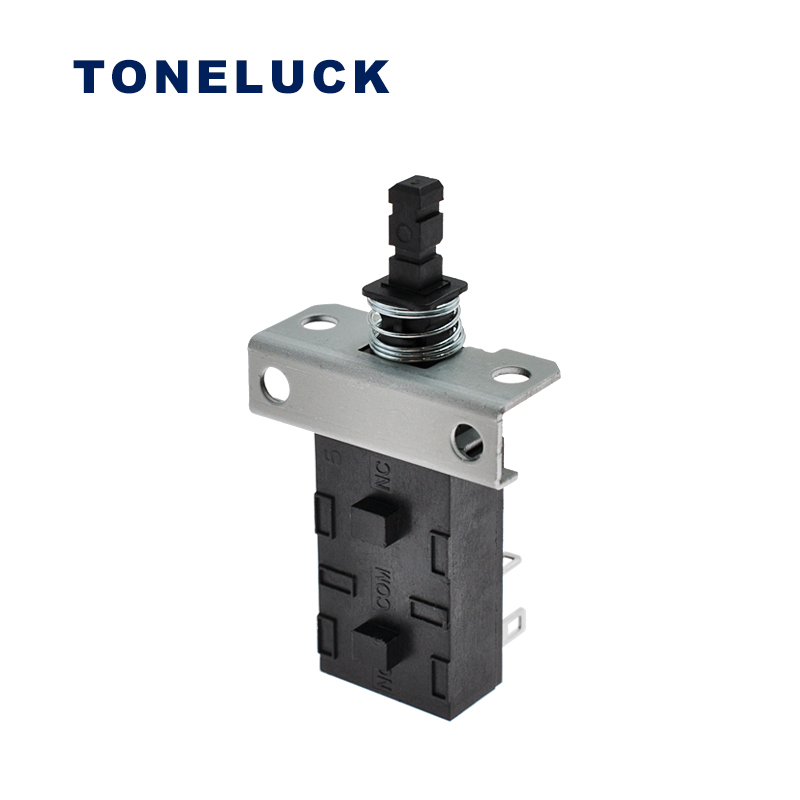

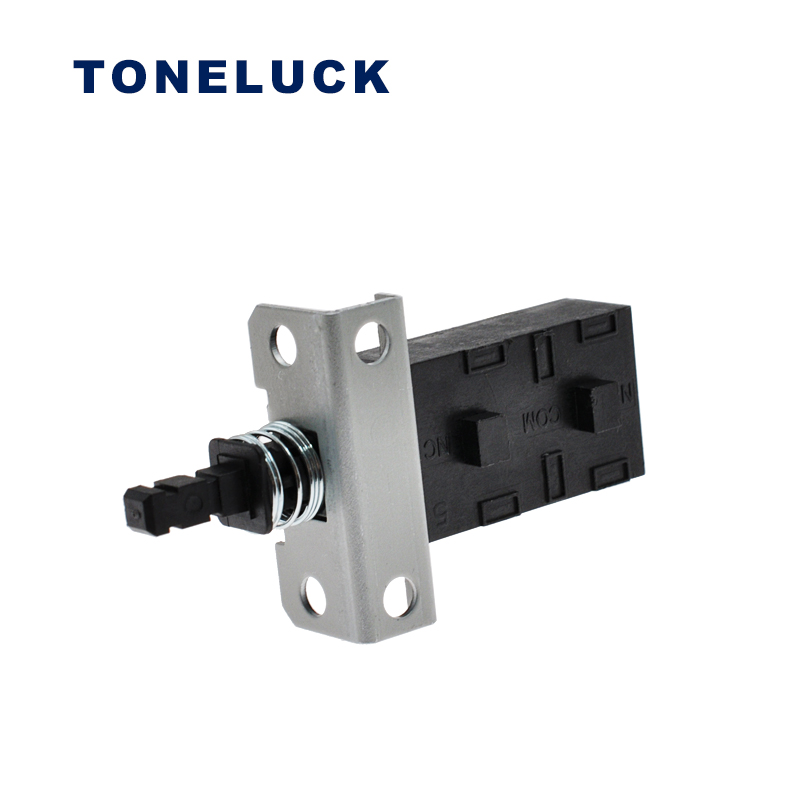

The PWL-2P1TL-6SCPHA is a normally open type push-button power switch with a self-lock function. Meanwhile, it also has a bracket on the switch. So it is suitable to use in the Audio product, range hoods, automotive products, etc. The rating of this model is 6A 125V 250VAC, which is certificated with safety approval, like UL, cUL, VDE.
Besides, you can also choose the 2P1TR(the normally close), 2P2T(1 NO, 1 NC), and even the non-lock function.
Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
