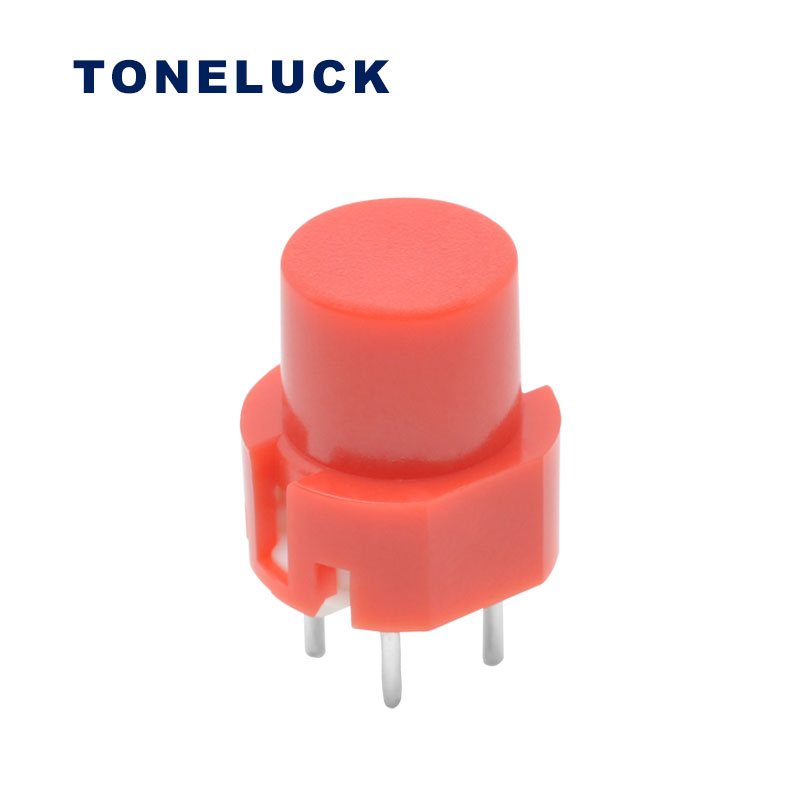

Small 12V Push Button Switch Toneluck Key Round (4) Small 12V Push Button Switch Toneluck Key Round (4)

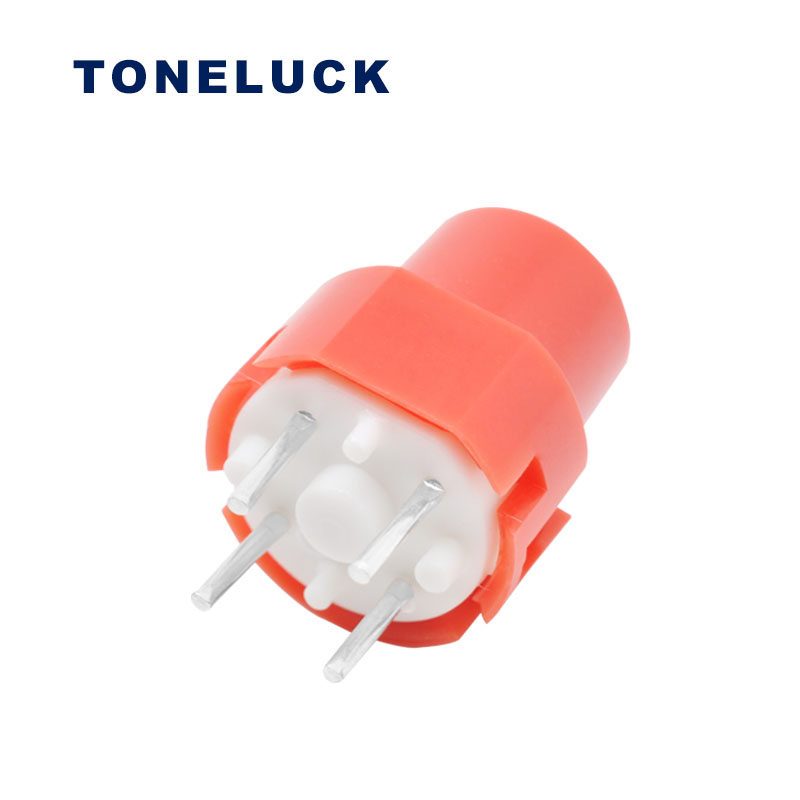

Small 12V Push Button Switch Toneluck Key Round (5) Small 12V Push Button Switch Toneluck Key Round (5)

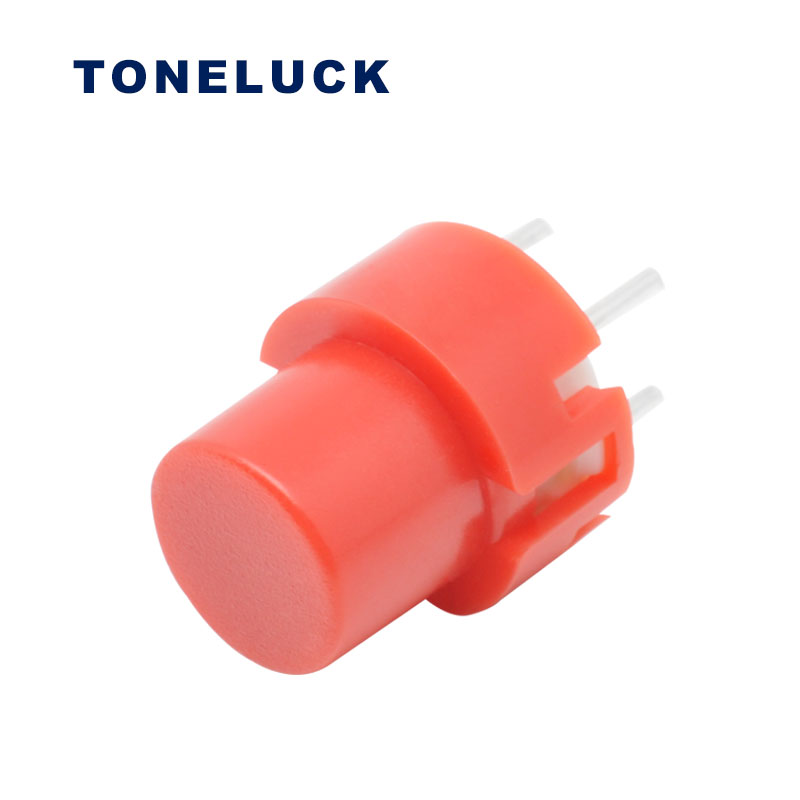

Small 12V Push Button Switch Toneluck Key Round (6) Small 12V Push Button Switch Toneluck Key Round (6)

Key Mini Push Button Switch

The small 12V push button switch is available from Toneluck, and there are many items for your options. Momentary reset, small in size 11.4*12mm, and round shape.

  • Key Series Mini Button Switch

  • Product Model: KEY-R-R-F2

  • Product applications: Industrial control

SEND EMAIL TO US
DOWNLOAD AS PDF

Small 12V Push Button Switch Description

The Toneluck key series switches are the small 12V push button switch, and its Max. loading voltage is 35VDC and Max. loading current is 0.01A. In this rating, the Min. electrical cycles is 100000 cycles. It is small in size also, which is 11.4*12mm in a round shape. The function is momentary so that it will reset automatically when you release the button. Meanwhile, the working temperature is from -10 to 60℃. People can choose its shape, color, and operating force in Key switches series, please contact us for the model selection.

Besides, for the 12V push button switch, we also have various kinds for your options, such as the LTV, PBN, MPN, MPV, and so on. You can choose for different current and different size. Welcome to visit our push button switch product page “https://www.toneluckswitches.com/product/latch-push-button-switch/” to check.

KEY-R-R-F2 Button Switch Specification

Electrical Rating 0.01A 35VDC 100,000 cycles
Operating Temp -10ºC to 60ºC
Total Travel 0.8mm Max
Contact Resistance 50mΩ Max. (initial)
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Operating Force 180 +/- 80gf (130 +/- 50gf  is optional)
Material Base is PBT and keycap is PC
