Short Description MQS-1 Snap Action Microswitch
As a snap action microswitch manufacturer, we supply all kinds of micro switches for you. And this MQS-1BAF402-S01 is the SPST NC type, if you need more types of the switch, welcome to contact us.

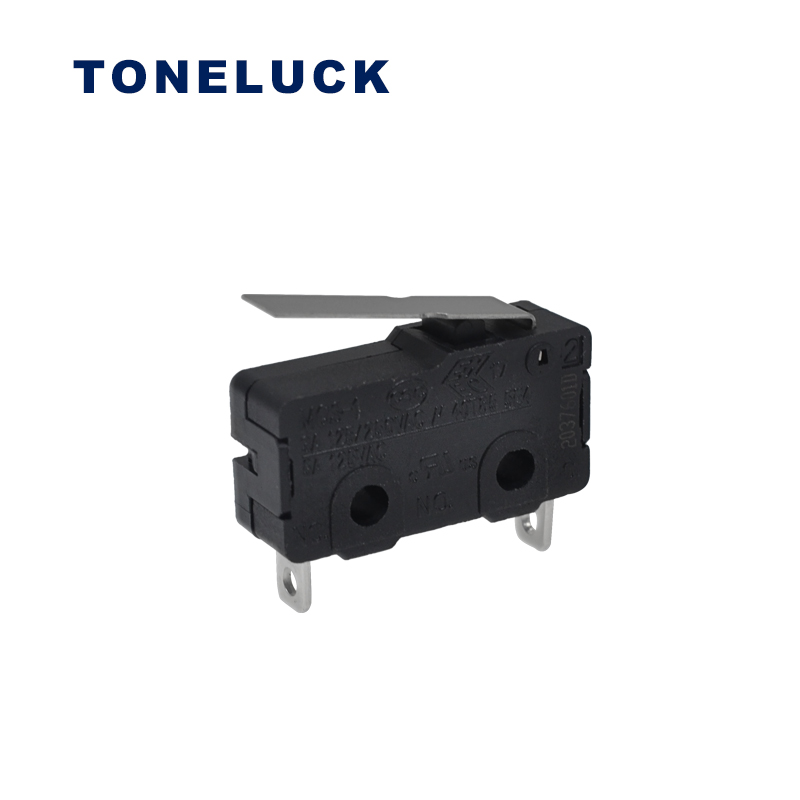

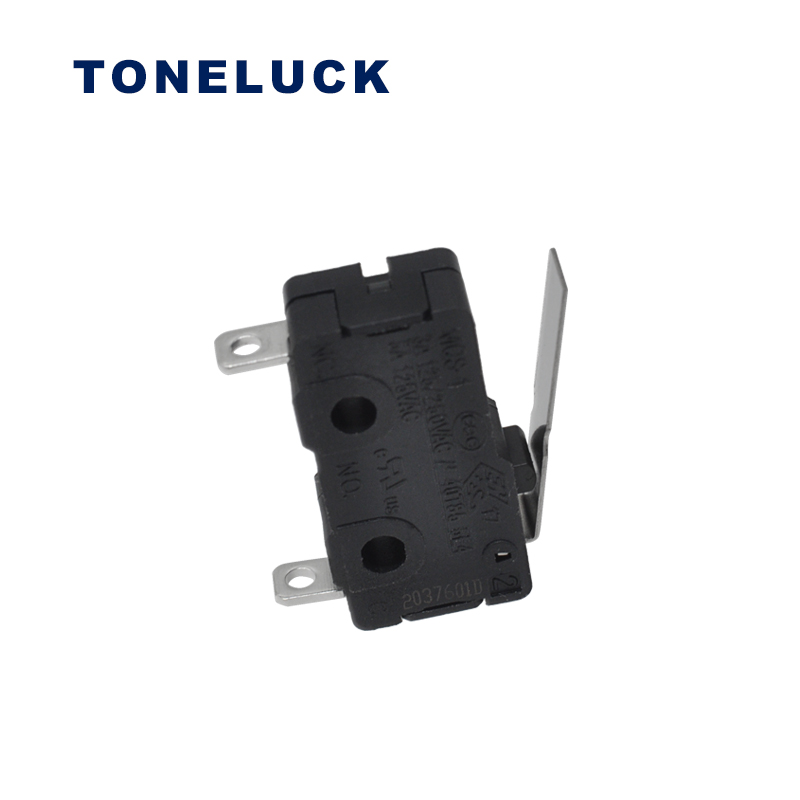

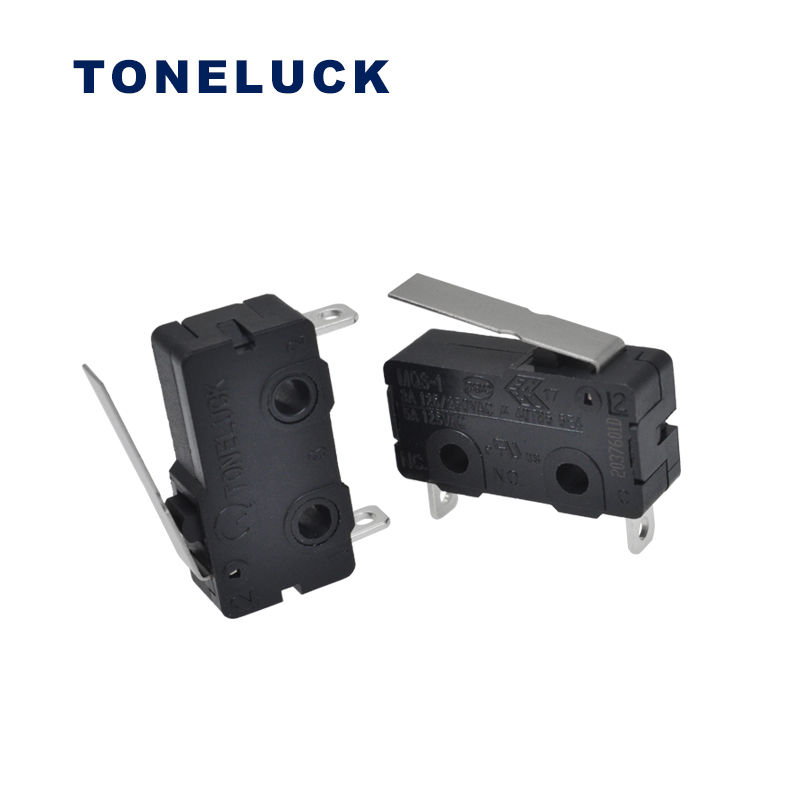

MQS-1 Microswitch
Product name: MQS-1BAF402-S01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Details Description of Snap Action Microswitch
The MQS-1BAF402-S01 snap action microswitch is the SPST NC type, which can be connected with the wire to install in a device to control the circuit from “ON” to “OFF”. That will be used in some applications to stop the circuit when pushing it or a door open to activate the light.
Generally, we see a snap action microswitch if suitable for the device. We also will see its rating, and this model is 5A 125V and 3A 125/250VAC, which has the certification of UL, cUL, ENEC, and CQC. Meanwhile, if the stable current in the application is higher than 5A, the switch is not suitable for it. But if it will be suitable for all current lower than 5A.
As a snap action microswitch manufacturer, we provide all kinds of micro switches for customers, welcome to contact us to have more details and the free sample is available. For more Toneluck switches, you also can go to our product page to see them, thank you very much.

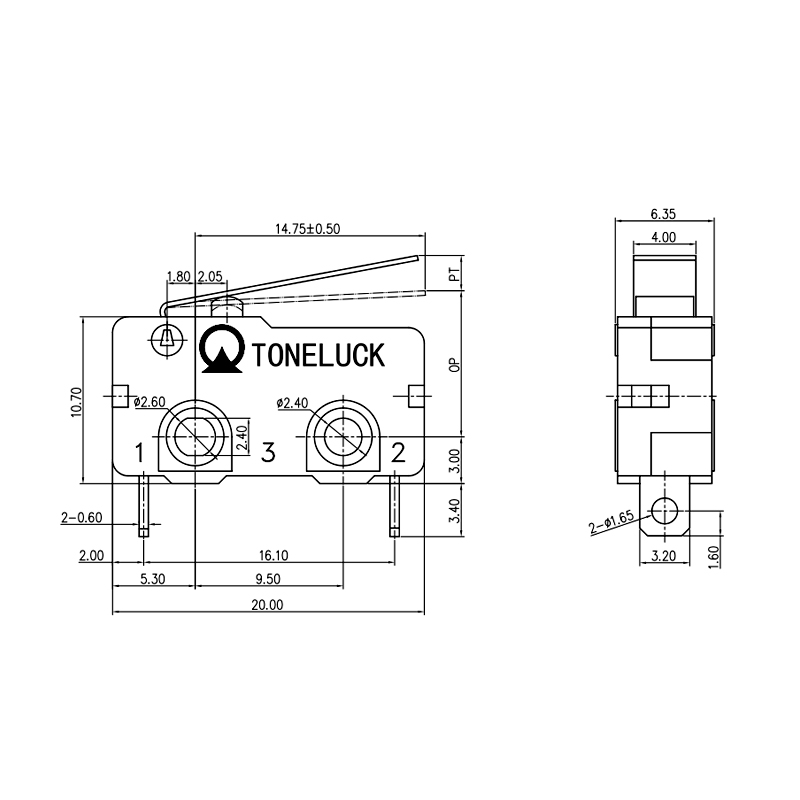

MQS-1 Snap Action Microswitch Specification |
| Model No. | MQS-1BAF402-S01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 3A 125/250VAC (ENEC, CQC) 50,000 cycles Min.
5A 125VAC (UL, cUL) 6000 cycles Min. |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OF) | 65±20gf |
| Release Force (RF) | 15 gf Min. |
| Pre-Travel (PT) | 4.2 mm Max. |
| Over- Travel (OT) | 1.0 mm Min. |
| Movement-Differential (DT) | 1.0 mm Max. |
| Operation Position (OP) | 9.4±1.0 mm |
| Free Position(FP) | 12.5 mm Max. |
