SPDT Lever Microswitch Short Description

We provide SPDT lever microswitch with many different parameters, and the MQS-1AAF403-S01 is one of our micro switches that has a metal lever and 3 soldering terminals, the free samples are available to you for testing before ordering.

  • MQS-1 Microswitch

  • Product name: MQS-1AAF403-S01

  • Product applications:Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

SPDT Lever Microswitch Details Description

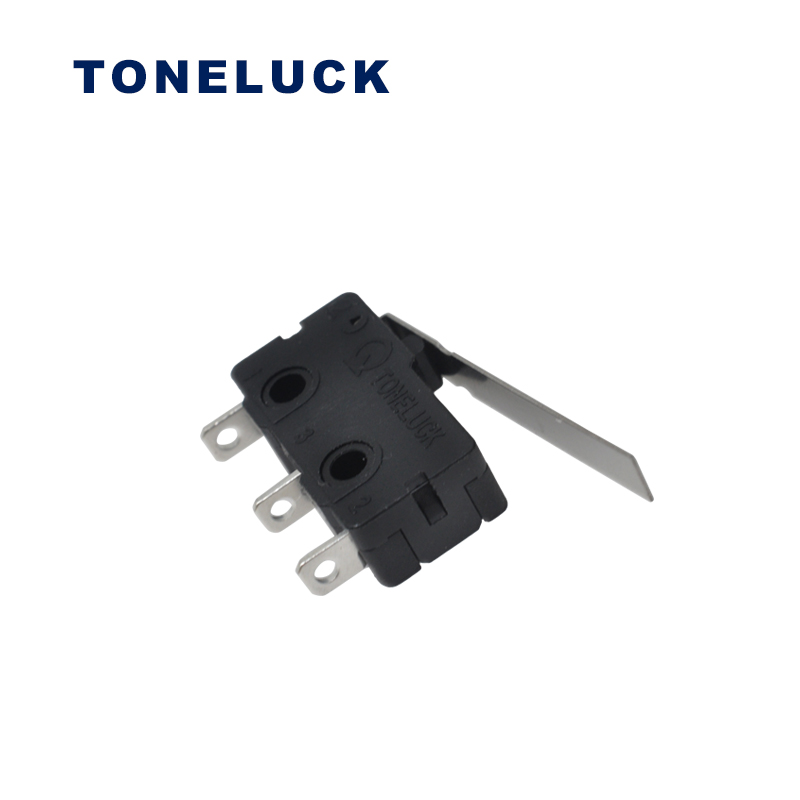

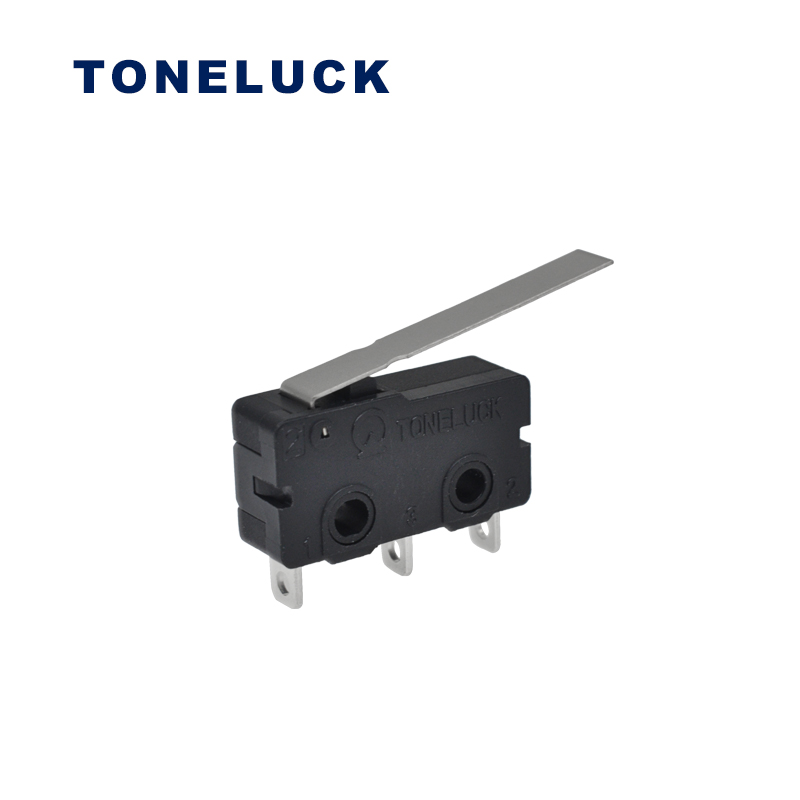

Toneluck MQS-1AAF403-S01 is one of the SPDT lever microswitch that has a metal lever and 3 soldering terminals, which will be used in many household appliances and agricultural and industrial equipment. Meanwhile, this model rating is “5A 125/250V 40T85 ” which is certificated by the UL, cUL, ENEC, and CQC.

Besides, for the SPDT lever microswitch, we also have many different switches for your options. For example,  we also have other size and other rating micro switches with a lever, like the MQS-4, MQS-2, E, L series, and so on. Welcome to see switch page to get more information.

All in all, we have many types of lever micro switches and we can provide the free samples and datasheets to you for testing and assessment.

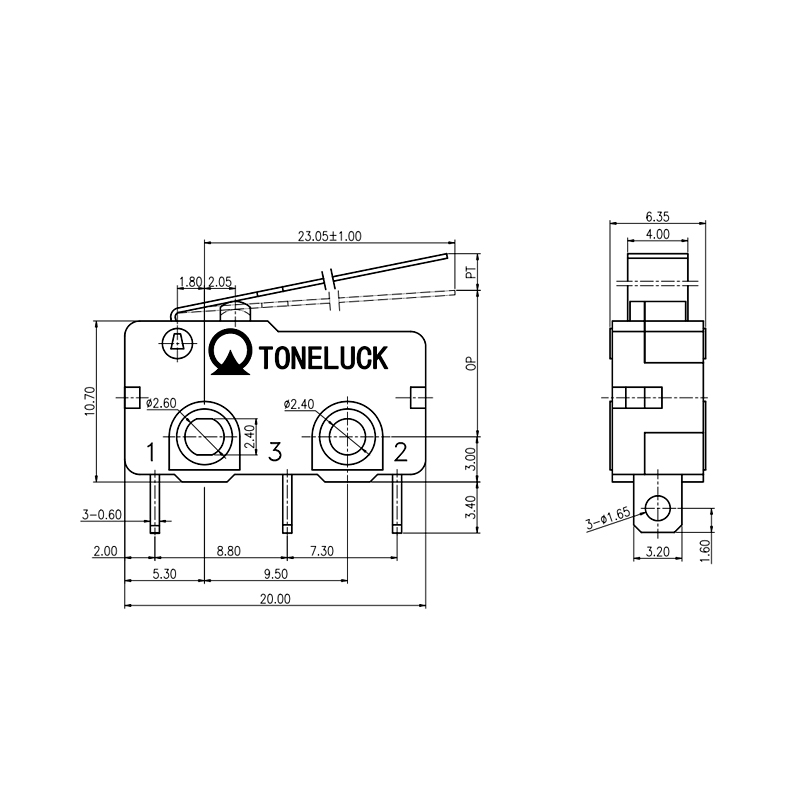

SPDT Lever Microswitch Specification

Model No. MQS-1AAF403-S01
Operating Temperature -40℃ to +85℃
Rating 3A 125/250VAC (ENEC, CQC)  50,000 cycles Min.

5A 125VAC (UL, cUL)  6000 cycles Min.
Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Operation Force (OP) 40±15gf
Release Force (RP) 5 gf Min.
Pre-Travel (PT) 6.2 mm Max.
Over- Travel (OT) 1.5 mm Min.
Movement-Differential (DT) 1.5 mm Max.
Operation Position (OP) 9.2±2.7 mm
Free Position(FP) 14.6mm Max.
