Short Description
Electric Micro Switches Roller Lever PCB Terminal SPDT
E Micro ON OFF Switch

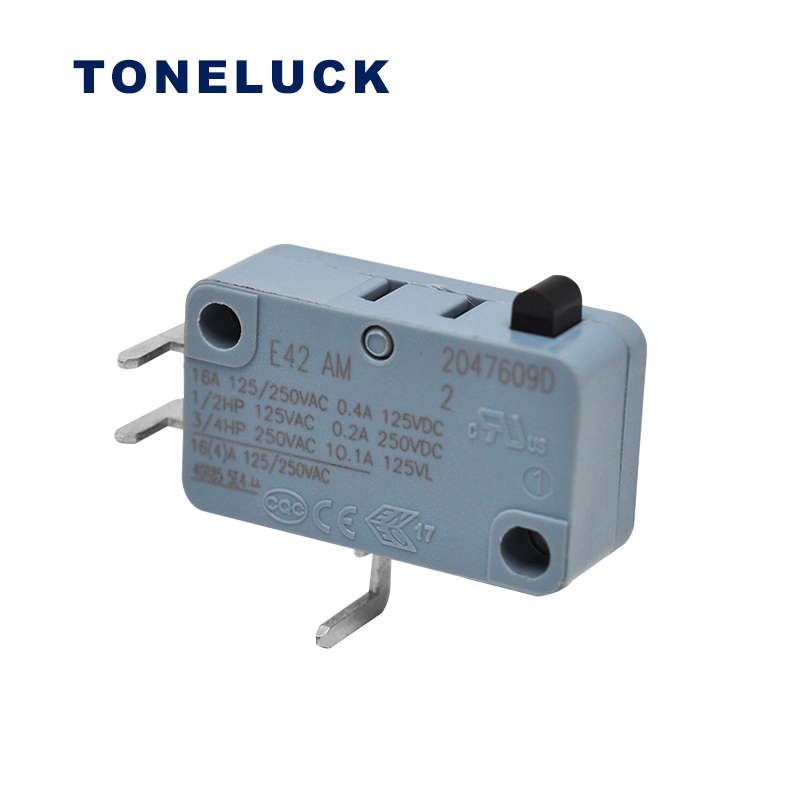

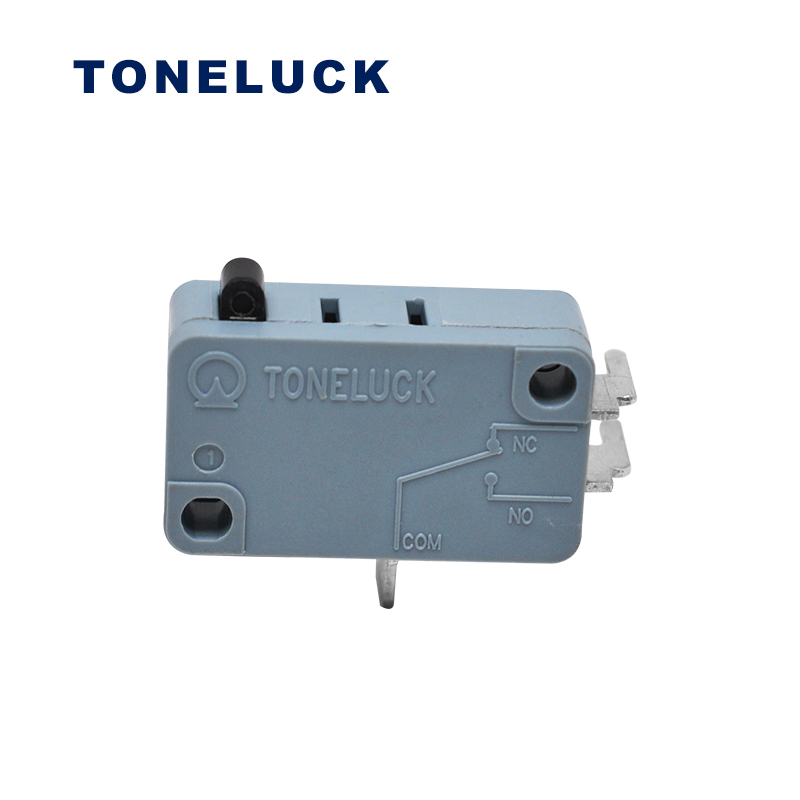

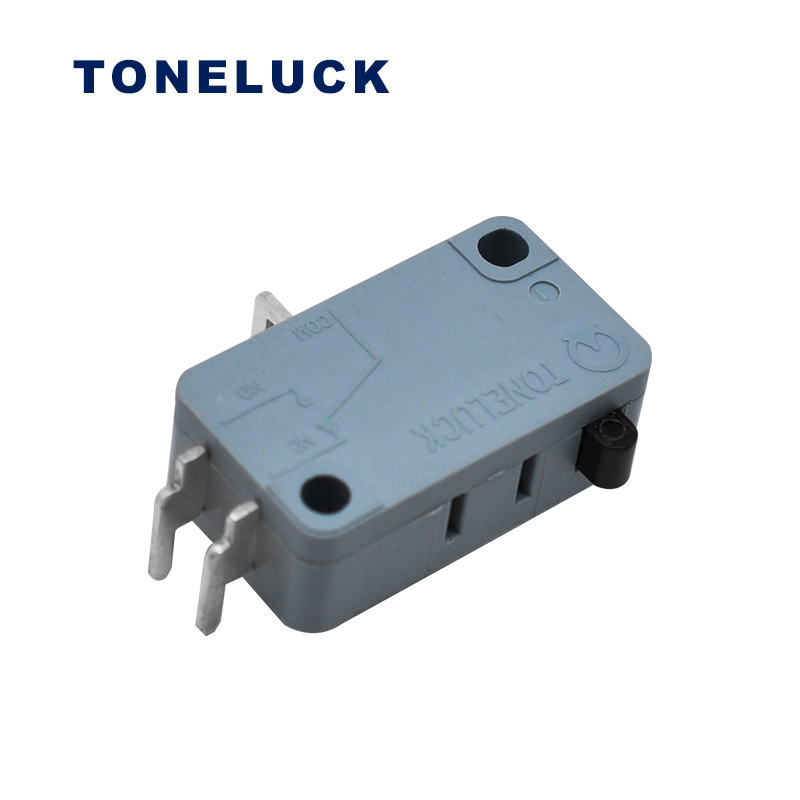

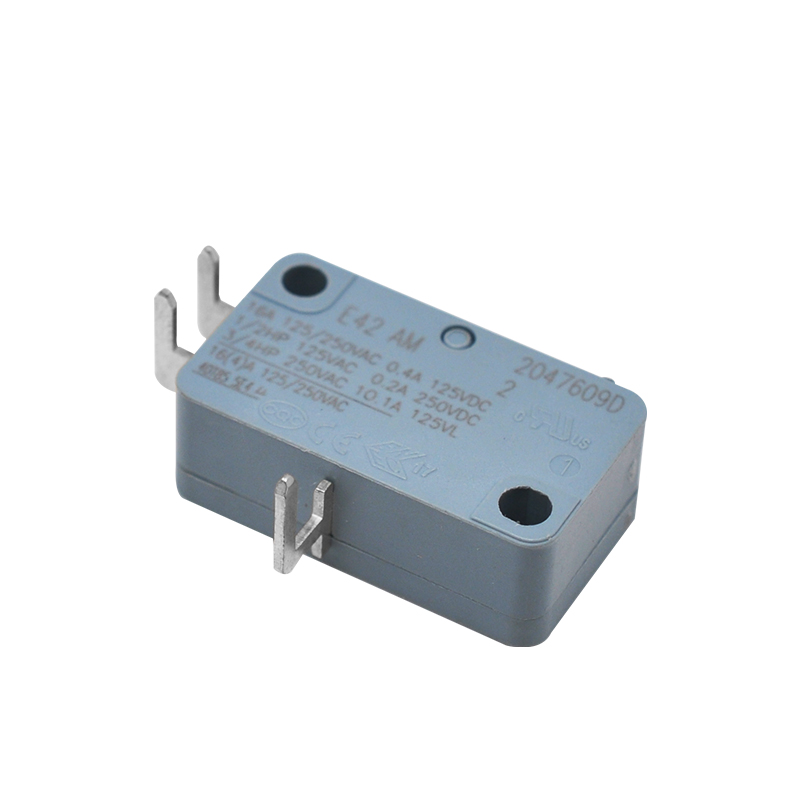

Product name: E42AM-PA00AG-01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Details Description
Electric Micro Switches Roller Lever PCB Terminal SPDT
Specification
| Model No. | E42AM-PA00AG-01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC
0.4A 125VDC;0.2A 250VDC;10.1A 125VL 16(4)A 125/250VAC |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 80±20gf |
| Release Force (RP) | 50gf Min. |
| Pre-Travel (PT) | 1.5mm Max. |
| Over- Travel (OT) | 1mm Min. |
| Movement-Differential (DT) | 0.5mm Max. |
| Operation Position (OP) | 20.7±0.8 mm |
