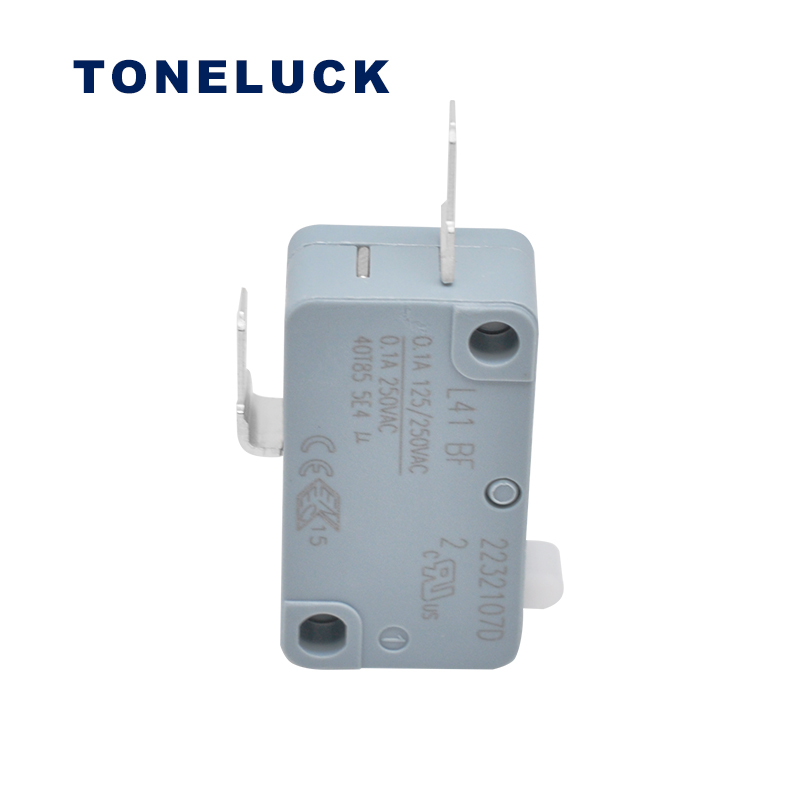

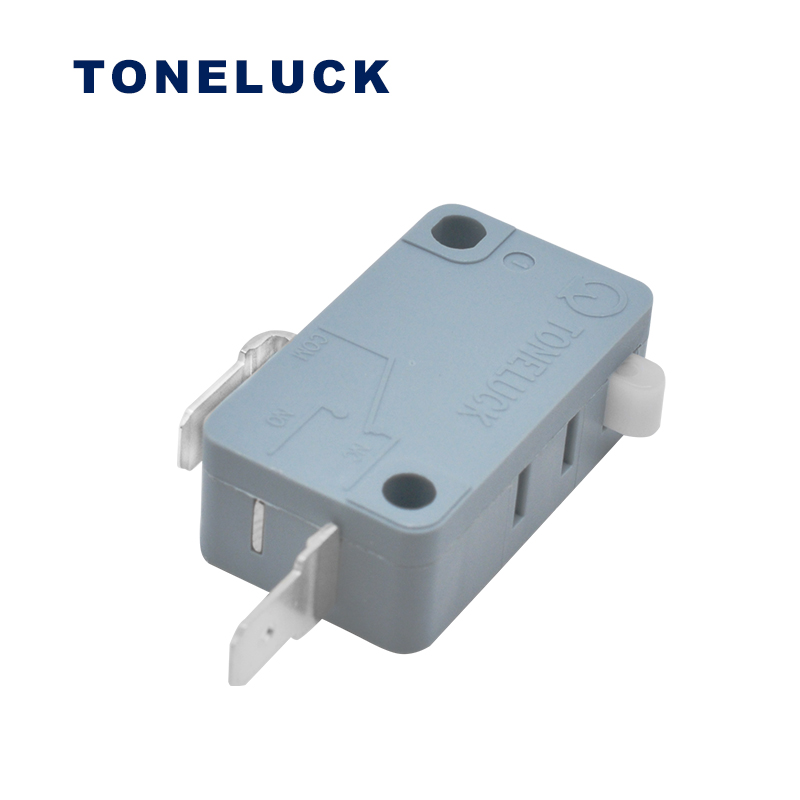

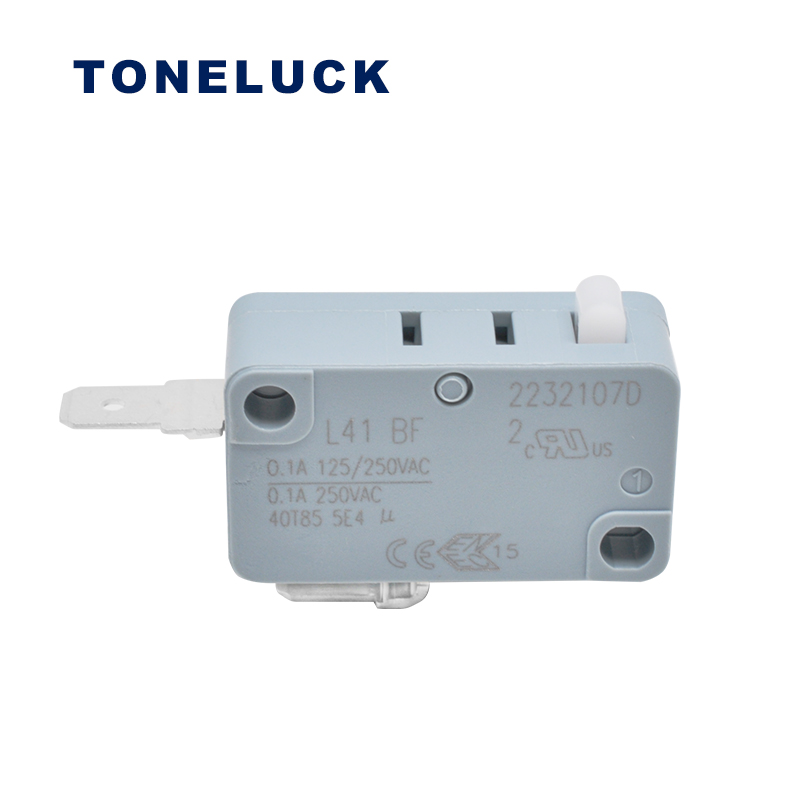

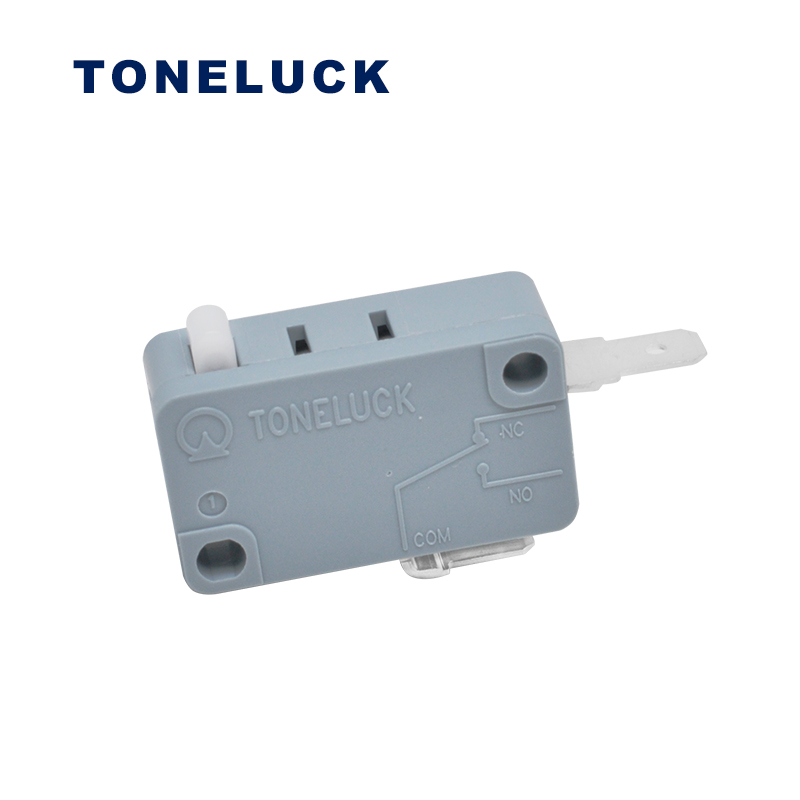

High Temperature Micro Switch Short Description
The L41BF-BN00A1-A6 is a high temperature micro switch which can work in 220℃ environment and its rating is 5A 125/250VAC with 100000 electrical cycles
Product name: L41BF-BN00A1-A6
Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
High Temperature Micro Switch Details Description
The L41BF-BN00A1-A6 is a high-temperature microswitch that can work in a 220℃ environment. Because of its special material, it has a good performance in high temperature conditions. Meanwhile, the snap action switch has the UL certification and can meet the requirement of UL1054 and UL858. In the UL test standard, the rating is 5A 125/250VAC with 100000 electrical minimum cycles.
Because the material is special, the price of this high temperature micro switch is expensive than the normal type. However, you get what you pay for, it can meet some special device.
High-Temperature Microswitch Specification
| Model No. | L41BF-BN00A1-A6 |
| Operating Temperature | -40℃ to +220℃ |
| Rating | 5A 125/250VAC 100,000 cycles Min.
5A 125/250VAC 6000 cycles Min. |
| Mechanical Life | 100,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 50 ± 60 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Long Straight Lever |
| Operation Force (OP) | 15±7 gf |
| Release Force (RP) | 4gf Min. |
| Pre-Travel (PT) | 10mm Max. |
| Over- Travel (OT) | 4.0 mm Min. |
| Movement-Differential (DT) | 3.5mm Max. |
| Operation Position (OP) | 15.3±4.5 mm |
