Short Description

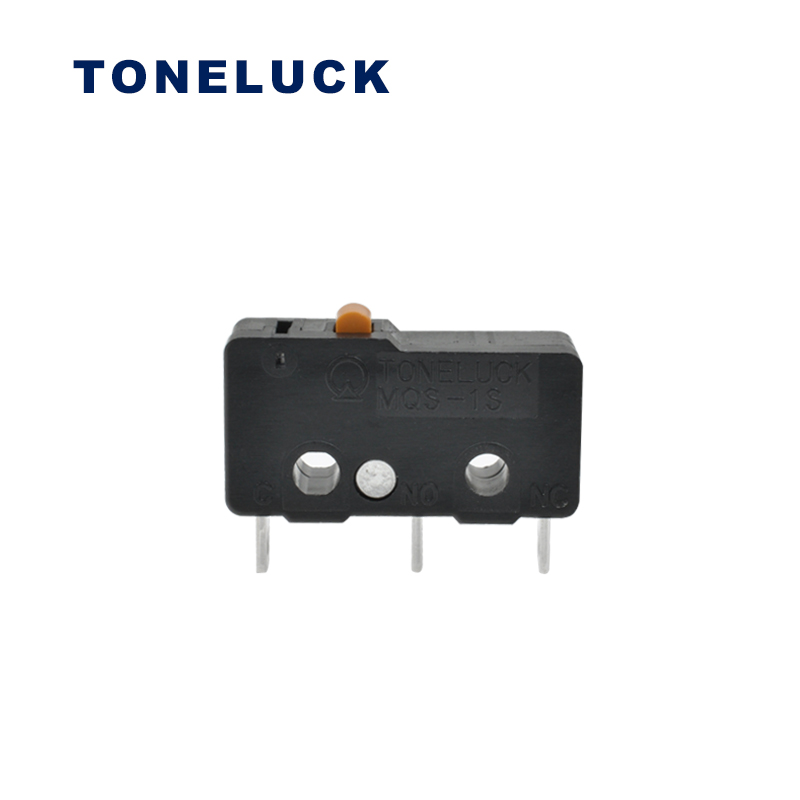

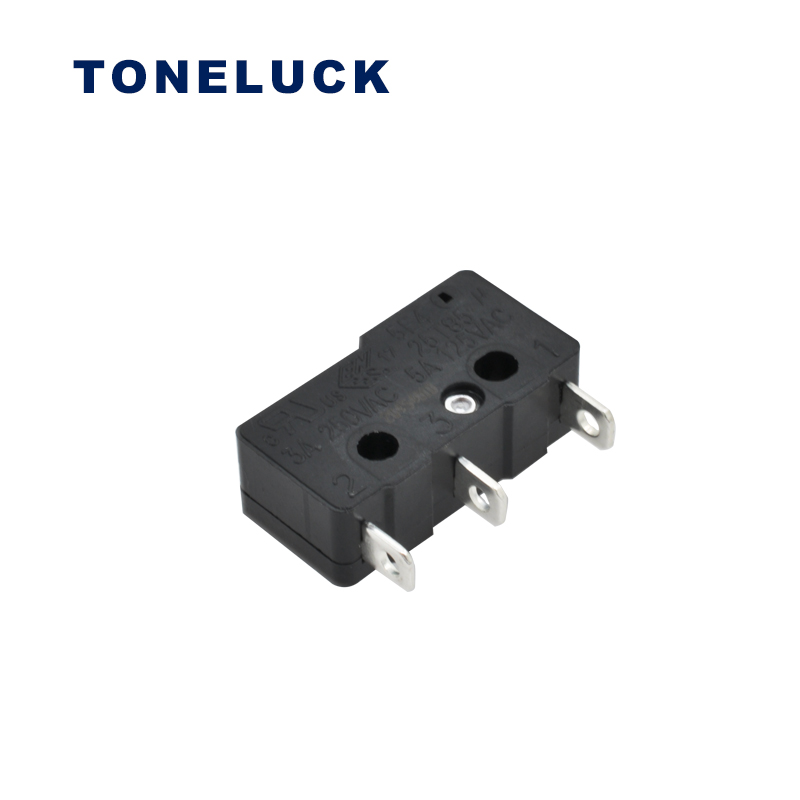

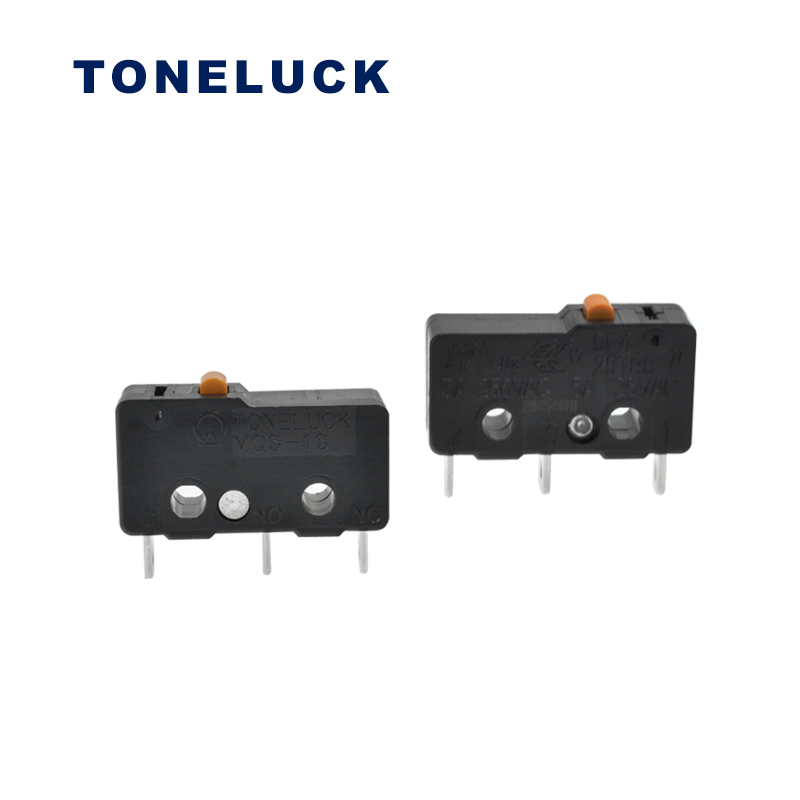

This model of Toneluck MQS-1S is an SPDT 40T85 snap action micro switch with the certificated rating of 5A 125VAC (UL) 6,000 cycles min., 3A 125/250VAC (ENEC) 50,000 cycles min., and 3A 125/250VAC (CQC) 50,000 cycles min. Meanwhile, the design of this MQS-1S can meet the requirement of the IEC61058.
Product name: MQS-1SAAF200-S07
Product applications:Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Details Description
This model of Toneluck MQS-1S is an SPDT 40T85 snap action micro switch with the certificated rating of 5A 125VAC (UL) 6,000 cycles min., 3A 125/250VAC (ENEC) 50,000 cycles min., and 3A 125/250VAC (CQC) 50,000 cycles min. Meanwhile, the design of this MQS-1S can meet the requirement of the IEC61058.
Specification
| Model No. | MQS-1SAAF200-S07 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 3A 125/250VAC (ENEC, CQC) 50,000 cycles Min.
5A 125VAC (UL, cUL) 6000 cycles Min. |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 100±30gf |
| Release Force (RP) | 20gf Min. |
| Pre-Travel (PT) | 0.7 mm Max. |
| Over- Travel (OT) | 0.4 mm Min. |
| Movement-Differential (DT) | 0.2mm Max. |
| Operation Position (OP) | 8.4±0.3 mm |
