Details Description

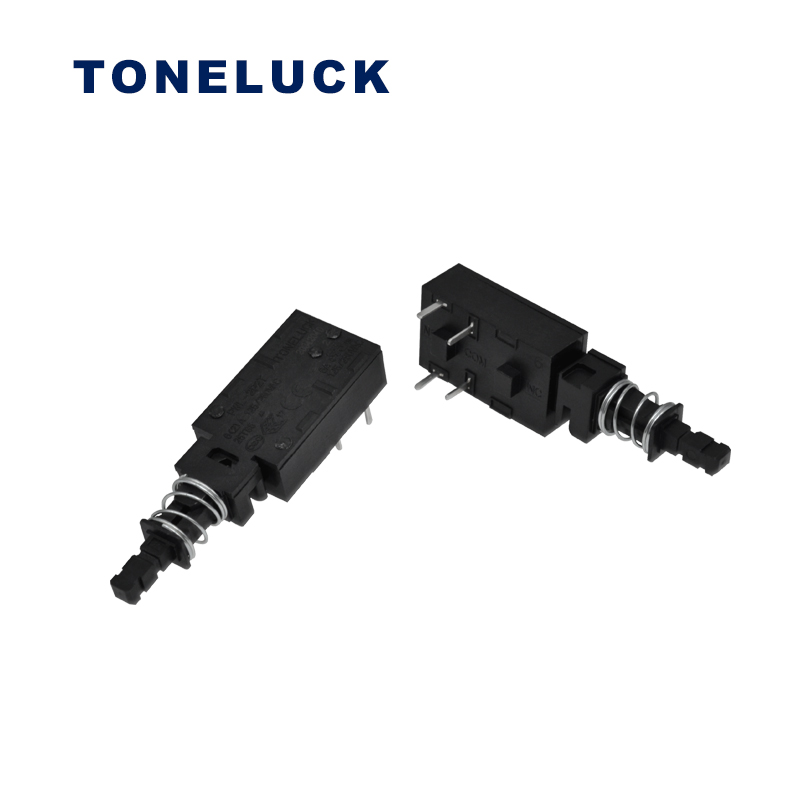

Toneluck PWL-2P1T Button Power Switch Normally Open Self Lock
Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
