With the continuous development of the automotive industry, electric seat adjustment systems have become an essential component of modern vehicles. To ensure the stability and reliability of seat adjustments, the selection of key components—such as micro switches—is crucial. The Toneluck S3 micro switch, with its dual-circuit design and high-current load capacity of up to 26A, is an ideal solution for automotive seat adjustment systems.

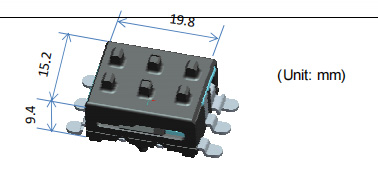

Overview of the Toneluck S3 Micro Switch
The Toneluck S3 micro switch is a high-performance electronic component specifically designed for controlling electric seat adjustments in vehicles. Its core features include the ability to withstand high current loads, low contact resistance, and long lifespan, ensuring stable performance even under frequent use.
Key Specifications
To better understand the performance of the Toneluck S3 micro switch, here are its detailed technical specifications:
- Application Load
- 14VDC, maximum current load of 26A (1mH inductive load)
- 5VDC, 5-10mA (low current applications)
- Contact Resistance
- Initial contact resistance ≤50mΩ
- After lifespan: ≤500mΩ
- Voltage Drop
- Initial: 150mV @ 26A 14VDC
- After lifespan: 250mV @ 26A 14VDC
- Operating Force
- Maximum 2.0N
- Lifespan
- 50,000 cycles
Advantages of the Toneluck S3
Compared to traditional micro switches, the Toneluck S3 offers significant advantages in the following aspects:
- Dual-circuit design for enhanced safety
The Toneluck S3 adopts a dual-circuit design, allowing it to control two circuits simultaneously, increasing switch reliability. Even if one circuit fails, the other can still ensure current transmission, preventing seat adjustment system failure due to switch malfunction. - High current carrying capacity for high-power applications
Since automotive seat adjustment systems typically require high current to drive motors, the Toneluck S3 can handle up to 26A, making it capable of stably driving electric seat adjustment mechanisms and enhancing system durability. - Low contact resistance to reduce energy loss
The low contact resistance (initial value ≤50mΩ) helps minimize power loss, improving the efficiency of the seat adjustment system and reducing heating issues. - Long lifespan to reduce maintenance costs
With a lifespan of 50,000 cycles, the Toneluck S3 can operate reliably over the long term, reducing replacement frequency and maintenance costs, which is especially beneficial for automotive applications requiring high durability. - Optimized voltage drop for signal stability
With an initial voltage drop of only 150mV and a maximum of 250mV after extended use, the switch ensures stable signal transmission, preventing control failures due to voltage fluctuations.
Application Areas

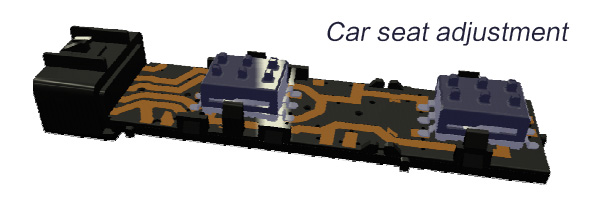

The Toneluck S3 micro switch is primarily used in electric automotive seat adjustment systems, allowing precise control over seat positioning to enhance the driving and riding experience. Specific applications include:
- Seat forward and backward adjustment: Controls the seat rail motor to move the seat forward and backward, accommodating different drivers.
- Seat backrest angle adjustment: Adjusts the seat backrest tilt angle for a more comfortable sitting position.
- Seat height adjustment: Controls the seat lift motor, enabling passengers to adjust the seat height for optimized visibility and comfort.
- Seat memory function: In some high-end vehicles, the Toneluck S3 micro switch is used for storing seat position settings, allowing drivers to restore preset positions with a single press.
- Seat heating/ventilation control: In electric seats equipped with heating or ventilation features, the Toneluck S3 is used to control these functions.
Future Prospects of Toneluck S3 in the Automotive Industry
With the advancement of new energy vehicles and smart cars, the electrification and intelligence of automotive seats are becoming increasingly prominent. The Toneluck S3 micro switch, with its high current capacity, dual-circuit safety design, and long lifespan, fully meets the automotive industry’s demands for high reliability and durability.
In the future, this switch will not only be used in traditional fuel vehicles but will also play a greater role in electric vehicle seat adjustment systems. As autonomous driving technology advances, the demand for intelligent seating will further increase, expanding the application scenarios of the Toneluck S3.
Conclusion
As a key component in automotive seat adjustment systems, the Toneluck S3 micro switch stands out due to its high current load capacity, low contact resistance, and long lifespan design, making it an ideal choice. Its dual-circuit design ensures enhanced safety, while its excellent electrical performance makes it suitable for various seat adjustment functions.
With the ongoing trend of automotive intelligence, the application of the Toneluck S3 will become even more widespread, providing a more stable and reliable solution for electric seat adjustment systems. For automotive manufacturers, choosing the Toneluck S3 not only improves the stability of seat systems but also enhances the overall user experience, offering consumers a more convenient and comfortable driving environment.
