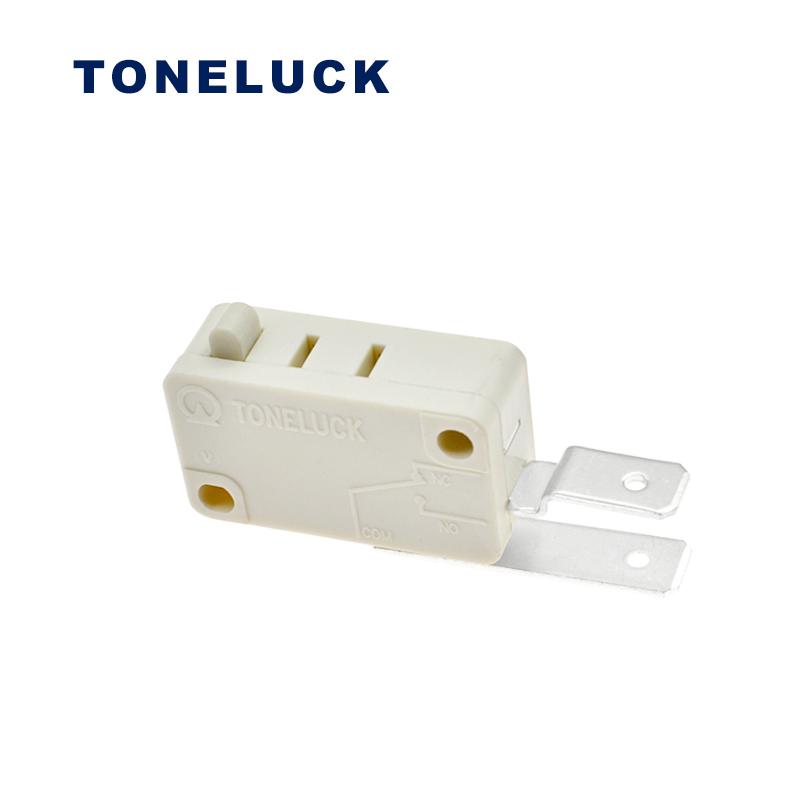

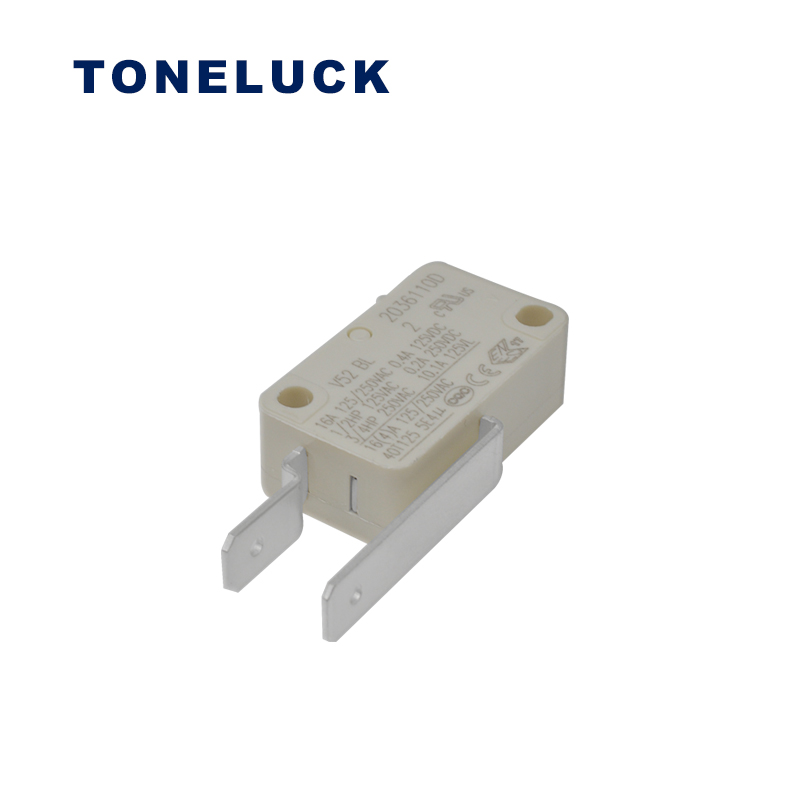

V5 Electronic Micro Switch Ordering Guide
Series Circuitry Operation Force Terminal Type Lever Position Lever Type Contact Plating
V52 A= SPDT K A A= Standard Position 01 AG = Serrated Silver Contact
V53 B= SPST-NC L B B= High Gear Position 02
C= SPST-NO M C N= Pin Plunger, No External Lever 03
N etc. (Ref. to E4-7) 00 = No Lever
P (Ref. to E4-7)
(Ref. to E4-7)
Specification
Series Temperature Rating Electrical Cycles (UL)  Electrical Cycles (UL)  Electrical Cycles (CQC)

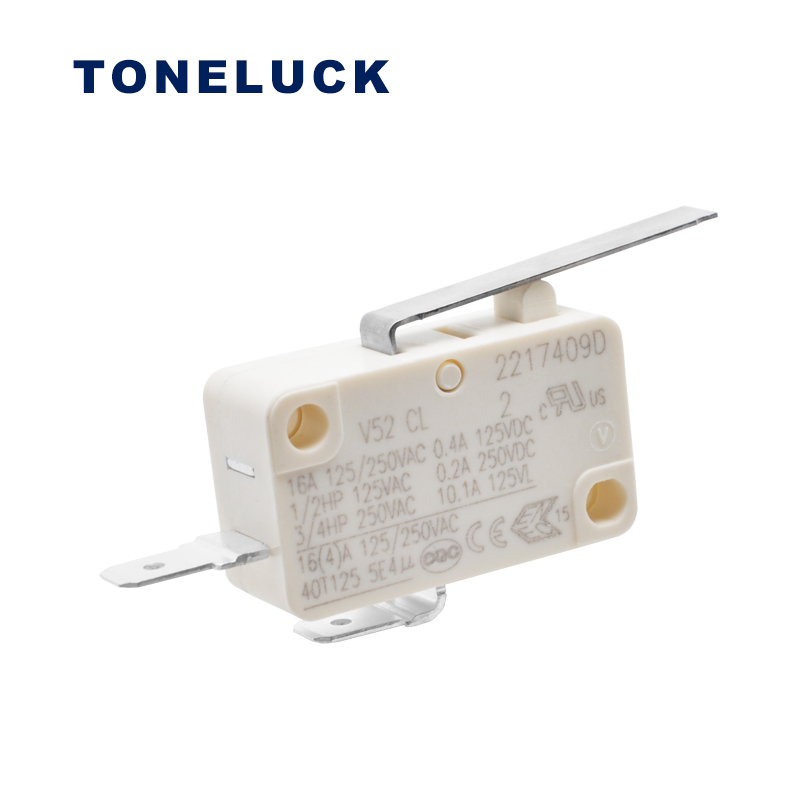

V52 40T125 16(4)A 125/250VAC 50,000 cycles 50,000 cycles
16A, 125/250V 6,000 cycles
1/2HP 125V 6,000 cycles
3/4HP, 250V 6,000 cycles
0.4 A, 125 V DC 6,000 cycles
0.2 A, 250 V DC 6,000 cycles
10.1A, 125VL 6,000 cycles +6,000 cycles
V53 40T85 22A 125/250VAC 6,000 cycles
1HP 125VAC; 2HP 250VAC 6,000 cycles
15.1A 125/250VAC 6,000 cycles
12A, 125VL 6,000 cycles +6,000 cycles
Mechanical Life 1,000,000 cycles min.
Contact Resistance 50mΩ max. initial
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 +/- 5 sec
Housing UL 94V-0 Thermoplastic IEC 60335-1 Ed 4 Compliant
Contact Plating Serrated Silver Contact
