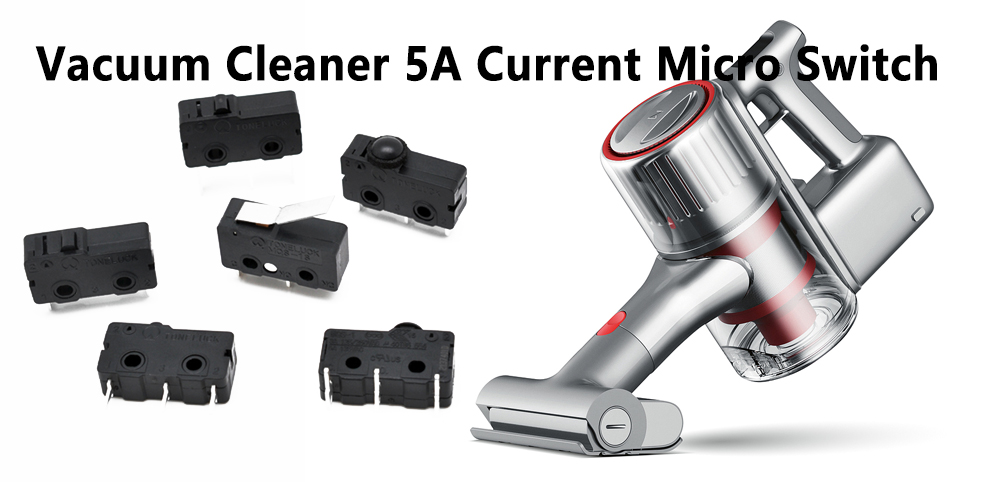

Vacuum Cleaner 5A Current Micro Switch

The role of 5A current micro switch in vacuum cleaners

The function of the 5A current micro switch in the vacuum cleaner is to realize electrical control of starting and stopping the vacuum cleaner. It is usually integrated into the operating button of the vacuum cleaner and is used to control the power on and off state. The 5A current micro switch plays a key electrical control role in vacuum cleaners, allowing users to conveniently start and stop the vacuum cleaner while ensuring the safety and energy efficiency of the equipment.

The 5A current micro switch has enough current rating to meet the electrical needs of the vacuum cleaner. In this case, the current rating should be 5 amps. The rated voltage of the 5A current micro switch meets the power supply voltage requirements of the vacuum cleaner to avoid the risk of electric shock or equipment damage.

According to the circuit requirements of the vacuum cleaner, select the appropriate contact form and the contact material of the 5A current micro switch to ensure that it can maintain good conductivity and durability under 5A current. Generally, silver alloy is a common contact material. The 5A current micro switch has sufficient durability to meet the life requirements of the vacuum cleaner under normal use conditions. Durability is especially important considering the frequent starts and stops of the vacuum cleaner.

If the vacuum cleaner is used in a humid or humid environment, choose a micro switch with waterproof or moisture-proof performance to ensure reliability. According to the design and space requirements of the vacuum cleaner, select the appropriate size and installation method of the 5A current micro switch. Make sure to connect the 5A current micro switch correctly to avoid electrical contact issues.

1. Start and stop control

The 5A current micro switch is usually connected to the start button of the vacuum cleaner. When the start button of the vacuum cleaner is pressed, the 5A current micro switch closes and conducts current to start the vacuum cleaner. When the button is released, the microswitch opens, interrupting the current and stopping the vacuum cleaner. Micro switches play a key role in start and stop control. It is usually used as a switch in electrical systems to control the start and stop status of equipment. The user presses the start button on the vacuum cleaner, which is usually connected to a 5A current microswitch. 5A current microswitch closure control The pressing of the start button causes the contacts of the 5A current microswitch to close, forming a circuit path. The closing of the 5A current microswitch causes current to flow from the power supply to the vacuum cleaner’s motor or control circuit, starting the vacuum cleaner.

The passage of the starting current of the vacuum cleaner causes the motor of the vacuum cleaner to start running, thus starting the vacuum cleaner. The user releases the start button, causing the contacts of the microswitch to open. The release of the start button causes the contacts of the microswitch to open, interrupting the circuit path. The disconnection of the micro switch prevents current from flowing to the motor or control circuit of the vacuum cleaner, stopping the motor from running. Due to the interruption of the circuit, the motor of the vacuum cleaner stops running, realizing the stop of the vacuum cleaner.

Such a start and stop control mechanism enables the user to control the operating status of the device by simply pressing and releasing the button. The design of the micro switch enables it to respond quickly and reliably to user operations, ensuring smooth start and stop processes.

2. User interface of vacuum cleaner

Microswitches provide a direct interface between the user and the vacuum cleaner. By pressing or releasing the button, the user can conveniently control the working status of the vacuum cleaner. The user interface of a vacuum cleaner refers to the part where users interact with the vacuum cleaner, usually including control buttons, indicator lights and other elements. User interface design directly affects the user’s experience and ease of operation of the vacuum cleaner.

Vacuum cleaners are usually equipped with a start button that the user presses to start the work of the vacuum cleaner. In addition to the start button, there is also a stop button that the user presses to stop the vacuum cleaner from working. Used to indicate whether the vacuum cleaner is in working condition. Usually, green means working and red means stopped.

Premium vacuum cleaners may have a power adjustment button that allows the user to adjust the vacuum’s power or suction. The vacuum cleaner is equipped with a replaceable air filter, and there may also be an indicator light on the user interface to remind the user when the filter needs to be replaced. The vacuum cleaner is rechargeable, and the charging indicator light can indicate the charging status and completion of charging.

The vacuum cleaner is battery powered and may have a battery indicator light that shows the current battery level. The handle grip is designed with ergonomics to make users more comfortable when using the vacuum cleaner. Premium vacuum cleaners may have touch screens that offer more operating options and information displays. Vacuum cleaners may come with a remote control that allows the user to control the vacuum cleaner’s functions from a distance.

3. Suction adjustment knob

The vacuum cleaner may be equipped with an adjustable suction knob that allows users to adjust the suction strength of the vacuum cleaner for different cleaning needs. The suction adjustment knob is a control element on the vacuum cleaner that allows the user to adjust the suction strength of the vacuum cleaner according to the cleaning needs. This knob is usually located on the control panel of the vacuum cleaner, and users can change the suction level of the vacuum cleaner by turning it.

The main function of the suction adjustment knob is to allow the user to adjust the suction level based on the surface being cleaned or the specific tasks of the vacuum cleaner. This is useful for achieving optimal results on different surfaces or uses of the vacuum cleaner. Users usually adjust the suction power by rotating the suction power adjustment knob. The knob may be designed to rotate continuously or in stages to provide finer suction control.

The suction adjustment knob on some vacuum cleaners may have a scale or markings that show various suction levels. Such a design helps users accurately select the desired suction setting. The suction power adjustment knob of the vacuum cleaner can play a role in different scenarios. For example, for heavy carpets, users may choose higher suction power, while on hard floors, lower suction power may be more appropriate.

Designing with user-friendliness in mind is key. The rotation of the suction adjustment knob should be smooth and easy to operate, and markings or indications on the knob should be clearly visible to allow the user to easily select the suction setting. The suction adjustment knob on the vacuum cleaner provides a more flexible cleaning experience, allowing users to adjust the performance of the vacuum cleaner according to actual conditions, improving cleaning results and extending the service life of the vacuum cleaner.

4. Safety of vacuum cleaners

Micro switches are also designed with safety in mind. When the user is not using the vacuum cleaner, the power is disconnected by releasing the button and micro switch to prevent unnecessary waste of power or potential safety risks. Vacuum cleaner safety is very important, especially since it involves electrical components, moving parts, possible chemical emissions, and more.

Electrical components inside the vacuum cleaner are properly insulated and have proper grounding to reduce the risk of electric shock. Power cords should be sturdy to avoid damage and comply with electrical safety standards. Equipment casings and mechanical parts should be designed so that moving parts are not easily accessible to users to reduce accidental injuries.

The vacuum cleaner may be equipped with a safety lock feature to ensure that the vacuum cleaner is always safe during use. Vacuum cleaners should be equipped with a thermal protector to prevent overheating during prolonged use or failure and reduce the risk of fire.

Vacuum cleaners are equipped with filters, and it is best to choose a high-efficiency air particulate filter to improve air quality. Vacuum cleaners should comply with applicable emission standards to prevent the release of hazardous substances, especially for special purpose vacuum cleaners that include filtration and collection of hazardous substances.

Charging circuitry should include overcharge protection to prevent battery damage and safety risks. Use a charger that complies with relevant safety standards to ensure the safety of battery charging. Operation buttons should be easy to use and not prone to misoperation. Provides clear indicator lights so users can understand the status of the vacuum cleaner, such as power status, battery level, etc.

Provide clear and easy-to-understand instructions for users to understand how to use the vacuum cleaner correctly and safely. Mark warning signs at appropriate locations to remind users to pay attention to safety matters, such as avoiding inhalation of liquids, power interruption during cleaning, etc. Use sturdy and durable materials to ensure a long life of the vacuum cleaner under normal usage conditions.

5. Energy saving and life extension

Controlling start and stop with a micro switch can effectively save power and extend the life of the vacuum cleaner. A micro switch ensures that the vacuum cleaner is powered off when it is not in use. The microswitch is tightly integrated with the vacuum cleaner’s control circuit. It usually works together with other electronic components, such as power regulators, motor controllers, etc., to optimize the overall performance of the vacuum cleaner.

In the design and use of vacuum cleaners, achieving energy saving and extending life are important goals. When selecting or designing a vacuum cleaner, using an efficient motor design can reduce energy consumption and improve energy efficiency. Equipped with a suction power adjustment function, users can choose the appropriate suction power according to their cleaning needs to avoid unnecessary energy consumption. Integrated intelligent power management system can automatically enter energy-saving mode or shut down when not in use.

The vacuum cleaner is equipped with a lighting function, choosing to use energy-efficient LED lights instead of traditional incandescent lights. Adopt advanced circuit design to reduce resistance and improve circuit efficiency to reduce energy consumption. Regularly clean or replace the filter system of the vacuum cleaner to ensure smooth air circulation, reduce motor load, and extend motor life.

Avoid overuse of your vacuum cleaner and follow the manufacturer’s recommended frequency of use to reduce wear and tear on the equipment. Clean the outside and inside of your vacuum cleaner regularly to prevent dust and debris from accumulating and affecting the performance and life of the equipment. When storing your vacuum cleaner, make sure it is in a suitable environment and protected from moisture, heat or cold.

Avoid stretching or damaging the vacuum cleaner’s power cord to avoid affecting the electrical connection and service life. Avoid overloading the vacuum cleaner, such as inhaling large particles or using it in an unsuitable environment. Regularly conduct comprehensive inspections and maintenance of the vacuum cleaner, repair or replace damaged parts, and ensure normal operation of the equipment. Avoid inhaling liquids, sharp objects, or substances that may damage the equipment inside the vacuum cleaner.

6. Integrated design of vacuum cleaner

Integrated design refers to taking each component, function and system into consideration during the product design stage to make the overall performance of the vacuum cleaner more superior, the appearance more compact, and easier to use and maintain. Micro switches are usually designed to be small and simple in structure, making them easy to integrate into the casing of the vacuum cleaner, making the entire device more beautiful in appearance.

The integrated design is designed to create a compact, streamlined appearance, making the vacuum more visually appealing and easy to store. Integrate various functions into one design such as vacuuming, filtering, adjusting suction, storing accessories and more to improve overall performance and convenience.

The design emphasizes the collaborative work of each part, making the entire vacuum cleaner structure more integrated and reducing the use of loose parts and components. When designing a vacuum cleaner, user experience must be considered, ensuring that the handle, buttons, controllers, etc. are ergonomic to improve user comfort.

The integrated design reduces internal friction and vibration, which can effectively reduce the noise level of the vacuum cleaner and improve the user experience. When designing a vacuum cleaner, ease of maintenance should be taken into consideration, such as easy removal and cleaning of the filter, cleaning of the storage box, etc. The integrated design should allow for the customizability of some parts and functions of the vacuum cleaner to meet the needs of different users.

Integrate high-efficiency motors, intelligent power management systems, etc. to achieve energy-saving design of vacuum cleaners. Choose durable, environmentally sustainable materials to ensure your vacuum cleaner remains stable and reliable over the long term. Utilize the latest technologies, such as intelligent control, wireless connection, etc., to improve the performance and intelligence of the vacuum cleaner.

How to use microswitches to control the functions of your vacuum cleaner

The ability to control your vacuum cleaner using a microswitch allows you to start or stop the vacuum cleaner when the button is pressed or released. Make sure the selected micro switch has an ampere and voltage rating that meets the requirements of the vacuum cleaner. You want to control the vacuum cleaner. Connect the positive lead of the power supply to the end on the microswitch.

Connect the negative lead of the power supply to the vacuum cleaner’s power input.

Connect the Micro Switch Connect the other end of the micro switch to the power input of the vacuum cleaner. Make sure the microswitch contacts are closed before releasing the button. Connect the button part of the micro switch through the control wire. Connect one end of the control wire to the button of the microswitch. Connect the other end of the control wire to the negative terminal of the power supply.

Press the micro switch button and observe whether the vacuum cleaner starts. Release the micro switch button and observe whether the vacuum cleaner stops. Make sure all power is disconnected when making electrical connections to ensure safety. In addition, depending on the specific specifications of the vacuum cleaner and micro switch, it may be necessary to further adjust the connection method or add auxiliary components to suit the actual situation.
