The Vending Machine Micro Switch with a 2-pin configuration and “off-on” function is a type of electrical switch commonly used in vending machines and various other applications. A micro switch, also known as a snap switch or a micro switch, is a switch that is sensitive to very slight physical motion or pressure changes. It has a small actuator that, when pressed or released, triggers the switch to change its state.
1. 2-Pin Configuration
The “2-pin” configuration refers to the number of electrical connections or terminals on the micro switch. In this case, the micro switch has two pins or terminals for making electrical connections.
2. “OFF-ON” Functionality
The “OFF-ON” functionality means that the micro switch has two states: an “OFF” state and an “ON” state. When the switch’s actuator is not pressed or in its normal position, it’s in the “OFF” state. Pressing the actuator changes the state to “ON,” completing the electrical circuit and allowing current to flow.
In the context of a vending machine, this type of microswitch could be used for various purposes, such as detecting the position of a vending machine door or checking if a product has been dispensed. For instance, the microswitch could be placed in a location where the door of the vending machine comes into contact with the actuator when the door is closed. This would help the vending machine’s control system determine whether the door is properly closed or if it has been opened.
The “OFF-ON” action of the microswitch could be used to send a signal to the vending machine’s electronics, indicating that a particular condition (like the door being closed) has been met. This type of microswitch is valued for its reliability, compact size, and ability to provide a clear and definite change in state with even a small amount of movement.
Functional application of vending machine
Vending machines are automated devices that dispense a wide range of products to customers without the need for human intervention. They have a variety of functional applications in different settings, offering convenience and accessibility to consumers. Here are some common functional applications of vending machines:
Snack and Beverage Vending
This is one of the most well-known applications of vending machines. Snack and beverage vending machines offer a variety of snacks, drinks, and refreshments such as chips, chocolates, sodas, water, and juices.
Food Vending
Vending machines can provide ready-to-eat food items, including sandwiches, salads, wraps, fruit cups, and microwavable meals. These machines are often found in workplaces, schools, airports, and other locations where people need quick meals.
Coffee and Hot Beverage Vending
Coffee vending machines dispense a variety of hot beverages, including coffee, tea, hot chocolate, and specialty drinks. These machines are popular in offices, waiting areas, and public spaces.
Ice Cream and Frozen Treats
Vending machines offering ice cream and frozen desserts are commonly found in amusement parks, recreational areas, and tourist attractions.
Health and Wellness Products
Some vending machines offer health-focused products such as vitamins, supplements, protein bars, and hygiene items like hand sanitizers and face masks.
Personal Care Items
Vending machines in restrooms or public areas might offer personal care items like toiletries, feminine hygiene products, and travel-sized essentials.
Electronics and Accessories
Vending machines can provide small electronic items like phone chargers, headphones, and batteries.
Entertainment and Media
Vending machines may dispense DVDs, books, magazines, or even digital download codes for music and movies.
Office Supplies
Vending machines in office environments might offer stationery, writing tools, and office essentials.
Automotive Supplies
Some vending machines are equipped with car-related products like tire inflators, air fresheners, and windshield wipers.
PPE (Personal Protective Equipment)
Particularly relevant in the context of the COVID-19 pandemic, vending machines have been used to distribute face masks, gloves, and sanitizing products.
Prescription Medication
In some regions, vending machines have been introduced to dispense prescription medications, making it more convenient for patients to access their prescribed drugs.
Toys and Novelties
Vending machines can provide small toys, collectibles, and novelty items, often found in shopping malls and entertainment centers.
Event and Ticketing
Vending machines can sell tickets for various events, transportation services, or access to tourist attractions.
The functional applications of vending machines are continually evolving, driven by technological advancements and changing consumer needs. They offer a convenient and efficient way for businesses to reach customers and provide products or services in a wide range of locations.
In practical applications, a micro switch with an “OFF-ON” functionality could be used to detect the presence or absence of an object, limit the movement of a mechanical component, or signal the activation of a specific function.

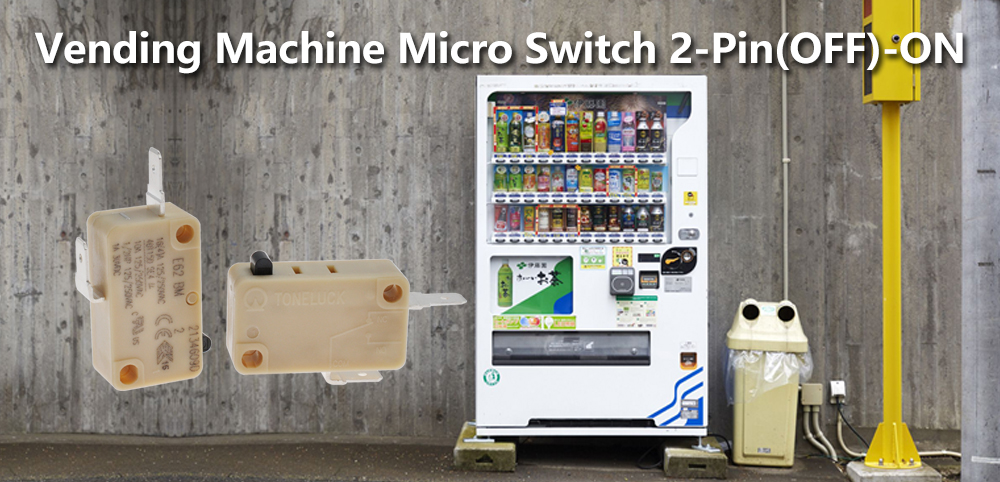

Micro switch 2-Pin(OFF)-ON
In a Vending machine, a micro-switch could be placed near the door to detect whether the door is closed (OFF state) or open (ON state).
In a washing machine lid, a micro switch could determine if the lid is securely closed (OFF state) or open (ON state), ensuring that the machine only operates when the lid is closed.
In a home automation system, a micro switch could be used to trigger the lights to turn on (ON state) when a door is opened and turn off (OFF state) when the door is closed.
Microswitches are versatile components used in various industries, including appliances, automotive, industrial machinery, electronics, and more. Their small size, reliability, and clear “snap-action” switching behavior make them suitable for applications where precise and consistent switching is required.
