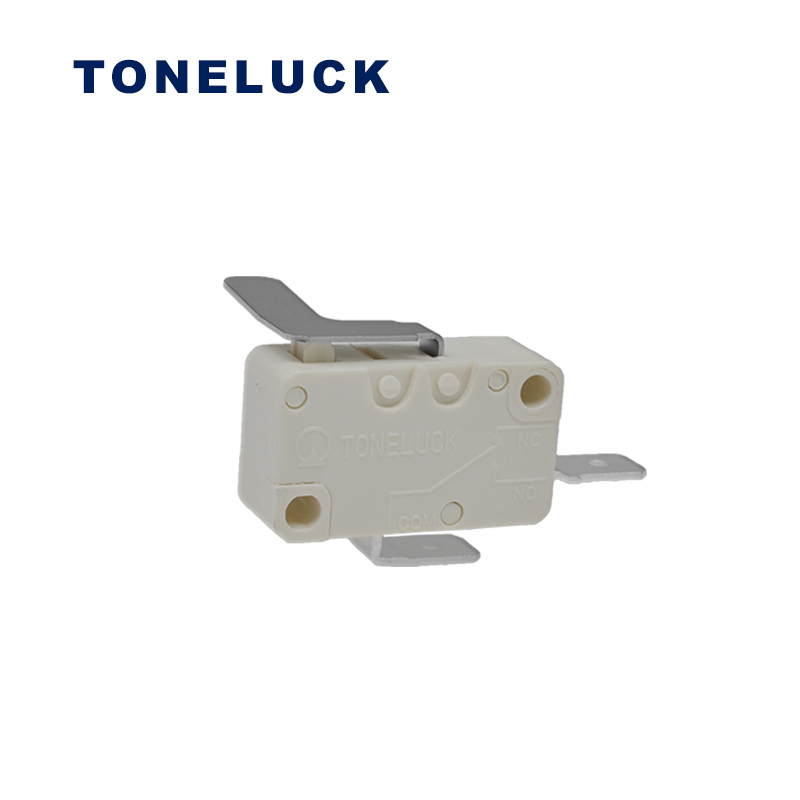

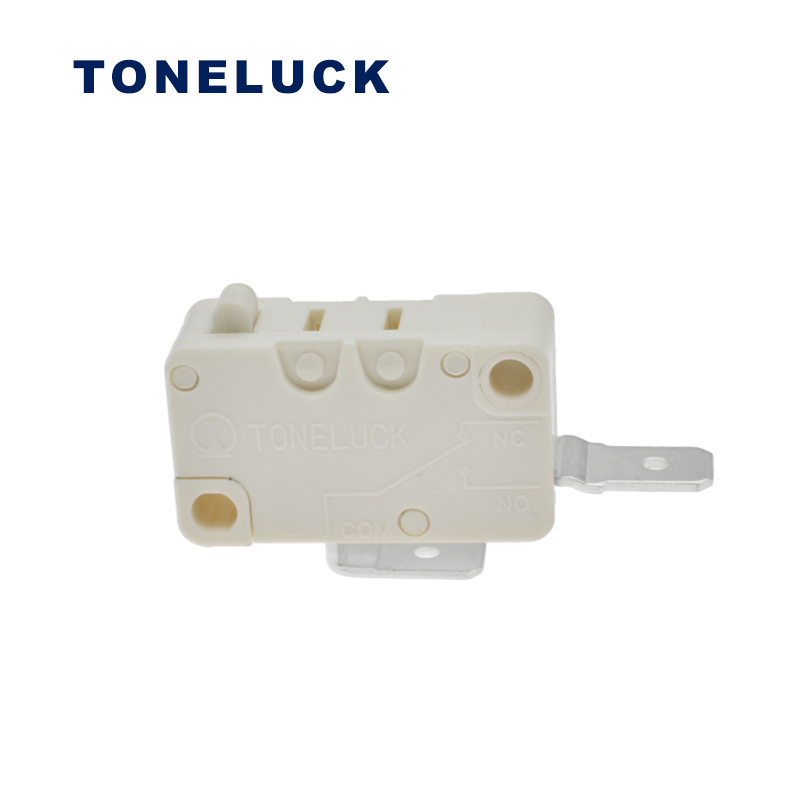

X Snap Action Switch Ordering Guide
Series Circuitry Operation Force Terminal Type Lever Position Lever Type Contact Plating
X11 A= SPDT L, 100+/-25 gf 01= 6.3×0.8 A= Standard Position 01 AG = Serrated Silver Contact
X12 B= SPST-NC M,160+/-30 gf 02= 4.8×0.5 B= High Gear Position 02
X21 C= SPST-NO 03= Solder Terminal N= Pin Plunger, No External Lever 03
X22 04= Screw Terminal 00 = No Lever
05= PCB Terminal-Right (Ref. to E4-7)
06= PCB Terminal-Left
07= 4.8×0.8
07= 4.8×0.8 Terminal
Specification
Series Temperature Rating Electrical Cycles (UL) Electrical Cycles (ENEC) Electrical Cycles (CQC)
X11 40T125 6(3)A 125/250VAC 50,000 cycles 50,000 cycles
0.1A 125/250VAC 50,000 cycles 50,000 cycles
0.1A 125/250Vac 6,000 cycles
6A 125/250Vac 6,000 cycles
X21 1/6HP 125Vac 6,000 cycles
1/3HP 250Vac 6,000 cycles
X12 40T125 10.1A, 125VL 6,000 cycles +6,000 cycles
V53 16(4)A 125/250VAC 6,000 cycles 50,000 cycles 50,000 cycles
16.1A 125/250Vac 6,000 cycles
1/2HP 125Vac 6,000 cycles
3/4HP 250Vac 6,000 cycles
0.2A 250VDC 6,000 cycles
0.4A125VDC 6,000 cycles
Mechanical Life 1,000,000 cycles min.
Contact Resistance 50mΩ max. initial
Insulation Resistance 100ΩM Min.
Dielectric Strength 1500VAC for 55 +/- 5 sec
Housing UL 94V-0 Thermoplastic
X11, X12 Meet IEC 60335-1 Ed 4 Compliant
X21, X22 Can’t Meet IEC 60335-1 Ed 4 Compliant
